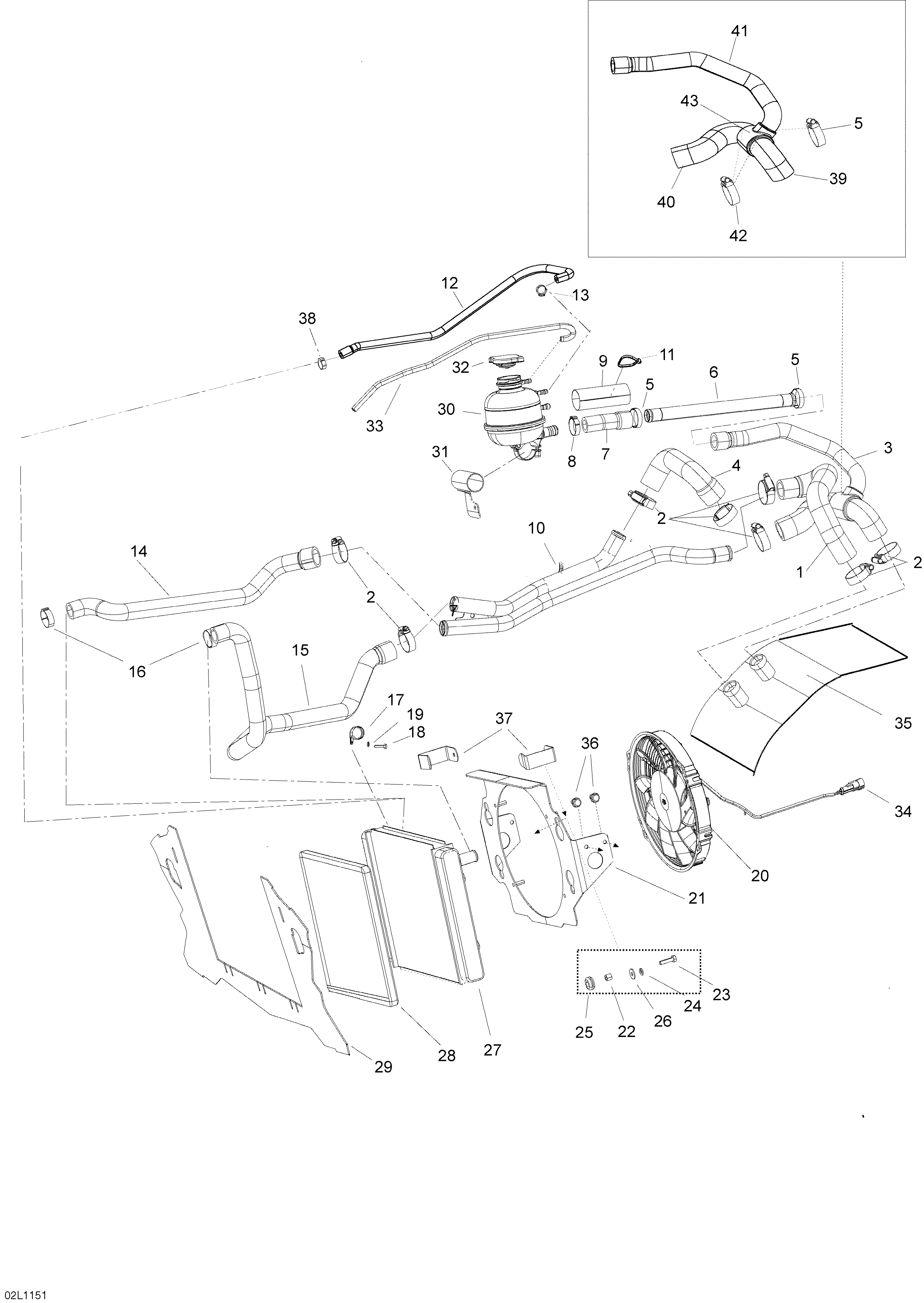

01- Cooling System для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1509000762 Hose, Front Air Rad->Tunnel RadHose, Front Air Rad->Tunnel Rad
-
2509000443 Aba Gear ClampAba Gear Clamp
-
4509000564 Engine Outlet HoseEngine Outlet Hose
-
5293650099 Oetiker Gear ClampOetiker Gear Clamp
-
6509000644 PipePipe
-
7509000698 HoseHose
-
8509000442 Gear ClampGear Clamp
-
9509000730 Protector Tube 31.75 Mm - 90mmProtector Tube 31.75 Mm - 90mm
-
10509000629 Water PipeWater Pipe
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12509000750 Breather HoseBreather Hose
-
13293650047 Grimp ClampGrimp Clamp
-
14509000707 Hose, Front Air Rad->Tunnel RadHose, Front Air Rad->Tunnel Rad
-
15509000706 Hose, Engine->Air RadHose, Engine->Air Rad
-
16293650099 Oetiker Gear ClampOetiker Gear Clamp
-
17605627008 Clamp With Rubber D=30Clamp With Rubber D=30
-
18207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1920052 WasherWasher
-
20509000547 Cooling FanCooling Fan
-
21509000791 Radiator supportRadiator support
-
22605453745 BushingBushing
-
23207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
2420052 Washer-lockWasher-lock
-
25293720053 GrommetGrommet
-
26234062410 Flat Washer 6 mmFlat Washer 6 mm
-
27509000787 RadiatorRadiator
-
28509000718 InsulationInsulation
-
29509000784 Air Deflector LtsAir Deflector Lts
-
30509000421 Coolant TankCoolant Tank
-
31509000782 Tank SupportTank Support
-
32509000180 Pressure CapPressure Cap
-
33276000048 Hose 6 mmHose 6 mm
-
34278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
35509000645 Radiator TunnelRadiator Tunnel
-
3640870 ScrewScrew
-
37509000703 Deflector ClipDeflector Clip
-
38293650053 Crimp ClampCrimp Clamp
-
39509000828 Hose - Tunnel Rad - T-FittingHose - Tunnel Rad - T-Fitting
-
40509000829 Hose - T-Titting - Coolant pumpHose - T-Titting - Coolant pump
-
41509000830 Hose - T-Titting - Coolant TankHose - T-Titting - Coolant Tank
-
42509000529 Oetiker Gear ClampOetiker Gear Clamp
-
43509000372 T-FittingT-Fitting
