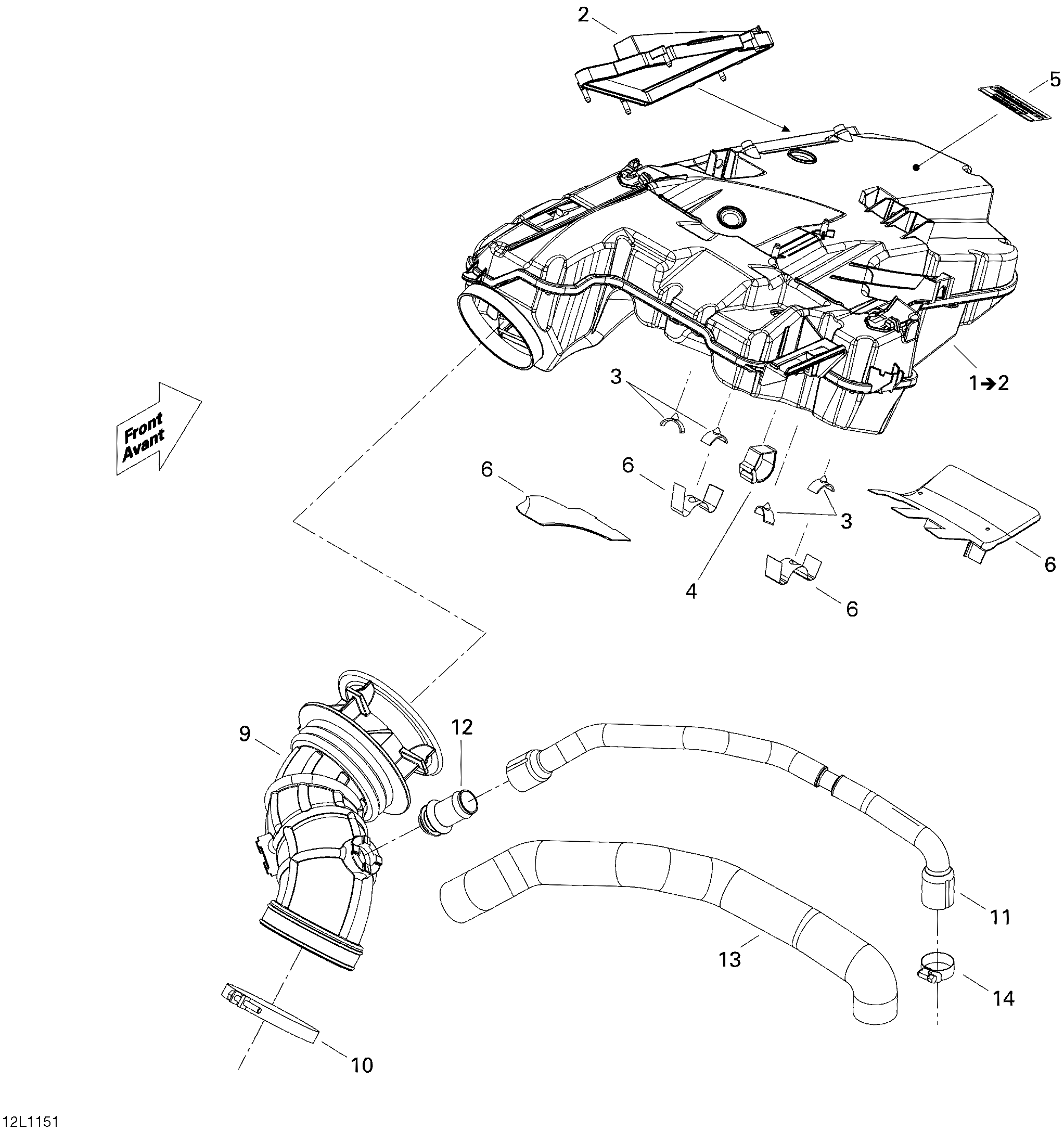

02- Air Intake System для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1508000690 Secondaire Chamber Ass'ySecondaire Chamber Ass'y
-
2508000609 Air FilterAir Filter
-
3508000537 StopperStopper
-
4508000532 Strip VelcroStrip Velcro
-
5516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
644001 Reflective Sheet (1m X 1m)Reflective Sheet (1m X 1m)
-
9508000719 Hose-IntakeHose-Intake
-
10293650212 ClampClamp
-
11508000647 Formed Vent HoseFormed Vent Hose
-
12273000234 BreatherBreather
-
13508000648 Tube IsolatorTube Isolator
-
14293650172 Tridon Gear ClampTridon Gear Clamp
