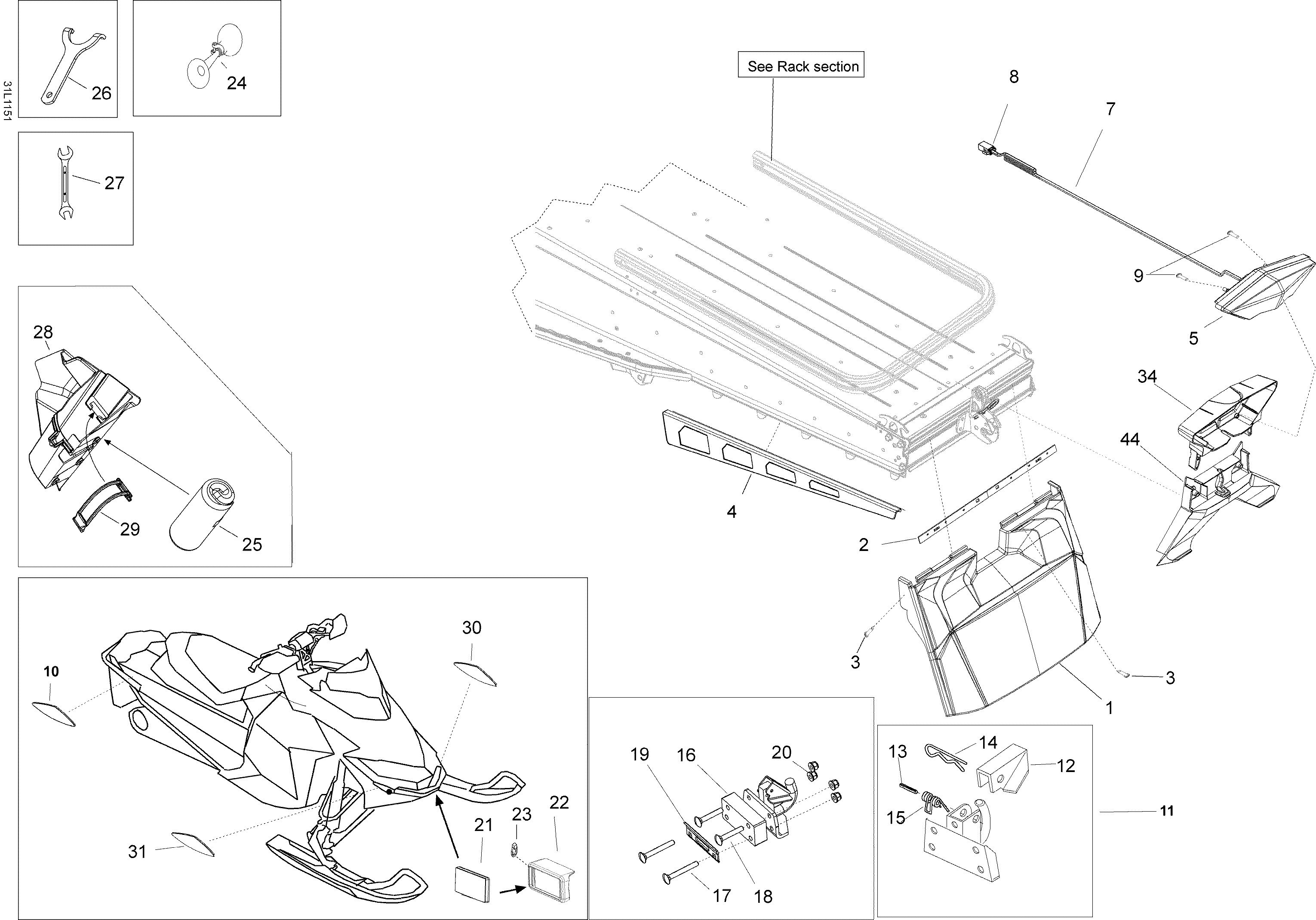

09- Utilities для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1520001067 Snow guardSnow guard
-
2520001021 Screw PlateScrew Plate
-
3732600030 ScrewScrew
-
4520000693 RH ProtectorRH Protector
-
4520000694 LH ProtectorLH Protector
-
5520000692 Rear lightRear light
-
7520000849 Rear Wiring HarnessRear Wiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
940611 Screw plastofaxScrew plastofax
-
10705002423 Front Lateral Reflector, AmberFront Lateral Reflector, Amber
-
115344156 Hitch ass'yHitch ass'y
-
125440767 LockLock
-
1341012 PinPin
-
1441029 Hair pinHair pin
-
15545693 SpringSpring
-
16605351510 SpacerSpacer
-
17207786544 Carriage Bolt M8 X 65Carriage Bolt M8 X 65
-
18207785044 Carriage Bolt M8 X 50Carriage Bolt M8 X 50
-
19520000727 PlatePlate
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2121118 Reflector (Bright)Reflector (Bright)
-
22520000871 Reflector SupportReflector Support
-
2327120 Tie rapTie rap
-
24549011291 HornHorn
-
25529000055 Tool KitTool Kit
-
26529035582 Adjustment WrenchAdjustment Wrench
-
2734017 WrenchWrench
-
28520000720 Tool Kit RackTool Kit Rack
-
29520000528 LatchLatch
-
30520000844 LH ReflectorLH Reflector
-
31520000843 RH ReflectorRH Reflector
