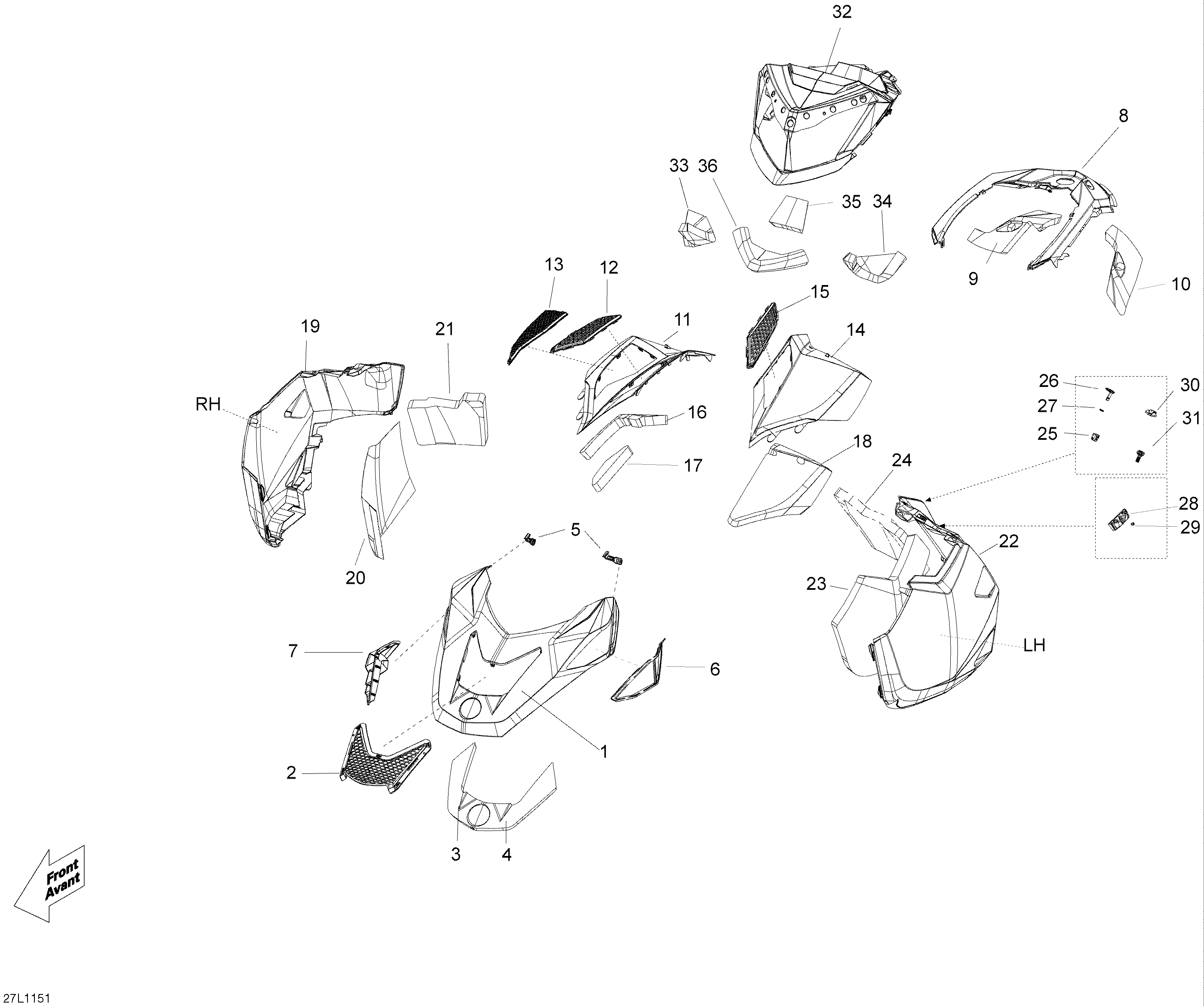

09- Hood для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1517304810 HoodHood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 Latch PannelLatch Pannel
-
6508000609 Air FilterAir Filter
-
7517304155 Scoop GrillScoop Grill
-
8517304820 ConsoleConsole
-
9517304318 InsulatorInsulator
-
10517304317 InsulatorInsulator
-
11517304831 R.H. Upper Side panelR.H. Upper Side panel
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Acces GrillRH Lower Acces Grill
-
14517304841 L.H. Upper Side panelL.H. Upper Side panel
-
15517303893 LH Access Panel GrillLH Access Panel Grill
-
16517304311 InsulatorInsulator
-
17517304312 InsulatorInsulator
-
18517304313 InsulatorInsulator
-
19517304328 Side Panel-RhSide Panel-Rh
-
20517304709 Foam RightFoam Right
-
21517304310 RH Rear FoamRH Rear Foam
-
22517304329 Side Panel-LHSide Panel-LH
-
23517304707 Foam LHFoam LH
-
24517304309 LH Rear FoamLH Rear Foam
-
25517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
26517304296 Quarter-Turn HandleQuarter-Turn Handle
-
27517304538 Locking PlateLocking Plate
-
28517304497 Side Panel SupportSide Panel Support
-
2936005 RivetRivet
-
30860200239 Black Latch KitBlack Latch Kit
-
31517304573 Latch-PanelLatch-Panel
-
32517304272 Indicator SupportIndicator Support
-
33517304315 InsulatorInsulator
-
34517304316 InsulatorInsulator
-
35517304319 InsulatorInsulator
-
36517304319 InsulatorInsulator
