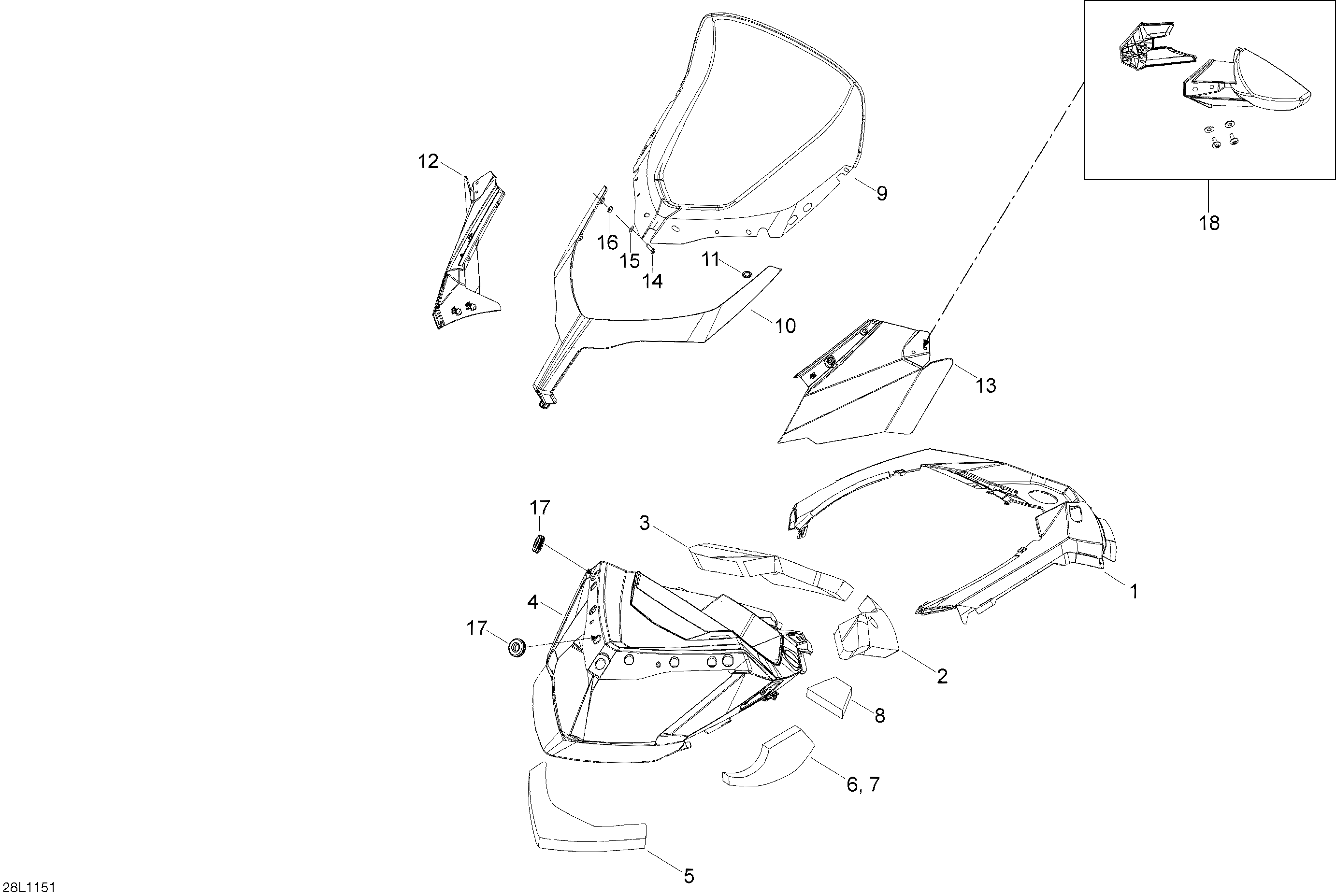

09- Windshield and Console для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1517304820 ConsoleConsole
-
2517304317 InsulatorInsulator
-
3517304318 InsulatorInsulator
-
4517304272 Indicator SupportIndicator Support
-
5517304314 InsulatorInsulator
-
6517304315 InsulatorInsulator
-
7517304316 InsulatorInsulator
-
8517304319 InsulatorInsulator
-
9517304287 High WindshieldHigh Windshield
-
10860200230 Windshield Support KitWindshield Support Kit
-
11732610072 Push NutPush Nut
-
12517303745 RH Console Air DeflectorRH Console Air Deflector
-
13517303746 LH Console Air DeflectorLH Console Air Deflector
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15250200025 Washer M5Washer M5
-
16250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
17517303756 GrommetGrommet
-
18517304628 Mirror RH/LHMirror RH/LH
