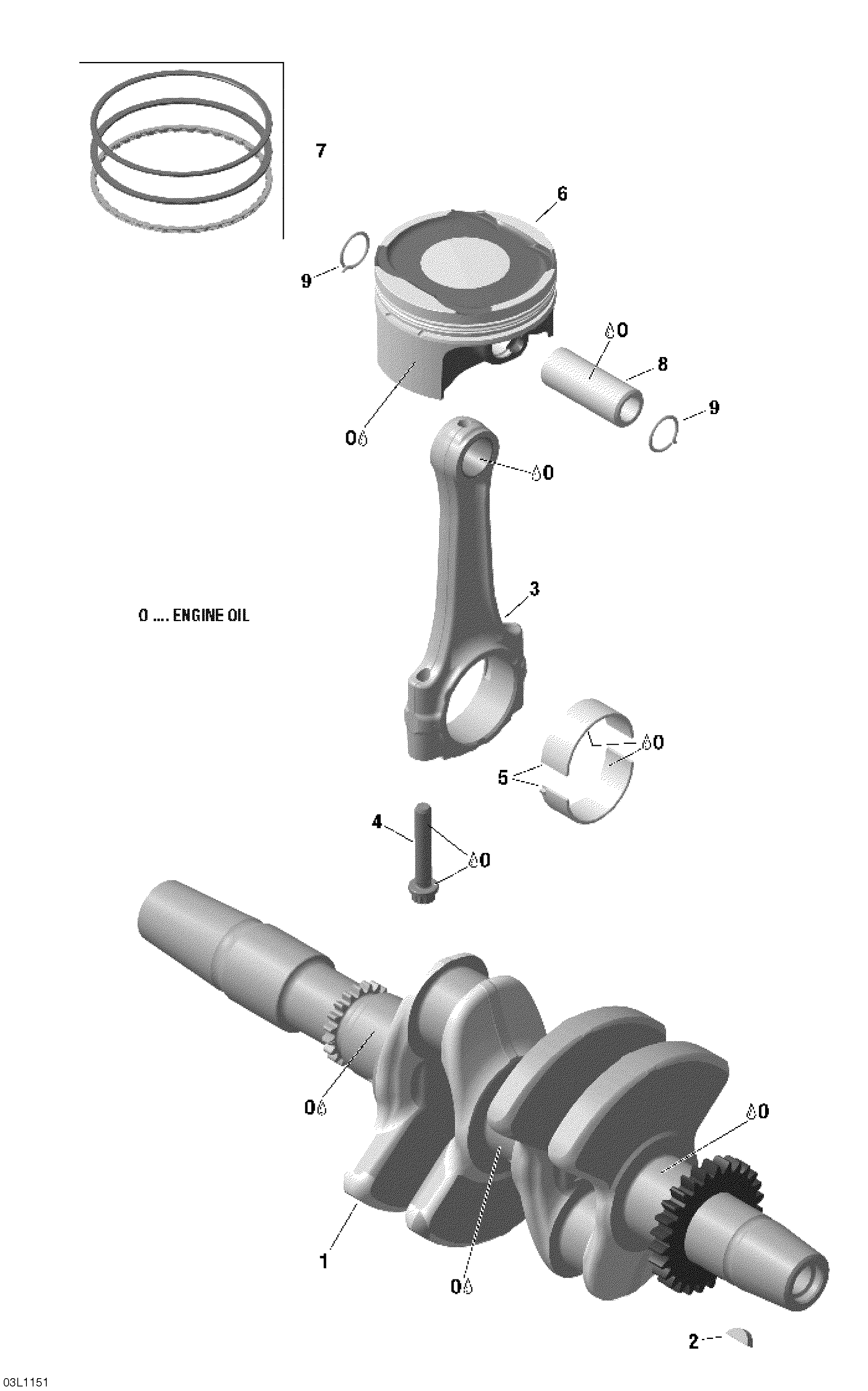

01- Crankshaft, Pistons And Balance Shaft для BRP Lynx 59 YETI 600 ACE - 2011
![](/wa-data/public/shop/sheme/bombardier/lynx/8ec48c1e-5ba0-4be8-b6d1-e4c4833af7ef.png)
-
№АртикулНазвание
-
1-2420819765 Crankshaft Ass'yCrankshaft Ass'y
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3-4420917705 Connecting Rod Ass'yConnecting Rod Ass'y
-
4420641790 Connecting Rod Screw M7 X 1. TIGHTENING TORQUE 12NM +/- 2%. +70°+/- 5° ROTATION ANGLEConnecting Rod Screw M7 X 1. TIGHTENING TORQUE 12NM +/- 2%. +70°+/- 5° ROTATION ANGLE
-
5420933190 Plain BearingPlain Bearing
-
6-7420892821 Piston Ass'y, 73.958 mmPiston Ass'y, 73.958 mm
-
7420892824 Piston Ring SetPiston Ring Set
-
8420916510 Piston PinPiston Pin
-
9420845810 Piston Circlip. INCLUDED IN GASKET KITPiston Circlip. INCLUDED IN GASKET KIT
-
O293600112 Synthetic Oil 4T 12X1 L.Synthetic Oil 4T 12X1 L.
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
