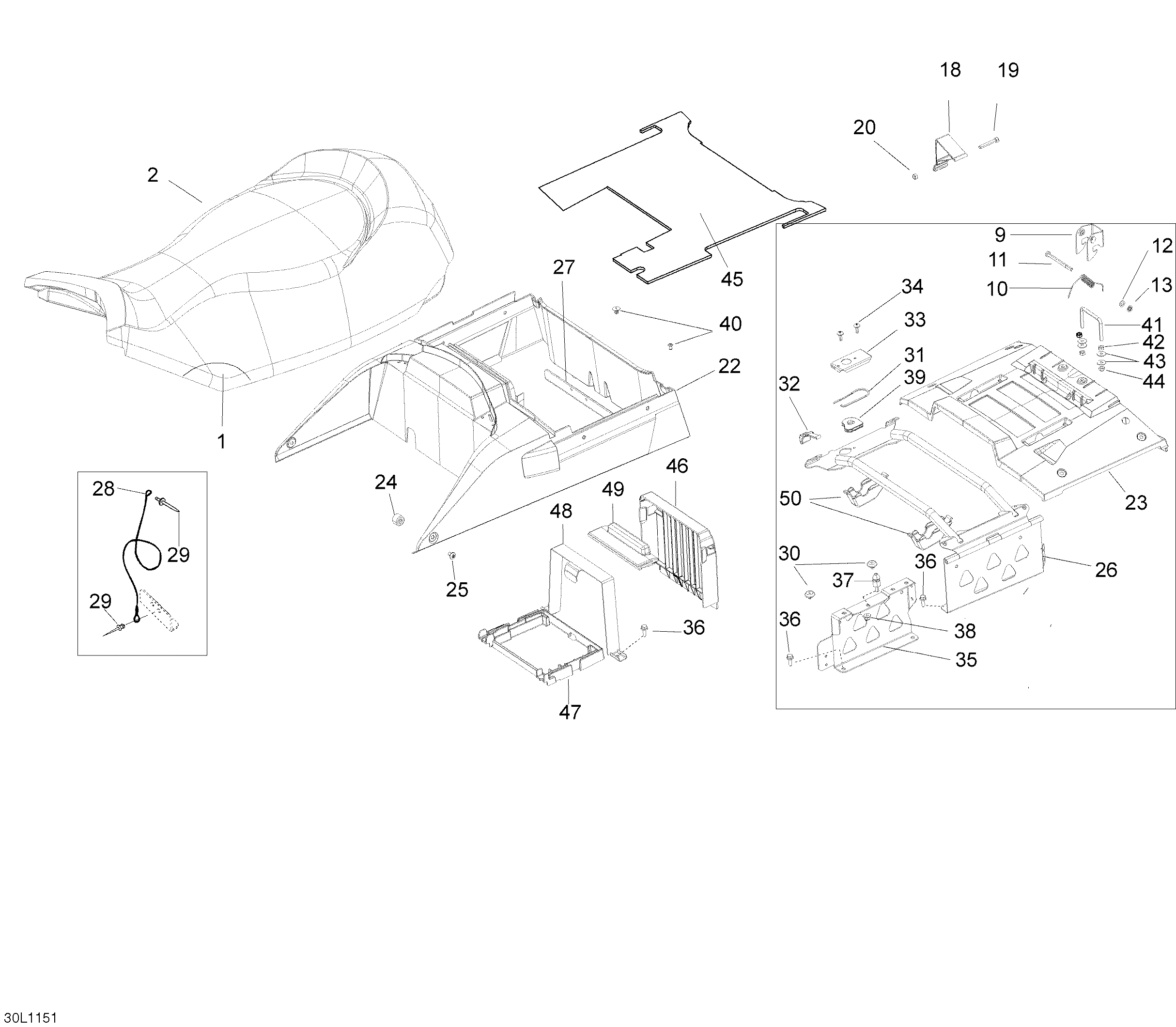

09- Seat для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1510005316 Seat Foam (GRAND)Seat Foam (GRAND)
-
2510005327 Front Cover SeatFront Cover Seat
-
9708000144 Latch, BlackLatch, Black
-
10708000922 SpringSpring
-
11207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
12732610072 Push NutPush Nut
-
13234061410 Flat Washer 6 mmFlat Washer 6 mm
-
18510005139 Security LockSecurity Lock
-
19205064044 Socket Screw HD.DIN.912Socket Screw HD.DIN.912
-
2033010 Elastic flanged nut M6Elastic flanged nut M6
-
22510004874 Storage Box XUStorage Box XU
-
23510005055 Cover- Storage Box XuCover- Storage Box Xu
-
24510005147 BushingBushing
-
25250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
26510004951 Fastening Tube PaintFastening Tube Paint
-
27510005156 Cable Support PlateCable Support Plate
-
28546777 Retainer cableRetainer cable
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30605452114 PlugPlug
-
31269700017 Latch SpringLatch Spring
-
32510005072 PullerPuller
-
33510005112 Lock Pin CoverLock Pin Cover
-
34732600030 ScrewScrew
-
35510004998 Locking Plate (Frame)Locking Plate (Frame)
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
37605452035 Lock PinLock Pin
-
38233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
39510005044 Lock Pin GuideLock Pin Guide
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41510004876 Fastener PinFastener Pin
-
42250000135 Hex. Nut M6Hex. Nut M6
-
4320117 WasherWasher
-
4433010 NutNut
-
45510005043 FoamFoam
-
46510005079 Battery CoverBattery Cover
-
47515176804 Battery SupportBattery Support
-
48510005250 Battery StrapBattery Strap
-
49605356094 Strap CoverStrap Cover
-
50510004999 CoverCover
