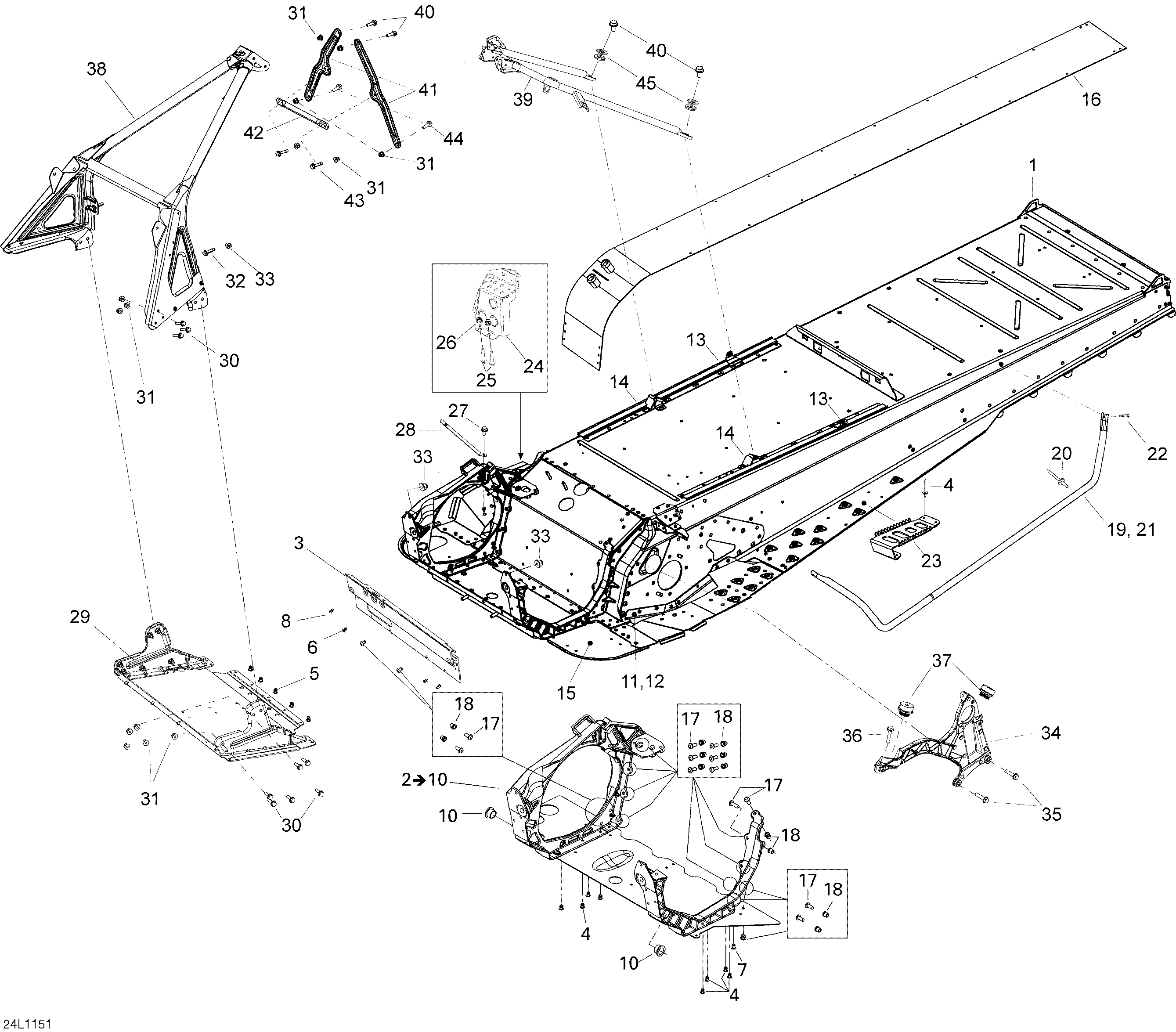

09- Frame для BRP Lynx 59 YETI 600 ACE - 2011
-
№АртикулНазвание
-
1518326517 Frame ass'y XUFrame ass'y XU
-
2518326518 E ModuleE Module
-
3518326140 Engine SupportEngine Support
-
4390909200 Avex RivetAvex Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
9390909100 Avex RivetAvex Rivet
-
10505072690 Leg CushionLeg Cushion
-
11518326439 Drive Axle Cover LHDrive Axle Cover LH
-
12518326440 Drive Axle Cover RHDrive Axle Cover RH
-
13518325987 Seat Box BracketSeat Box Bracket
-
14518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
14518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
15518325524 Frame Corner LHFrame Corner LH
-
15518325526 Frame Corner RHFrame Corner RH
-
16509000645 Radiator TunnelRadiator Tunnel
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19605254999 LH Footboard Support TubeLH Footboard Support Tube
-
20293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
21605255000 RH Footboard Support TubeRH Footboard Support Tube
-
22207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
23520000492 FootrestFootrest
-
24518326464 Toe Hook LHToe Hook LH
-
24518326465 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28514054616 Spring BracketSpring Bracket
-
29518326213 S ModuleS Module
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34518326143 LH BraceLH Brace
-
35207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
36207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
37512060295 Rubber MountRubber Mount
-
38518326754 Front Member Ass'yFront Member Ass'y
-
39518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
40207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
41518326151 Side Upper ColumnSide Upper Column
-
42518326355 Center Column SupportCenter Column Support
-
43250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
44250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
