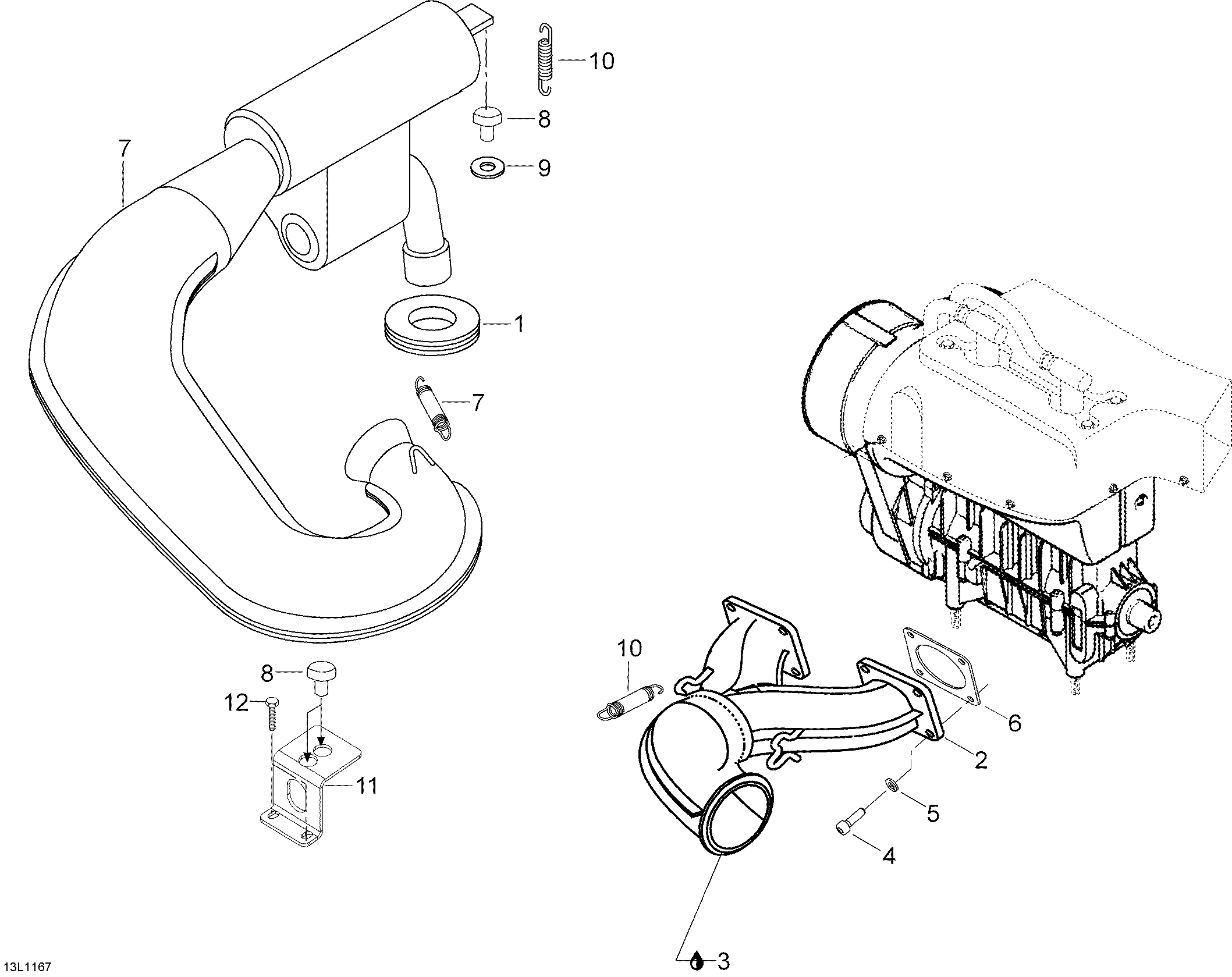

01- Exhaust System для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
1570039000 Exhaust GrommetExhaust Grommet
-
2420973512 Exhaust ManifoldExhaust Manifold
-
3293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
440135 Socket head screw M8 x 30Socket head screw M8 x 30
-
520014 Lock washer A8Lock washer A8
-
6420831849 Gasket 1.0 mmGasket 1.0 mm
-
7605155509 Tuned Pipe Ass'yTuned Pipe Ass'y
-
8514053654 Rubber BumperRubber Bumper
-
920087 Washer M14Washer M14
-
10420938795 SpringSpring
-
11605455781 BracketBracket
-
1240327 Hex. Screw M6 x 12Hex. Screw M6 x 12
