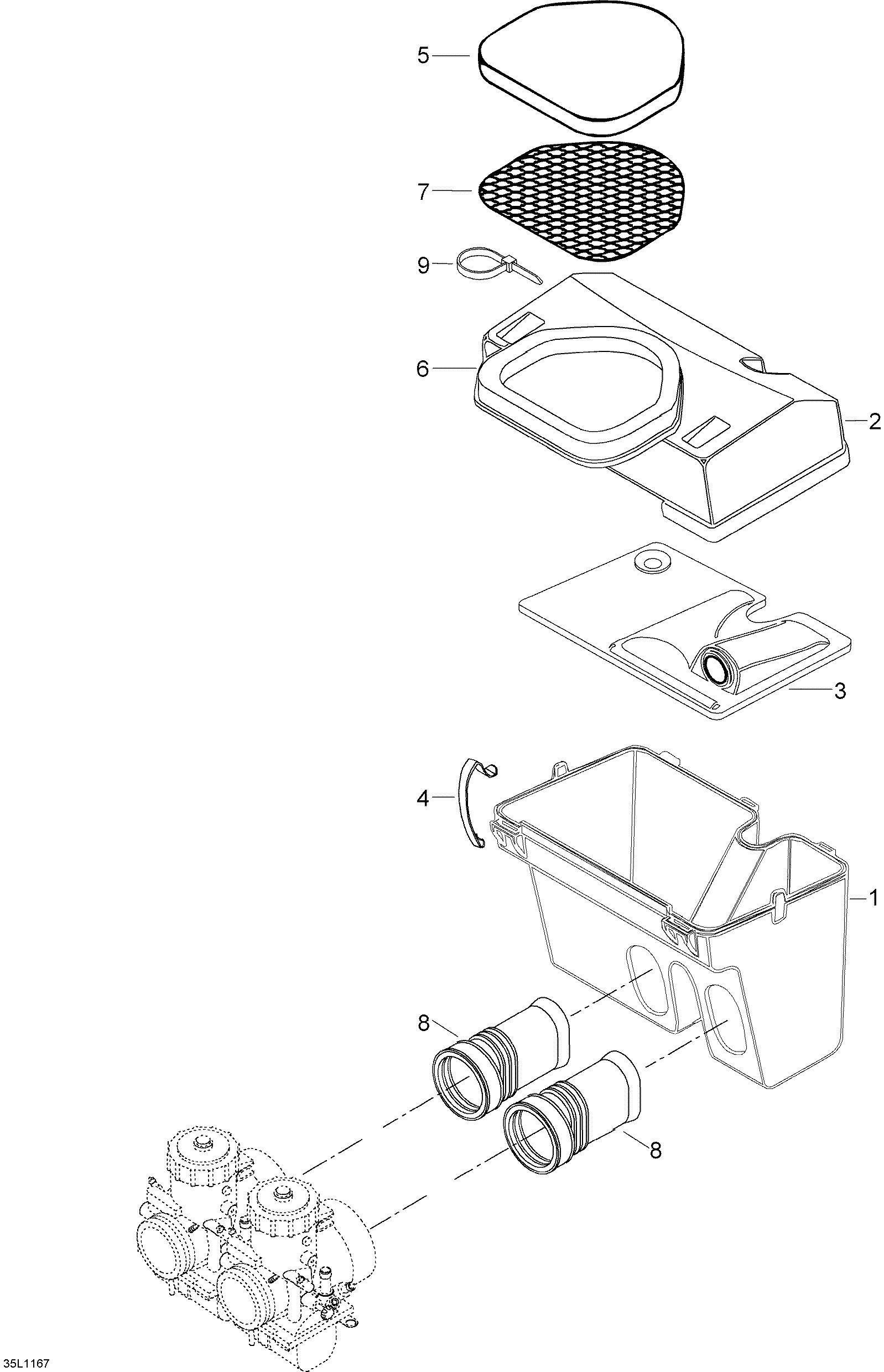

02- Air Silencer для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
15142751 Bottom of airboxBottom of airbox
-
2605255779 Airbox CoverAirbox Cover
-
35344795 Tube plateTube plate
-
45442836 Spring lockSpring lock
-
55342958 Air filterAir filter
-
65342959 Sealing foamSealing foam
-
75342960 Intake grillIntake grill
-
85142626 Air intake adaptorAir intake adaptor
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
