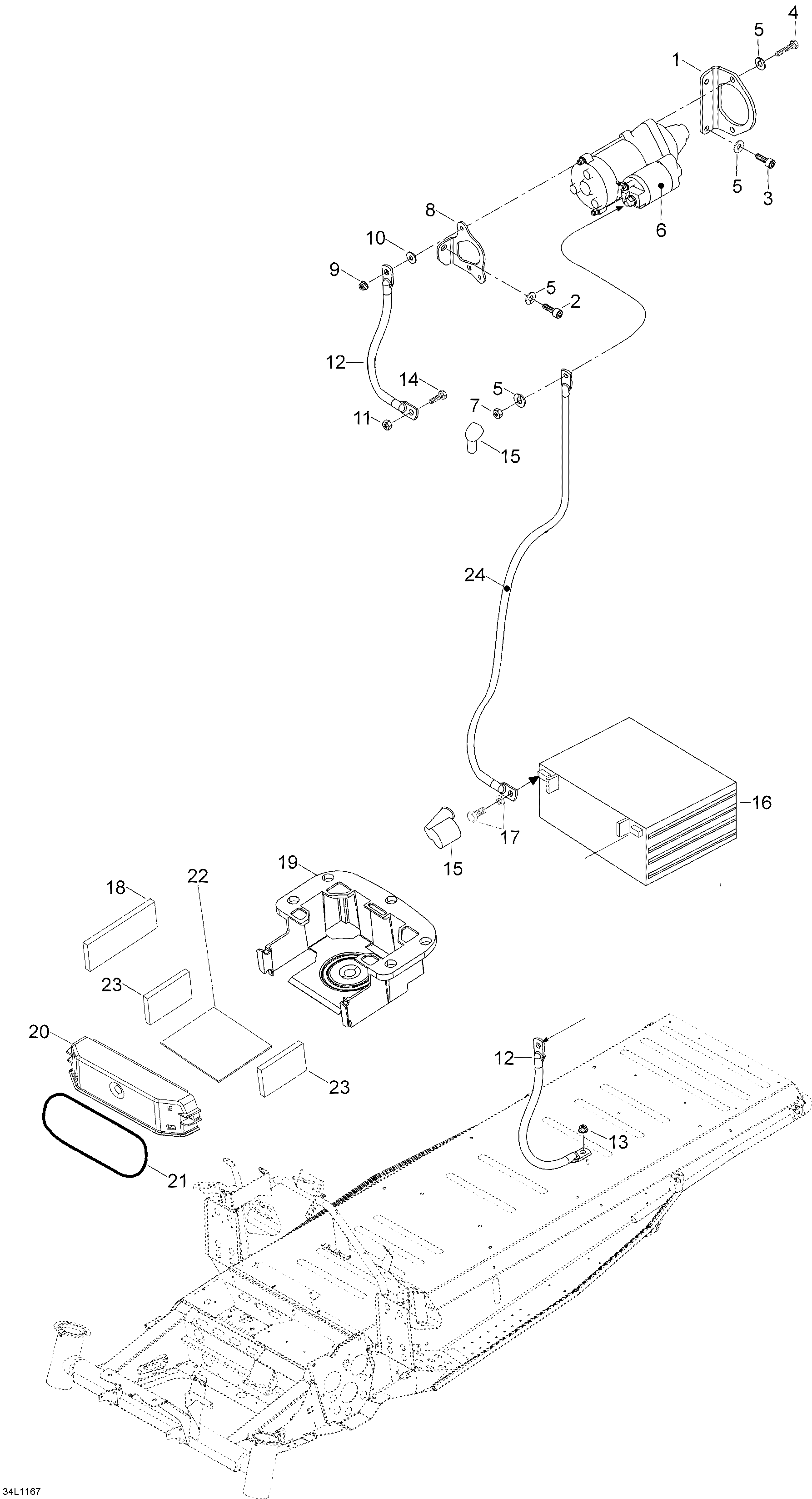

04- Electric Starter для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
1420951415 Starter Bracket, P.T.O.Starter Bracket, P.T.O.
-
240066 Socket head screw M8 x 16Socket head screw M8 x 16
-
340305 Socket head screw M8 x 20Socket head screw M8 x 20
-
440036 Hex. screw M8 x 20Hex. screw M8 x 20
-
520014 Lock washerLock washer
-
6410212400 Electric Starter Ass’YElectric Starter Ass’Y
-
733003 Nut M8Nut M8
-
8420951426 Starter Bracket, M.A.G.Starter Bracket, M.A.G.
-
933009 Elastic stop nut M5Elastic stop nut M5
-
1020008 Washer 5,3 mmWasher 5,3 mm
-
1133010 Elastic stop nut M6Elastic stop nut M6
-
12515175483 Ground WireGround Wire
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1440327 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
15570151000 Protection CapProtection Cap
-
16410301203 Battery Ass'y, 18 Amperes. Includes 16 to 17Battery Ass'y, 18 Amperes. Includes 16 to 17
-
17295500849 Battery Fastener KitBattery Fastener Kit
-
18605355636 AdapterAdapter
-
19605255588 Battery SupportBattery Support
-
20605255586 Battery CoverBattery Cover
-
21605676001 O'Ring 130 X6,0O'Ring 130 X6,0
-
22605355846 FoamFoam
-
23605355847 FoamFoam
