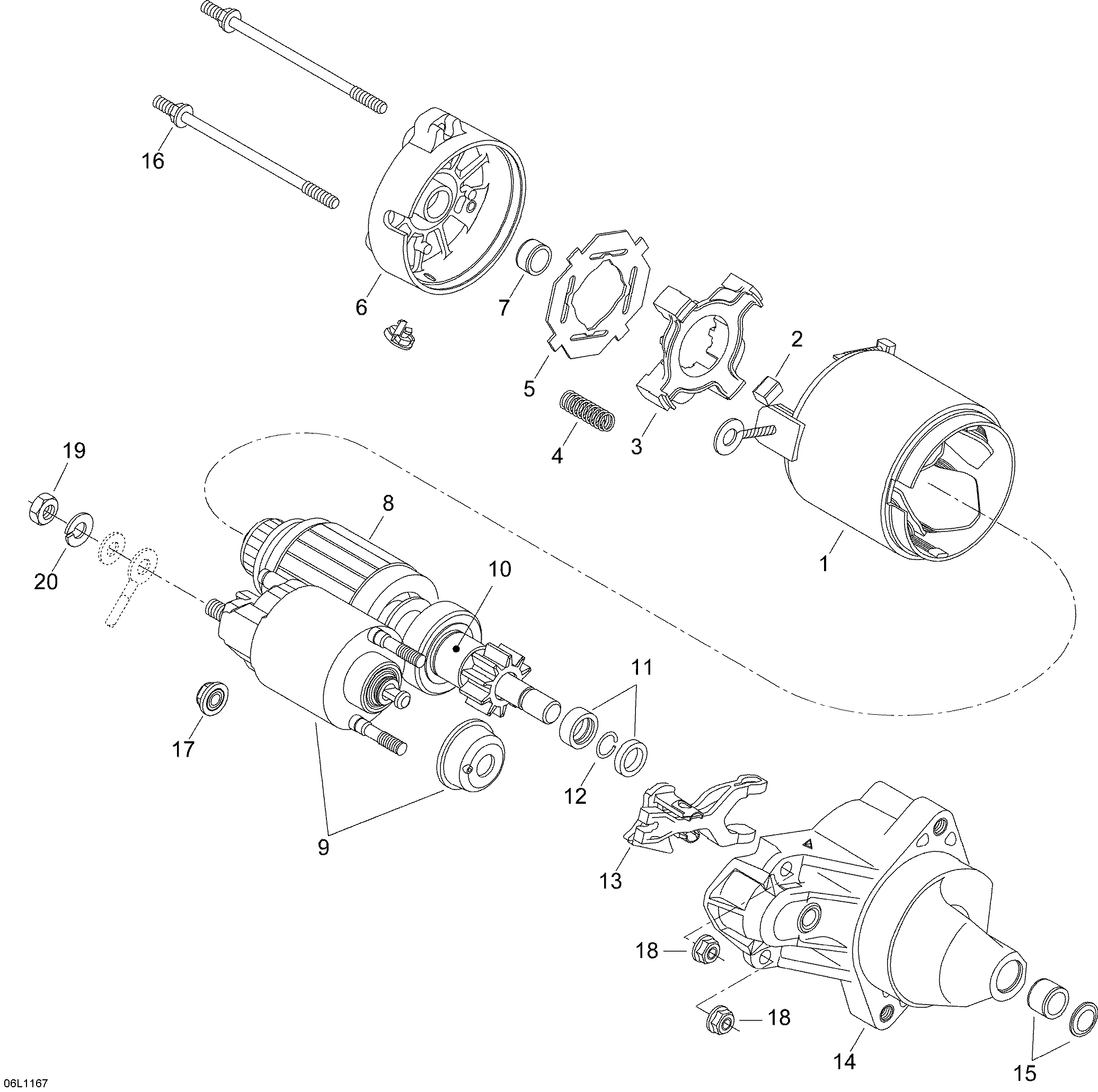

04- Electric Starter для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
-410212400 Electric Starter Ass’Y. Includes 1 to 20Electric Starter Ass’Y. Includes 1 to 20
-
1410209500 Housing StarterHousing Starter
-
2410209600 BrushBrush
-
3410209700 Brush HolderBrush Holder
-
4410209800 Brush SpringBrush Spring
-
5410209900 InsulatorInsulator
-
8410210200 Armature Assy.Armature Assy.
-
9410210300 Switch Assy.Switch Assy.
-
10410210400 Starter ClutchStarter Clutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
13410210700 LeverLever
-
14410210800 HousingHousing
-
15410210900 Brass BushingBrass Bushing
-
16410212000 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
1933003 Nut M8Nut M8
-
2020014 Lock washer 8 mmLock washer 8 mm
