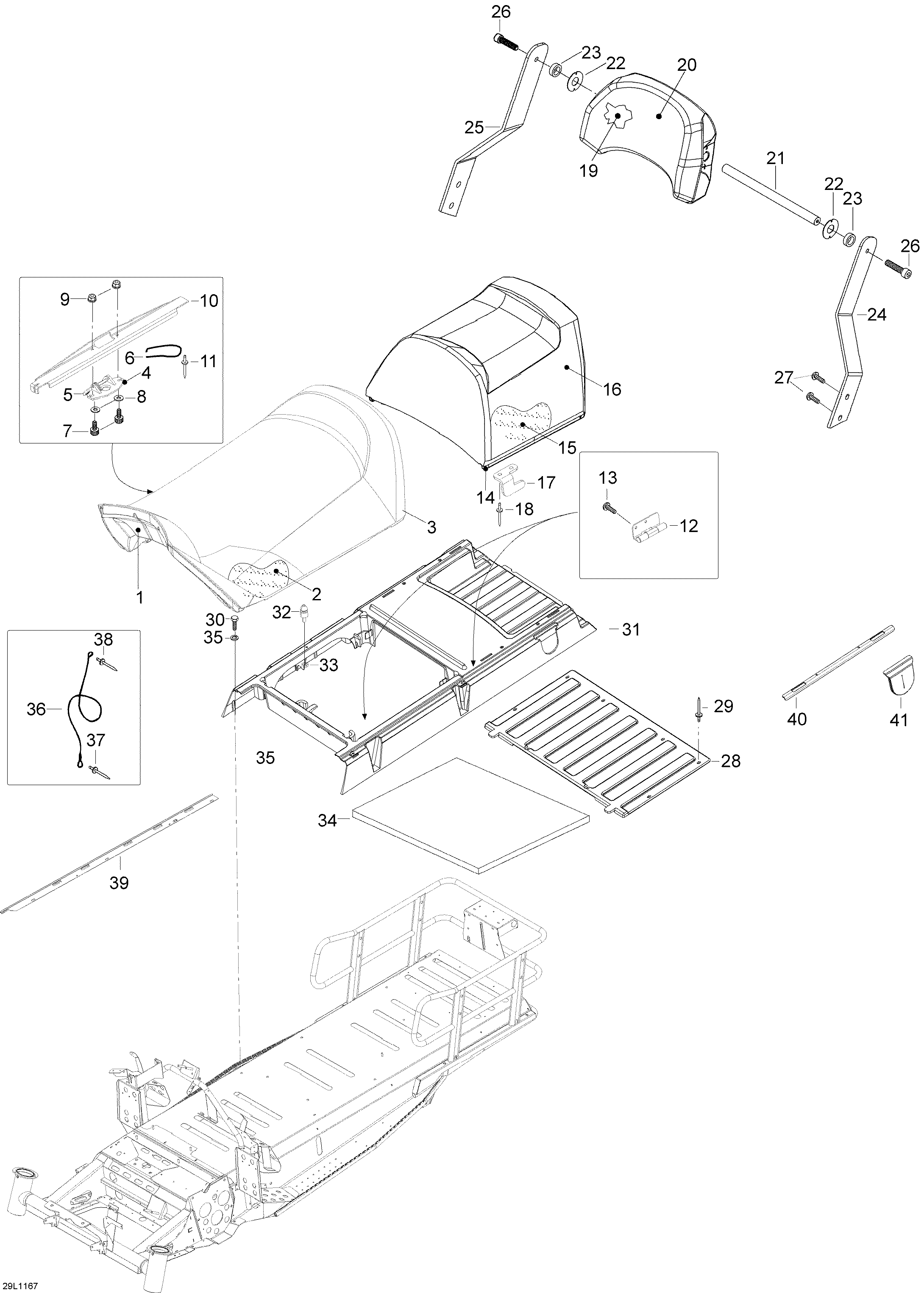

10- Seat для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
1605251388 Seat Base, FrontSeat Base, Front
-
2605255689 Seat FoamSeat Foam
-
3605255216 Seat Front Cover, SUVSeat Front Cover, SUV
-
4269700076 Latch CoverLatch Cover
-
5269700077 Latch LeverLatch Lever
-
6269700109 Latch Ass'yLatch Ass'y
-
740276 Socket head screw M6 x 25Socket head screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10605352483 Support PlateSupport Plate
-
1136088 RivetRivet
-
12605351798 HingeHinge
-
1340890 Wronic-screw 4,2 x 16Wronic-screw 4,2 x 16
-
14605251390 Seat Base, Rear. 14-27 only as akitSeat Base, Rear. 14-27 only as akit
-
15605255691 Rear Seat Foam. 14-27 only as akitRear Seat Foam. 14-27 only as akit
-
16605255218 Seat Cover, SUV. 14-27 only as akitSeat Cover, SUV. 14-27 only as akit
-
17605351808 LH Hook. 14-27 only as akitLH Hook. 14-27 only as akit
-
17605352007 RH Hook. 14-27 only as akitRH Hook. 14-27 only as akit
-
1836087 Rivet. 14-27 only as akitRivet. 14-27 only as akit
-
19510004365 Backrest Foam. 14-27 only as akitBackrest Foam. 14-27 only as akit
-
20605355498 Backrest Cover. 14-27 only as akitBackrest Cover. 14-27 only as akit
-
21605355357 Backrest Axle. 14-27 only as akitBackrest Axle. 14-27 only as akit
-
22605355358 Washer. 14-27 only as akitWasher. 14-27 only as akit
-
23510004378 Rubber Shim. 14-27 only as akitRubber Shim. 14-27 only as akit
-
24605355503 LH Arm. 14-27 only as akitLH Arm. 14-27 only as akit
-
25605355504 RH Arm. 14-27 only as akitRH Arm. 14-27 only as akit
-
26605640010 Screw M10x20. 14-27 only as akitScrew M10x20. 14-27 only as akit
-
2740316 Screw M8 x 20. 14-27 only as akitScrew M8 x 20. 14-27 only as akit
-
28605255587 Frame CoverFrame Cover
-
2936036 RivetRivet
-
3040029 Hex. screw M6 x 16Hex. screw M6 x 16
-
31605155585 Seat BaseSeat Base
-
32605452035 Lock PinLock Pin
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34605355635 FoamFoam
-
3520052 Lock washerLock washer
-
36546777 Retainer cableRetainer cable
-
3736037 RivetRivet
-
3836009 RivetRivet
-
39605255762 RH Seat BracketRH Seat Bracket
-
40605355816 Rear Seat SupportRear Seat Support
-
41605355589 CapCap
