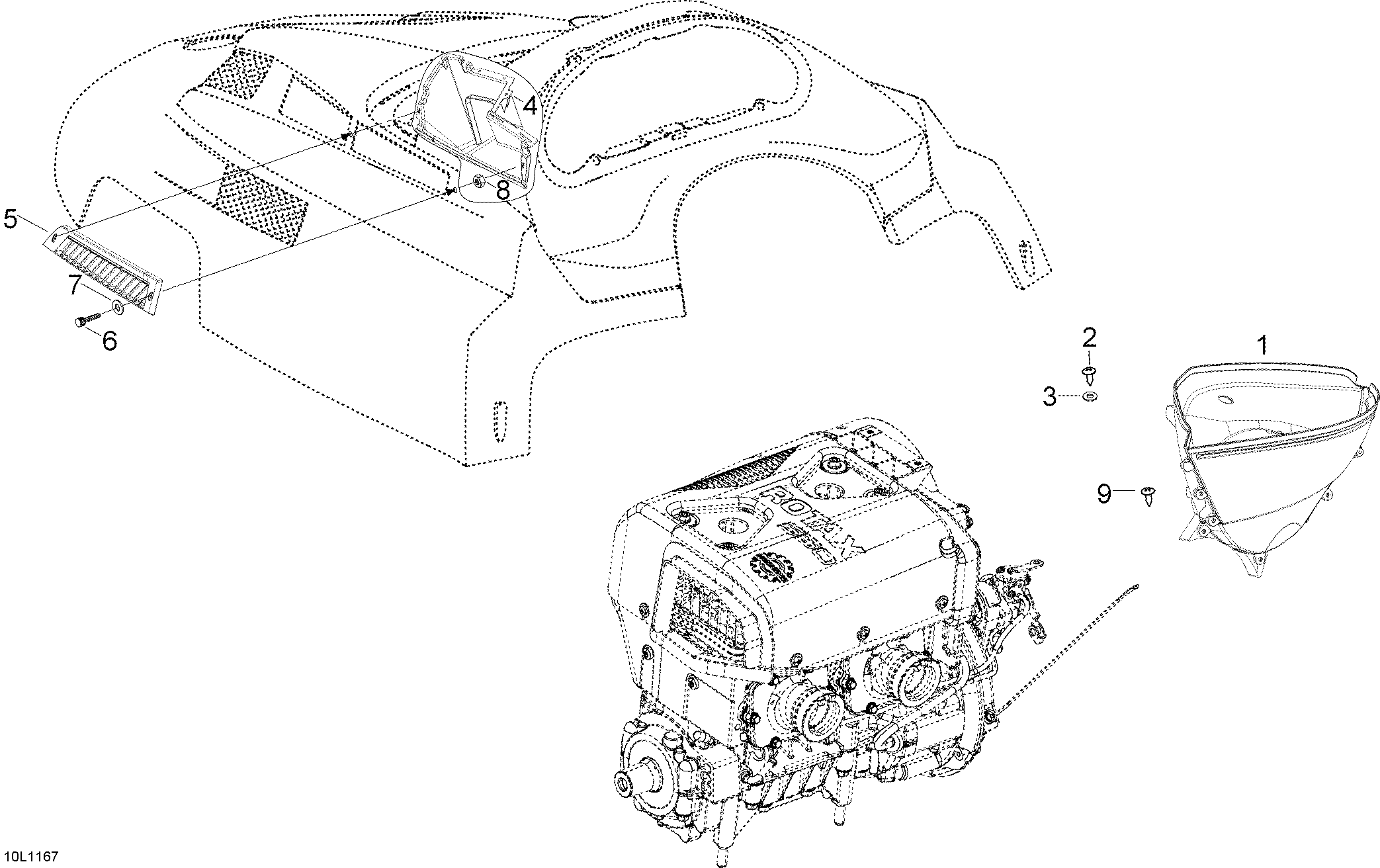

01- Fan Housing 2 для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
1605155173 Cooling Channel Ass'yCooling Channel Ass'y
-
2250000222 Slotted Indented Hex. Screw #10 X 5/8Slotted Indented Hex. Screw #10 X 5/8
-
3391301600 WasherWasher
-
4605354585 Air Duct CoolingAir Duct Cooling
-
5605354586 Air Duct CoolingAir Duct Cooling
-
6250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
720008 Washer 5,3 mmWasher 5,3 mm
-
833009 Elastic stop nut M5Elastic stop nut M5
-
940847 Wronic-screw 4,2 x 13Wronic-screw 4,2 x 13
