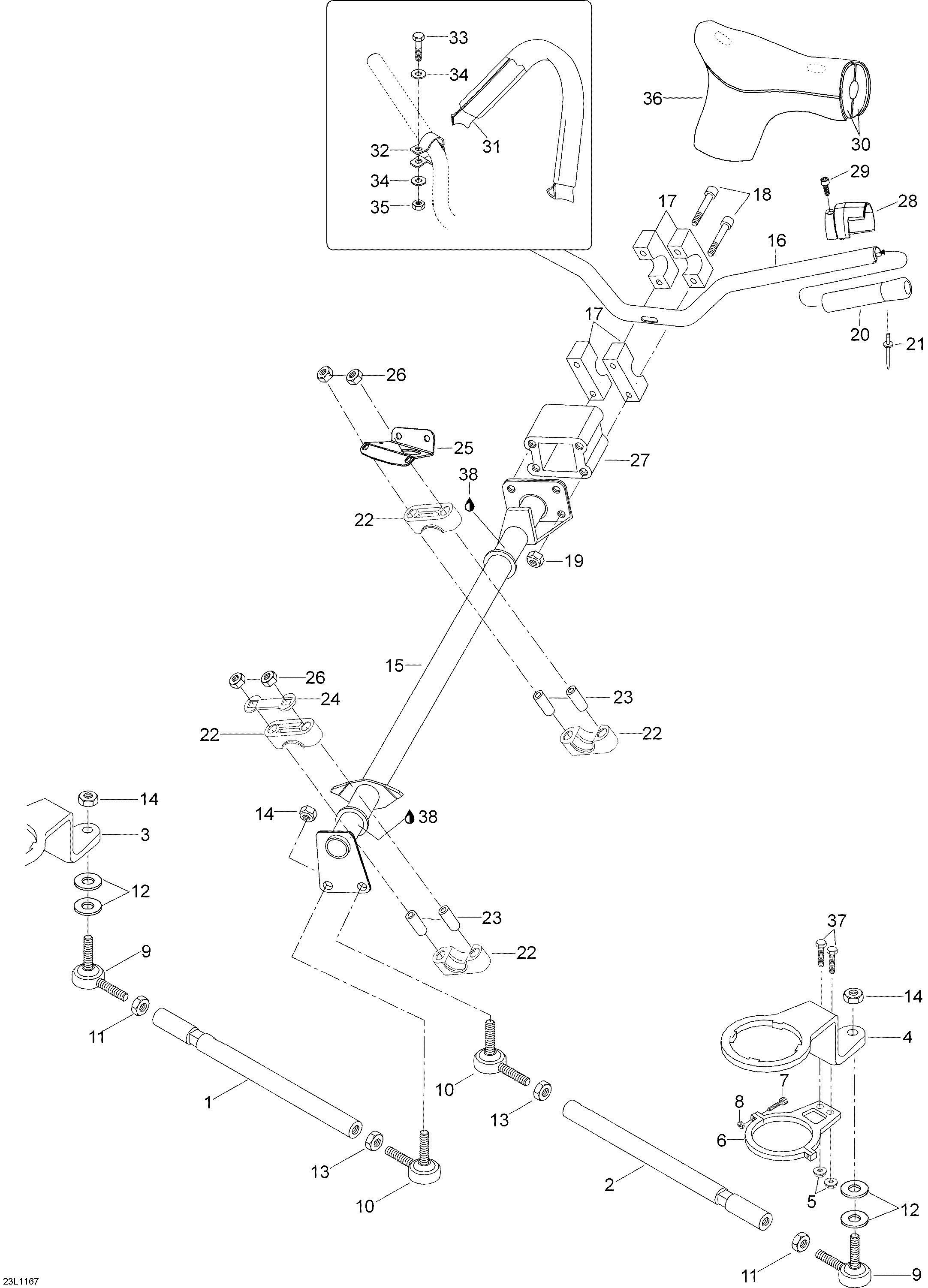

07- Steering System для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
1605455619 Tie RodTie Rod
-
2605455620 Tie RodTie Rod
-
3605353422 RH Steering ArmRH Steering Arm
-
4605353423 LH Steering ArmLH Steering Arm
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
65344180 Support ass'ySupport ass'y
-
740146 Socket head screw M4 x 20Socket head screw M4 x 20
-
833008 Elastic stop nut M4Elastic stop nut M4
-
9506151492 RH Ball JointRH Ball Joint
-
10506151845 LH Joint BallLH Joint Ball
-
1133019 Nut R.H.Nut R.H.
-
1231014 Shim ringShim ring
-
1333017 Nut L.H.Nut L.H.
-
1433023 Elastic stop nut M10Elastic stop nut M10
-
15605255608 Main TubeMain Tube
-
16605251368 Handle BarHandle Bar
-
17548448 Steering clampSteering clamp
-
1840124 Socket head screw M8 x 100Socket head screw M8 x 100
-
19232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
205340464 GripGrip
-
2136005 RivetRivet
-
22506150400 Housing HalfHousing Half
-
23506150500 Housing BushingHousing Bushing
-
24506150600 Stopper PlateStopper Plate
-
25605352322 Console HolderConsole Holder
-
26233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27605349584 ExtensionExtension
-
28506151566 AdaptatorAdaptator
-
2940390 Insex screw M8 x 20Insex screw M8 x 20
-
30605252111 Foam, RearFoam, Rear
-
30605252110 Foam, FrontFoam, Front
-
31506152115 Strap Ass'yStrap Ass'y
-
32506151792 Support Plate, BlackSupport Plate, Black
-
3340031 Hex. screw M6 x 25Hex. screw M6 x 25
-
3420003 WasherWasher
-
3533010 Elastic stop nut M6Elastic stop nut M6
-
36605254571 Steering CoverSteering Cover
-
3740031 Hex. screw M6 x 25Hex. screw M6 x 25
-
38293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
