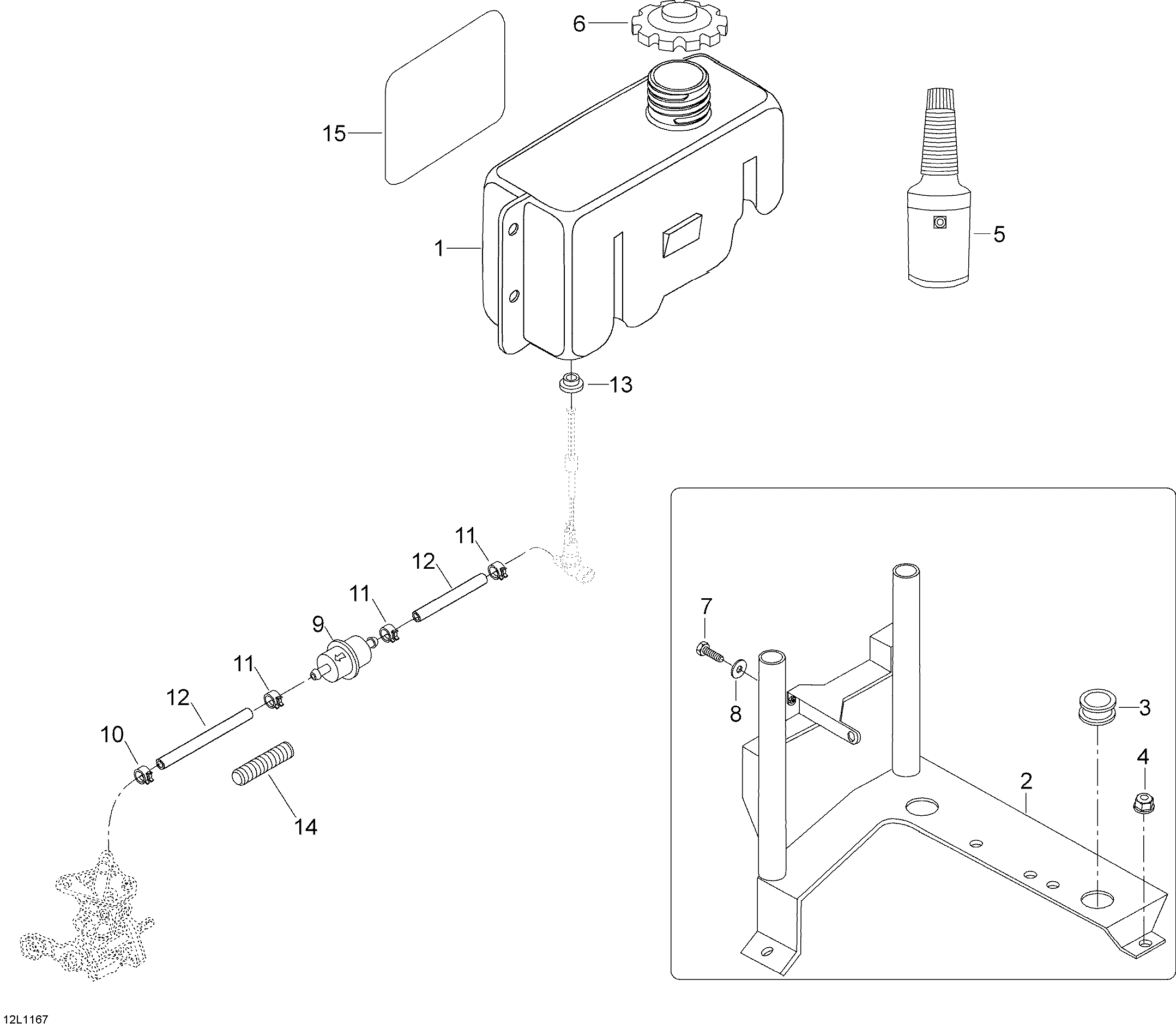

02- Oil System для BRP Lynx YETI Pro 550 - 2011
-
№АртикулНазвание
-
15142700 Oil tankOil tank
-
2605355528 Oil Tank SupportOil Tank Support
-
328022 GrommetGrommet
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5619590104 Semi synthetic oil 3 x 4lSemi synthetic oil 3 x 4l
-
6519000044 CapCap
-
740322 Screw M6 x 10Screw M6 x 10
-
8234062410 Flat Washer 6 mmFlat Washer 6 mm
-
9414536500 FilterFilter
-
10414420700 Spring ClipSpring Clip
-
11414415200 Universal Spring ClampUniversal Spring Clamp
-
1239046 Oil lineOil line
-
13570023000 Insulating RingInsulating Ring
-
14409901800 Tubing 13 mmTubing 13 mm
-
155443578 AL-coverAL-cover
