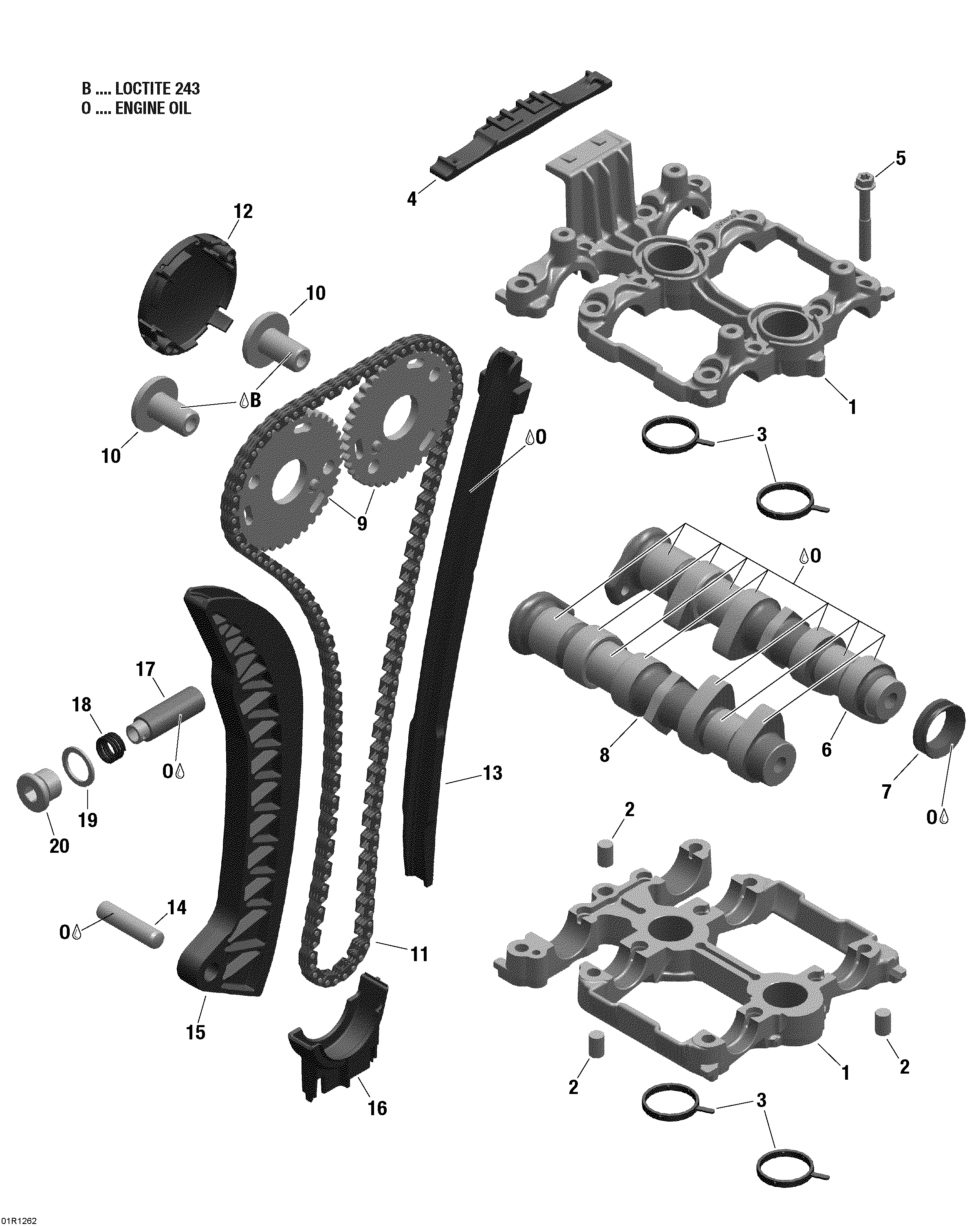

01- Camshafts And Timing Chain для BRP Lynx Adventure LX 600 ACE - 2012

№

Артикул

Название
1-2

420911035 Camshaft Housing Ass'y

Camshaft Housing Ass'y

33 440 ₽
2

420632010 Center Pin 8 X 12

Center Pin 8 X 12

1 450 ₽
3

420431760 Gasket. INCLUDED IN GASKET KIT

Gasket. INCLUDED IN GASKET KIT

1 120 ₽
4

420936500 Chain Guide Upper

Chain Guide Upper

710 ₽
5

420440324 Flanged Torx Screw M6 X 45. TIGHTENING TORQUE 11NM +/- 12%

Flanged Torx Screw M6 X 45. TIGHTENING TORQUE 11NM +/- 12%

360 ₽
6

420820111 Camshaft, Exhaust

Camshaft, Exhaust

14 660 ₽
7

420630127 V-Ring. INCLUDED IN GASKET KIT

V-Ring. INCLUDED IN GASKET KIT

1 030 ₽
8

420820101 Camshaft, Intake

Camshaft, Intake

14 660 ₽
9

420855120 Camshaft Sprocket, 40 Teeth

Camshaft Sprocket, 40 Teeth

6 690 ₽
10

420441360 Flat Head Screw M14 X 1.5. TIGHTENING TORQUE 50NM +/- 7%

Flat Head Screw M14 X 1.5. TIGHTENING TORQUE 50NM +/- 7%

2 210 ₽
11

420297086 Camshaft Chain

Camshaft Chain

6 900 ₽
12

420460920 Cover

Cover

1 890 ₽
13

420936010 Chain Guide

Chain Guide

3 780 ₽
14

420929937 Needle Pin. TIGHTENING TORQUE 15NM +/- 12%

Needle Pin. TIGHTENING TORQUE 15NM +/- 12%

590 ₽
15

420936020 Chain Tension Guide

Chain Tension Guide

4 520 ₽
16

420936510 Chain Guide

Chain Guide

590 ₽
17

420236256 Chain Tensioner

Chain Tensioner

16 770 ₽
18

420238732 Compression Spring

Compression Spring

1 890 ₽
19

420430622 O-Ring. INCLUDED IN GASKET KIT

O-Ring. INCLUDED IN GASKET KIT

1 540 ₽
20

420840591 Plug Screw. TIGHTENING TORQUE 25NM +/- 12%

Plug Screw. TIGHTENING TORQUE 25NM +/- 12%

710 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
O

293600112 Synthetic Oil 4T 12X1 L.

Synthetic Oil 4T 12X1 L.

1 050 ₽
