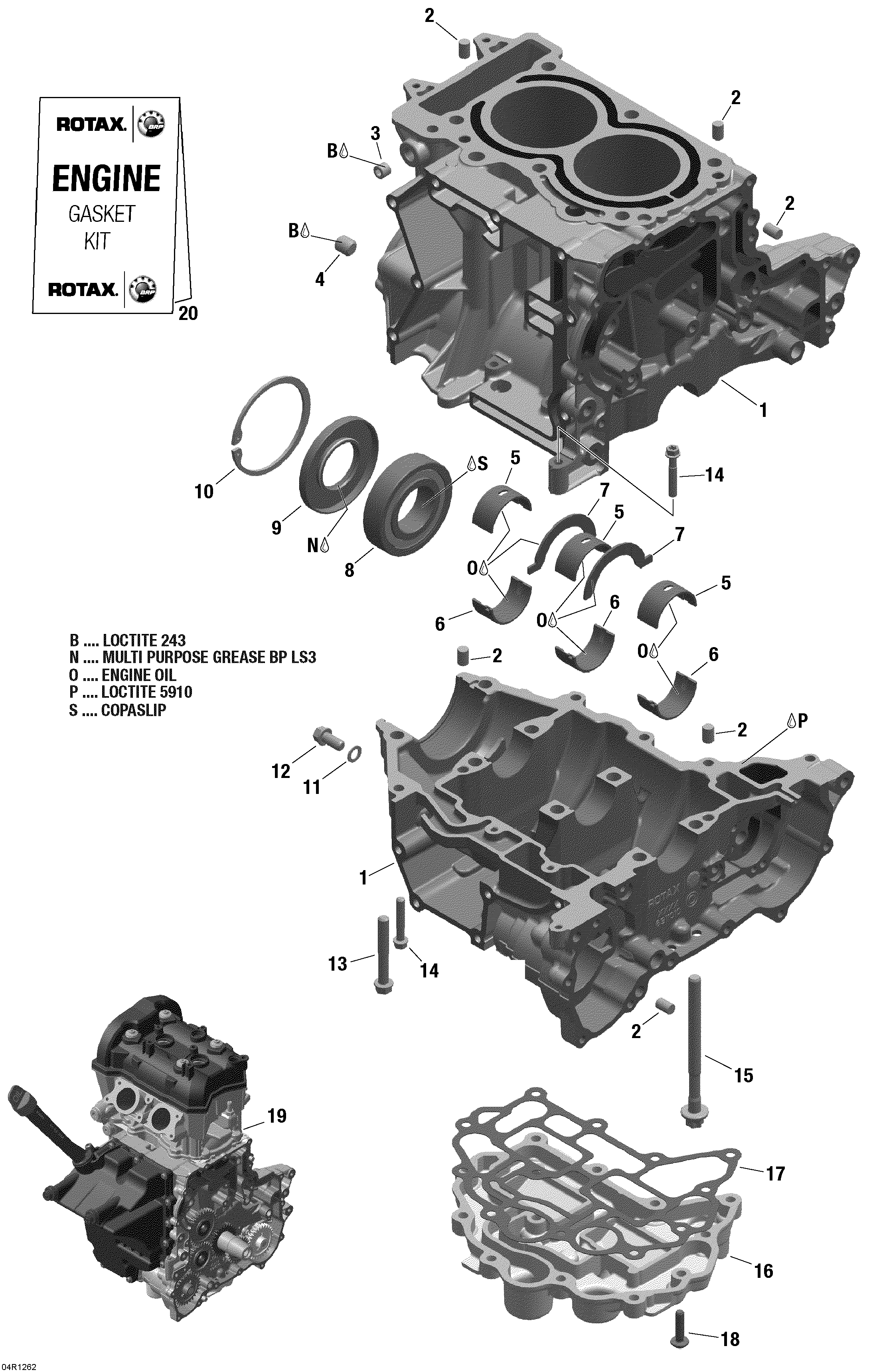

01- Engine Block для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1-6420892853 Crankcase Ass'y. Includes 1 to 6Crankcase Ass'y. Includes 1 to 6
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420641323 Plug Screw M10 X 1. TIGHTENING TORQUE 12NM +/- 12%Plug Screw M10 X 1. TIGHTENING TORQUE 12NM +/- 12%
-
4420840500 Threaded Pin. TIGHTENING TORQUE 15NM +/- 12%Threaded Pin. TIGHTENING TORQUE 15NM +/- 12%
-
5420933180 CushionCushion
-
6420933185 CushionCushion
-
7420933140 Ring HalfRing Half
-
8420832232 Ball BearingBall Bearing
-
9420431400 Oil Seal. INCLUDED IN GASKET KITOil Seal. INCLUDED IN GASKET KIT
-
10420845790 Retaining RingRetaining Ring
-
11420950141 Sealing Ring. INCLUDED IN GASKET KITSealing Ring. INCLUDED IN GASKET KIT
-
12420440852 Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 20NM +/- 12%Flanged Torx Screw M8 X 16. TIGHTENING TORQUE 20NM +/- 12%
-
13420641213 Flanged Torx Screw M8 X 55. TIGHTENING TORQUE 23NM +/- 12%Flanged Torx Screw M8 X 55. TIGHTENING TORQUE 23NM +/- 12%
-
14420641258 Flanged Torx Screw M6 X 35. TIGHTENING TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 35. TIGHTENING TORQUE 11NM +/- 12%
-
15420940945 Flanged Torx Screw M9 X 113. TIGHTENING TORQUE 20NM +/- 12% +120°Flanged Torx Screw M9 X 113. TIGHTENING TORQUE 20NM +/- 12% +120°
-
16420911120 Oil Sump CoverOil Sump Cover
-
17420431630 Gasket. INCLUDED IN GASKET KITGasket. INCLUDED IN GASKET KIT
-
18420841546 Flanged Torx Screw M6 X 25. TIGHTENING TORQUE 14NM +/- 12%. RETRY TORQUE 11 NM +/- 12%Flanged Torx Screw M6 X 25. TIGHTENING TORQUE 14NM +/- 12%. RETRY TORQUE 11 NM +/- 12%
-
19300060201 Engine 602 ACEEngine 602 ACE
-
20420686020 Gasket Set, EngineGasket Set, Engine
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
O293600112 Synthetic Oil 4T 12X1 L.Synthetic Oil 4T 12X1 L.
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
S293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
