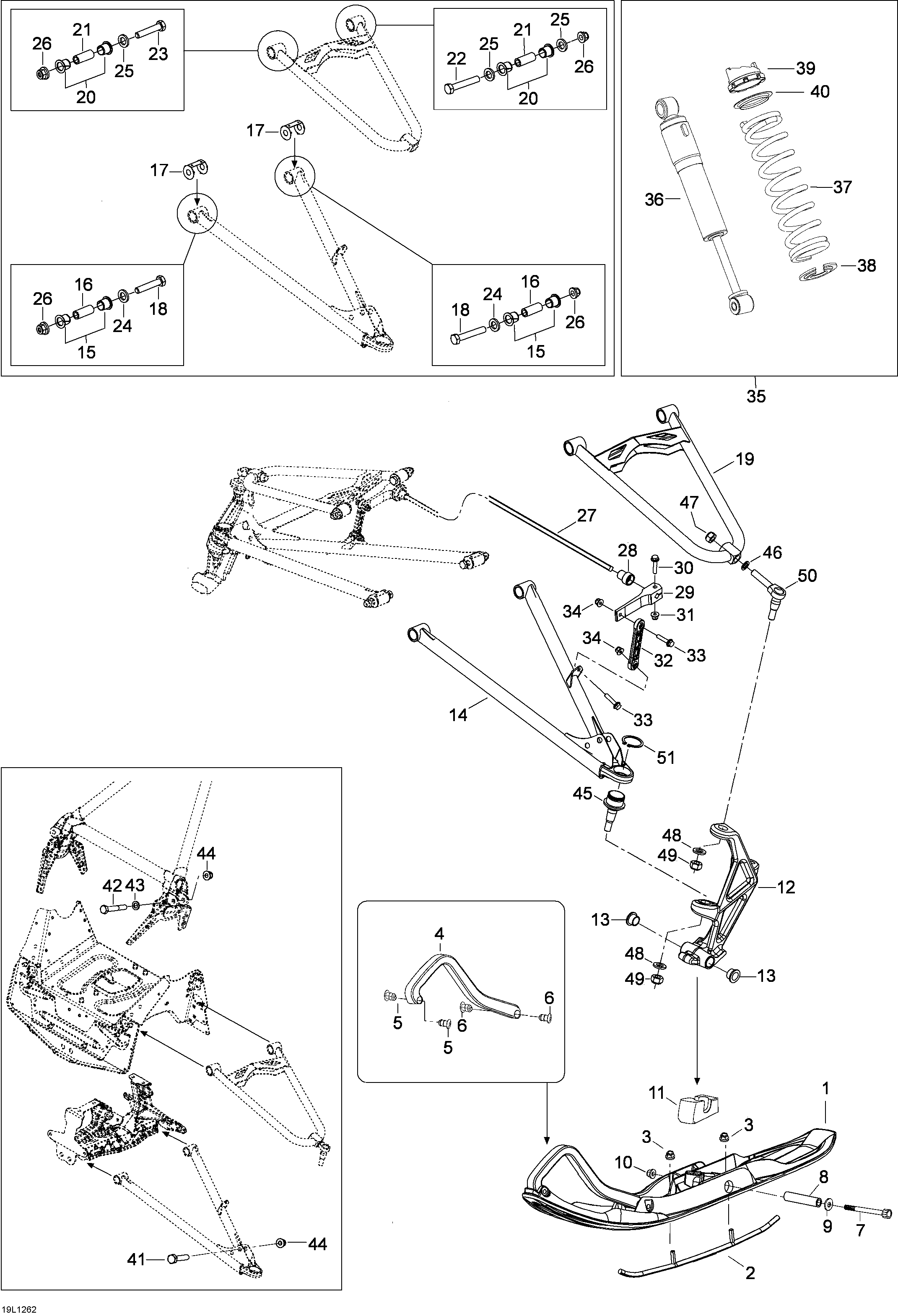

07- Front Suspension And Ski для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1505072673 Plastic SkiPlastic Ski
-
2605352643 Carbide KitCarbide Kit
-
333074 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
4505071059 Handle, Viper RedHandle, Viper Red
-
5505071812 RetainerRetainer
-
6505072133 RetainerRetainer
-
7230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8506133300 SpacerSpacer
-
9732900049 WasherWasher
-
10232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
11505072561 Rubber DamperRubber Damper
-
12505073007 LH Ski LegLH Ski Leg
-
12505073008 RH Ski LegRH Ski Leg
-
13505072690 Leg CushionLeg Cushion
-
14505072664 RH Lower ArmRH Lower Arm
-
14505072665 LH Lower ArmLH Lower Arm
-
15503191766 CushionCushion
-
16505072401 Aluminum BushingAluminum Bushing
-
17505072634 Wear PlateWear Plate
-
18250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
19505072455 Upper ArmUpper Arm
-
20503191555 Swivel BushingSwivel Bushing
-
21505072143 BushingBushing
-
22250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
23250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
24503189564 WasherWasher
-
25505072392 WasherWasher
-
26250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
27505072602 StabilisatorStabilisator
-
28505072064 BushingBushing
-
29505072394 Stabilisator LeverStabilisator Lever
-
30207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32505072204 Double Ball Joint LinkDouble Ball Joint Link
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
36505072517 Front ShockFront Shock
-
37503192286 Spring 300mm-14 N/MMSpring 300mm-14 N/MM
-
38230076 Spring SeatSpring Seat
-
39505070150 Adjustment CamAdjustment Cam
-
40503191872 Spring GuideSpring Guide
-
41207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
42207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
43503189564 WasherWasher
-
44233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
45505072682 Lower Ball JointLower Ball Joint
-
46503189276 WasherWasher
-
47250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
48234021410 Flat Washer 12 mmFlat Washer 12 mm
-
49250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
50505072257 Upper Ball JointUpper Ball Joint
-
51293370035 CirclipCirclip
