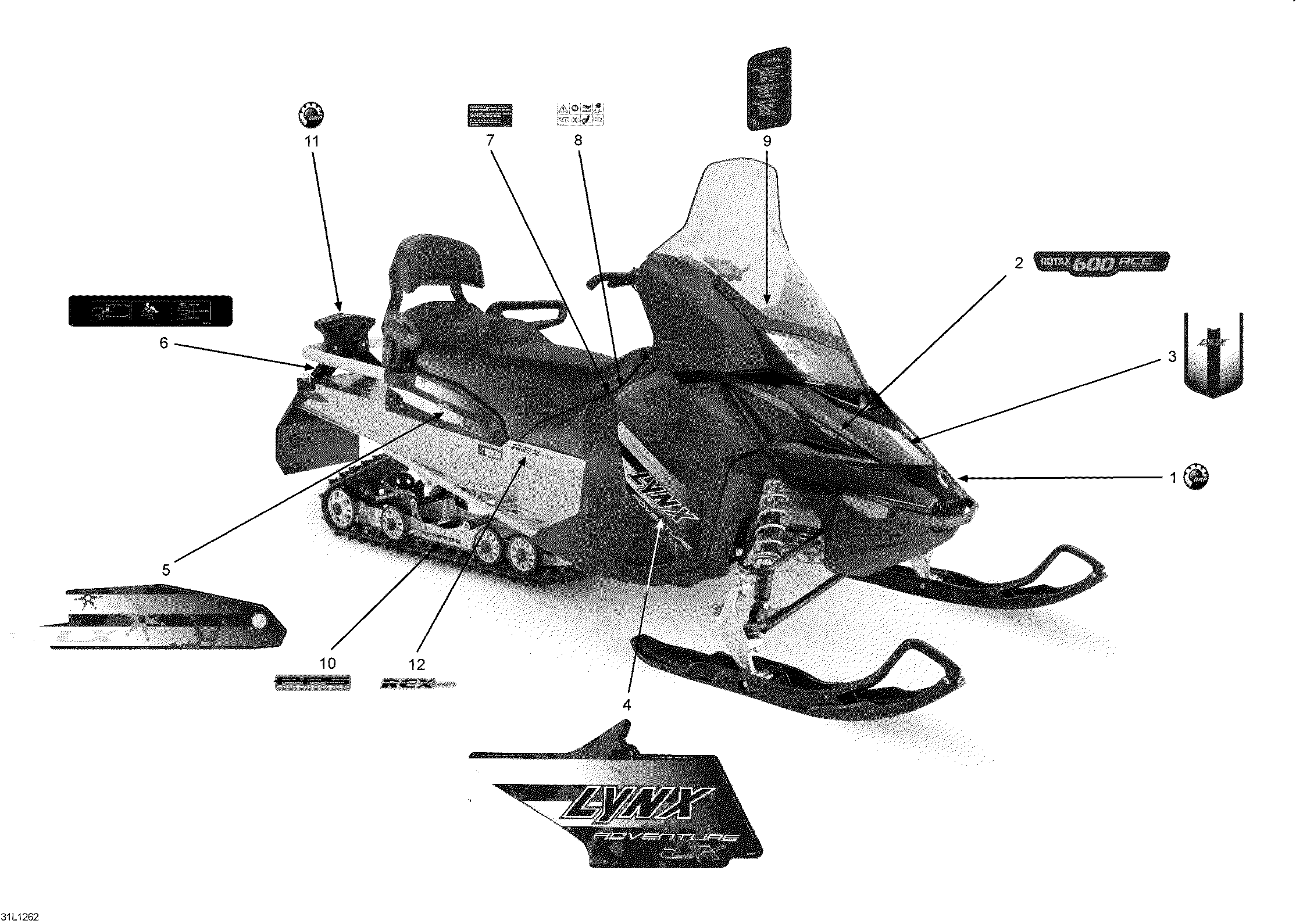

09- Decals для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2516004360 Hood Rotax DecalHood Rotax Decal
-
3516005158 Decal, Hood Adventure LXDecal, Hood Adventure LX
-
4516005045 Decal, Sidepanel L.H.Decal, Sidepanel L.H.
-
4516005046 Decal, Sidepanel R.H.Decal, Sidepanel R.H.
-
5516005156 Decal, Seat Sidepanel R.H.Decal, Seat Sidepanel R.H.
-
5516005157 Decal, Seat Sidepanel L.H.Decal, Seat Sidepanel L.H.
-
6516004757 Instr./ Warning LabelInstr./ Warning Label
-
75447012 Oil Checking Label FI/SE/ENGOil Checking Label FI/SE/ENG
-
8516003919 Warning DecalWarning Decal
-
9516004607 Label FI/SE/ENGLabel FI/SE/ENG
-
10605454883 Decal, PPSDecal, PPS
-
11219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
12516004307 REX Platform, Tunnel R.H./L.H.REX Platform, Tunnel R.H./L.H.
