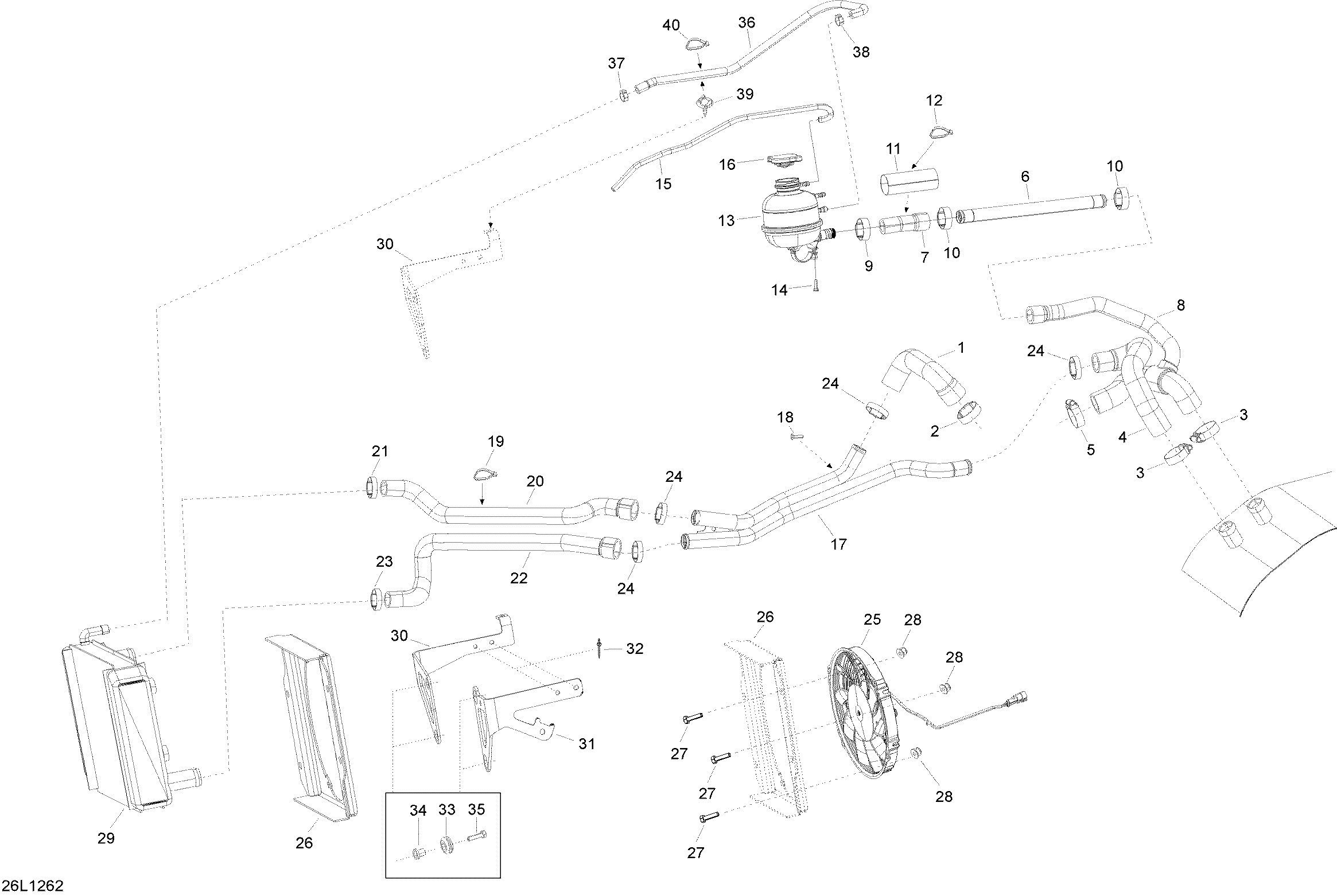

01- Cooling System для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1509000564 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000443 Aba Gear ClampAba Gear Clamp
-
4509000762 Hose, Front Air Rad->Tunnel RadHose, Front Air Rad->Tunnel Rad
-
5509000443 Aba Gear ClampAba Gear Clamp
-
6509000644 PipePipe
-
7509000698 HoseHose
-
8509000806 HOSE TUNNEL RAD.->ENGINE-FILLINGHOSE TUNNEL RAD.->ENGINE-FILLING
-
9509000442 Gear ClampGear Clamp
-
10293650099 Oetiker Gear ClampOetiker Gear Clamp
-
11509000730 Protector Tube 31.75 mm - 90 mmProtector Tube 31.75 mm - 90 mm
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13509000368 Coolant TankCoolant Tank
-
14241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
15276000048 Hose 6 mmHose 6 mm
-
16509000180 Pressure CapPressure Cap
-
17509000800 Water PipeWater Pipe
-
18207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20509000636 Radiator HoseRadiator Hose
-
21293650165 Oetiker ClampOetiker Clamp
-
22509000637 Radiator HoseRadiator Hose
-
23293650165 Oetiker ClampOetiker Clamp
-
24509000735 ClampClamp
-
25709200230 FanFan
-
26509000714 Fan SupportFan Support
-
27207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29509000756 RadiatorRadiator
-
30509000754 RH Radiator SupportRH Radiator Support
-
31509000755 LH Radiator SupportLH Radiator Support
-
32390909100 Avex RivetAvex Rivet
-
33293720053 GrommetGrommet
-
34293900100 BushingBushing
-
35207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
36509000750 Breather HoseBreather Hose
-
37293650046 Oetiker ClampOetiker Clamp
-
38293650025 Oetiker Gear ClampOetiker Gear Clamp
-
39293730018 Mount DartMount Dart
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
