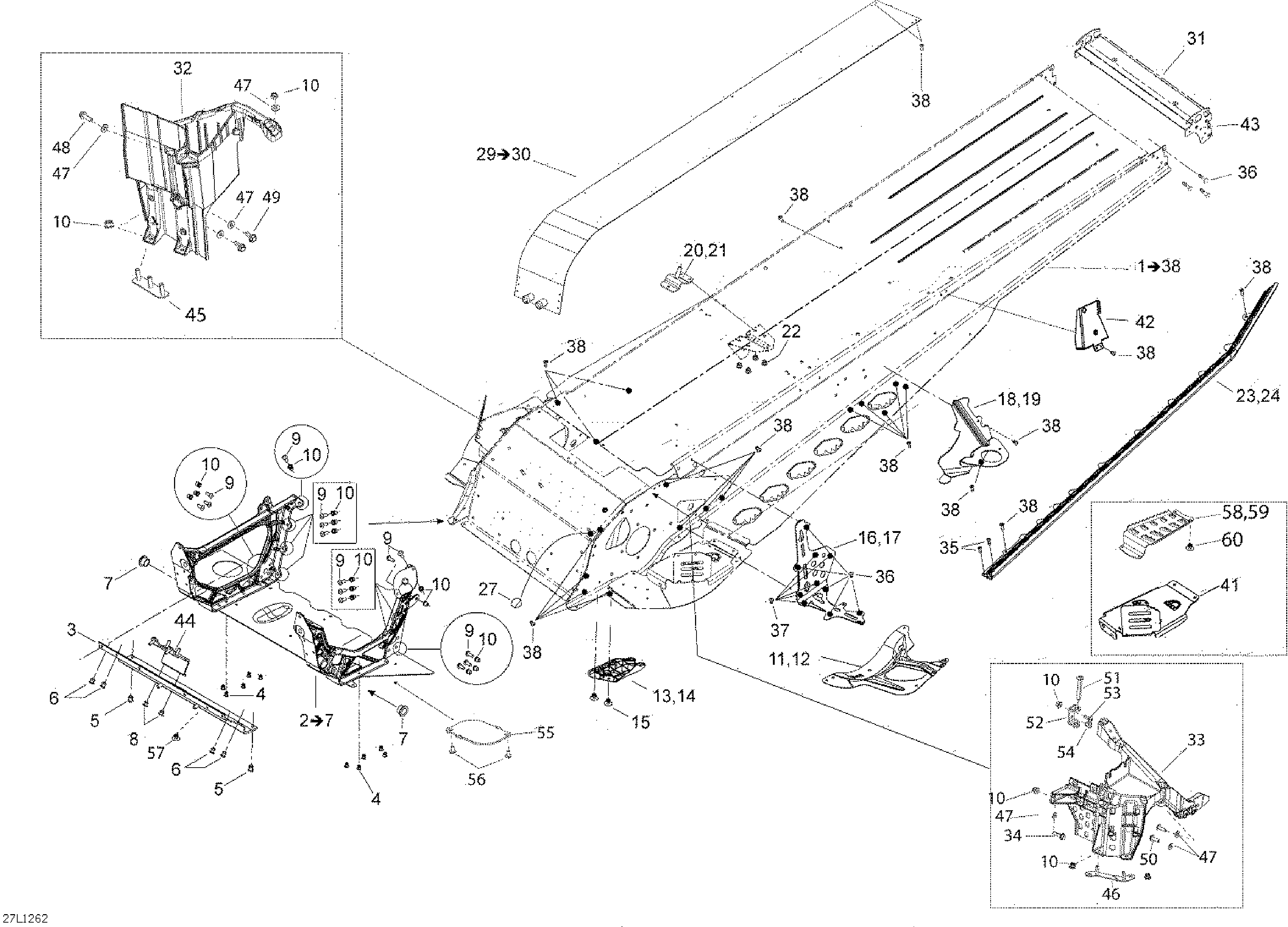

09- Frame для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1518327079 Frame assy. Includes 1 to 39Frame assy. Includes 1 to 39
-
2518326507 E ModuleE Module
-
3518326198 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 Leg CushionLeg Cushion
-
8293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326421 RH Rear BaseRH Rear Base
-
21518326443 LH Rear BaseLH Rear Base
-
22293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
23518327068 LH RollerLH Roller
-
24518327069 RH RollerRH Roller
-
27518325560 Adhesive PatchAdhesive Patch
-
29509000701 Rear Radiator. Includes 29 to 30Rear Radiator. Includes 29 to 30
-
30390909100 Avex RivetAvex Rivet
-
31518326379 Rear CapRear Cap
-
32518326472 Battery SupportBattery Support
-
33518326820 LH StirupLH Stirup
-
34207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
37390909100 Avex RivetAvex Rivet
-
38390909200 Avex RivetAvex Rivet
-
42510005285 Seat support R.HSeat support R.H
-
42510005286 Seat support L.HSeat support L.H
-
43518326637 Rear side plateRear side plate
-
44518326178 Engine SupportEngine Support
-
45518326550 Retaining PlateRetaining Plate
-
46518326986 AttachAttach
-
47250200039 Flat WasherFlat Washer
-
48210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
49207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
50250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
51250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
52518326961 U-AttachU-Attach
-
53250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
54293150147 Hemlock RivetHemlock Rivet
-
55518326757 Oil PlateOil Plate
-
56250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
57293730042 DartDart
-
58520000887 RH FootrestRH Footrest
-
59520000888 LH FootrestLH Footrest
-
60390402200 Pop Rivet 3/16''Pop Rivet 3/16''
