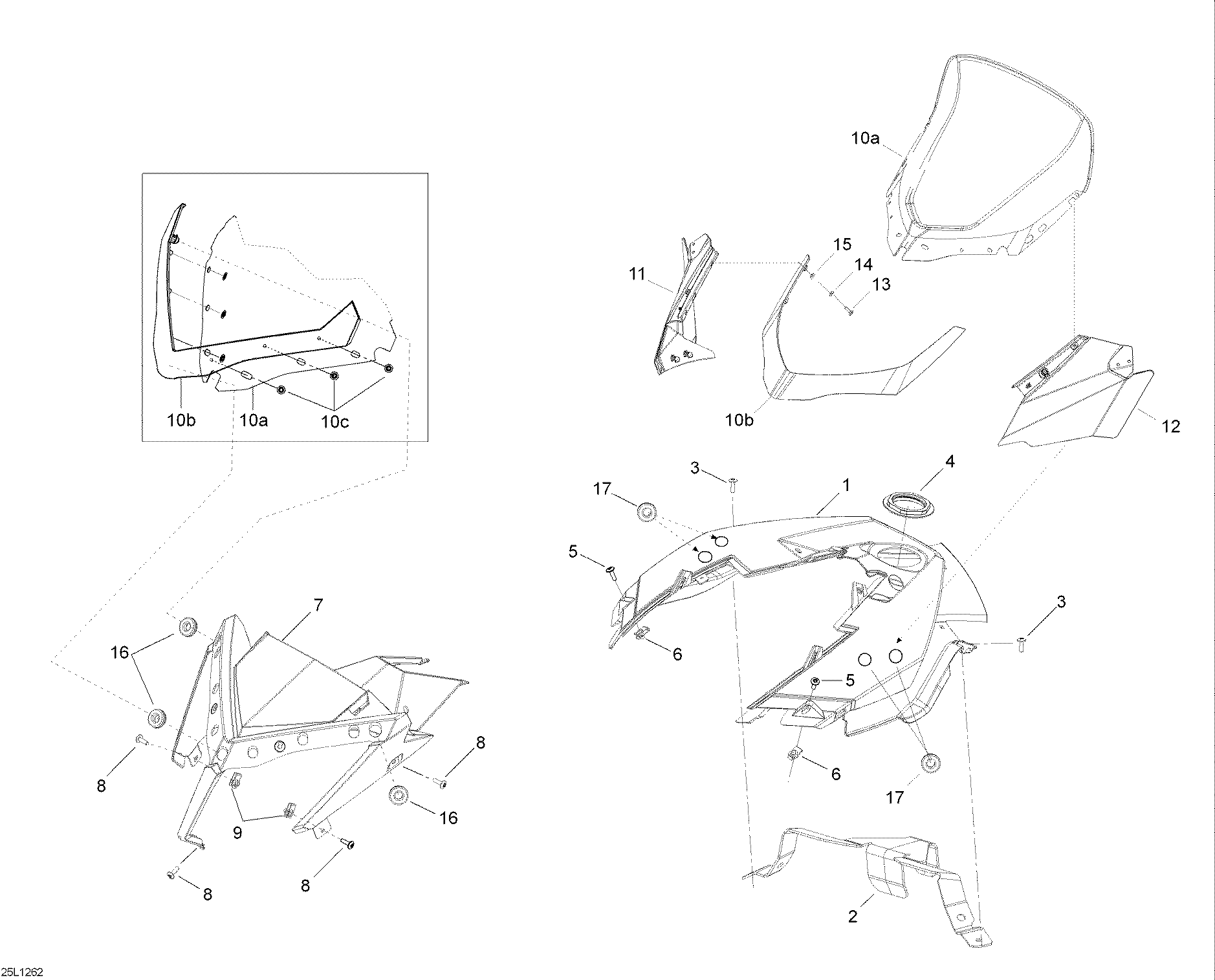

09- Windshield And Console для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1517304539 ConsoleConsole
-
2517304230 Console SupportConsole Support
-
336037 RivetRivet
-
4517302575 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7517304575 Gauge SupportGauge Support
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10a517304614 WindshieldWindshield
-
10b517303607 Windshield SupportWindshield Support
-
10c732610072 Push NutPush Nut
-
11517305135 Air Deflector R.H.Air Deflector R.H.
-
12517305136 Air Deflector L.H.Air Deflector L.H.
-
13250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
14250200025 Washer M5Washer M5
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
16517303756 GrommetGrommet
-
17517303756 GrommetGrommet
