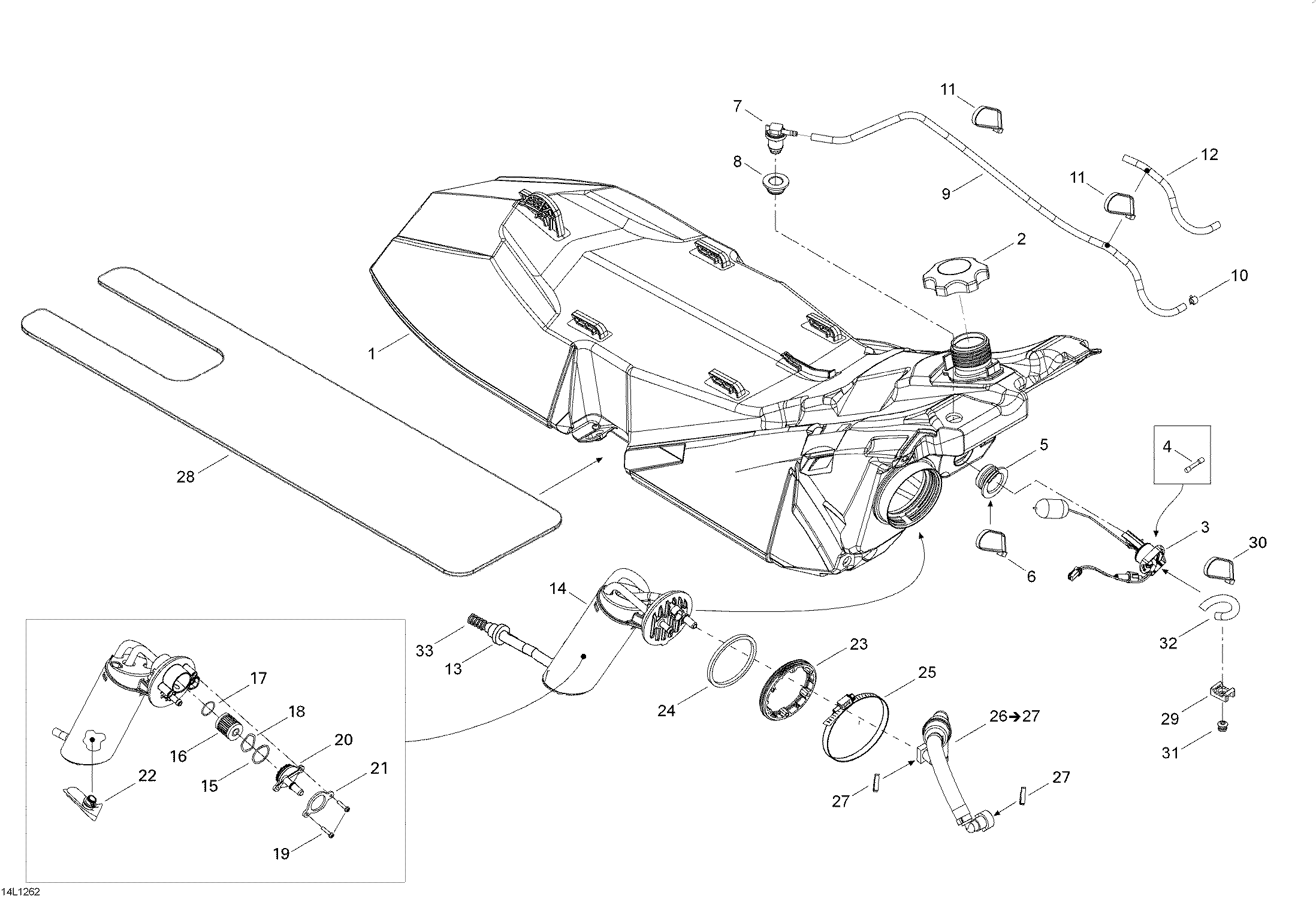

02- Fuel System для BRP Lynx Adventure LX 600 ACE - 2012
-
№АртикулНазвание
-
1513033610 Fuel TankFuel Tank
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033642 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
4710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
5513033606 GrommetGrommet
-
6293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
7513033188 Check ValveCheck Valve
-
8513033596 GrommetGrommet
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
10414554800 Spring ClampSpring Clamp
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12504152900 Protector TubeProtector Tube
-
1328037 GrommetGrommet
-
14513033694 Fuel Pump Ass'yFuel Pump Ass'y
-
15415129509 O-RingO-Ring
-
16415129510 Fuel FilterFuel Filter
-
17415129511 O-RingO-Ring
-
18415129512 Wave WasherWave Washer
-
19415129513 ScrewScrew
-
20415129685 CoverCover
-
21415129569 Fuel Pump RingFuel Pump Ring
-
22415129451 Fuel FilterFuel Filter
-
23513033180 RingRing
-
24513033334 GasketGasket
-
2527048 ClampClamp
-
26513033582 Hose Ass'yHose Ass'y
-
27513033135 Locking ClipLocking Clip
-
28513033588 Insulating FoamInsulating Foam
-
29515176795 ClipClip
-
30293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
31390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
32415079900 Tubing 10 mmTubing 10 mm
-
33414872100 Fuel FilterFuel Filter
