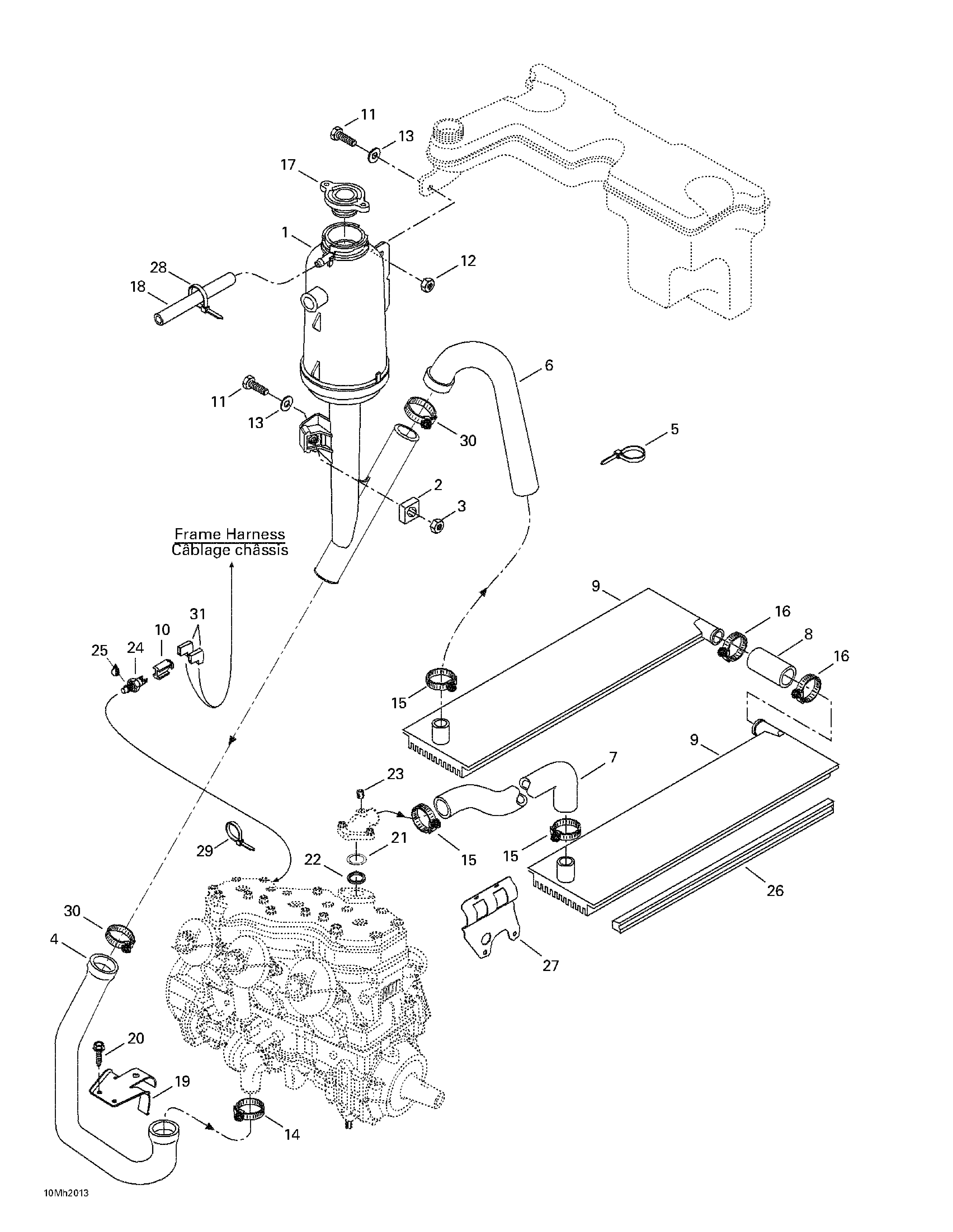

01- Cooling System для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1509000049 Coolant Tank Ass'y. Includes 1 - 3.Coolant Tank Ass'y. Includes 1 - 3.
-
2269500252 Housing Nut Ass'y. Includes 2 - 3.Housing Nut Ass'y. Includes 2 - 3.
-
3232061600 Hex. Nut M6Hex. Nut M6
-
4509000026 Engine Inlet HoseEngine Inlet Hose
-
5293750008 Tie Rap 350 mmTie Rap 350 mm
-
6415047000 Radiator Outlet HoseRadiator Outlet Hose
-
7415047100 Radiator Inlet HoseRadiator Inlet Hose
-
8414795800 Radiator HoseRadiator Hose
-
9517280510 R.H. RadiatorR.H. Radiator
-
517280511 L.H. RadiatorL.H. Radiator
-
10515175297 Connector PlugConnector Plug
-
11207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13224061121 Flat WasherFlat Washer
-
14293650098 Tridon Gear ClampTridon Gear Clamp
-
15408800400 Tridon Gear ClampTridon Gear Clamp
-
16408803400 Tridon Gear ClampTridon Gear Clamp
-
17414684700 Pressure CapPressure Cap
-
18415080200 LineLine
-
19509000037 Hose ProtectorHose Protector
-
20210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
21420927745 Retaining DiskRetaining Disk
-
22420931270 Sealing RingSealing Ring
-
23420240480 Plug ScrewPlug Screw
-
24414728700 Temperature SensorTemperature Sensor
-
25293800018 Loctite 592 Pipe Sealant, 50 mlLoctite 592 Pipe Sealant, 50 ml
-
26415056500 Radiator ProtectorRadiator Protector
-
27509000042 Hose ProtectorHose Protector
-
28414115200 Tie RapTie Rap
-
29293750002 Tie Rap 130 mmTie Rap 130 mm
-
30509000045 Oetiker Gear ClampOetiker Gear Clamp
-
31409010300 Female TerminalFemale Terminal
