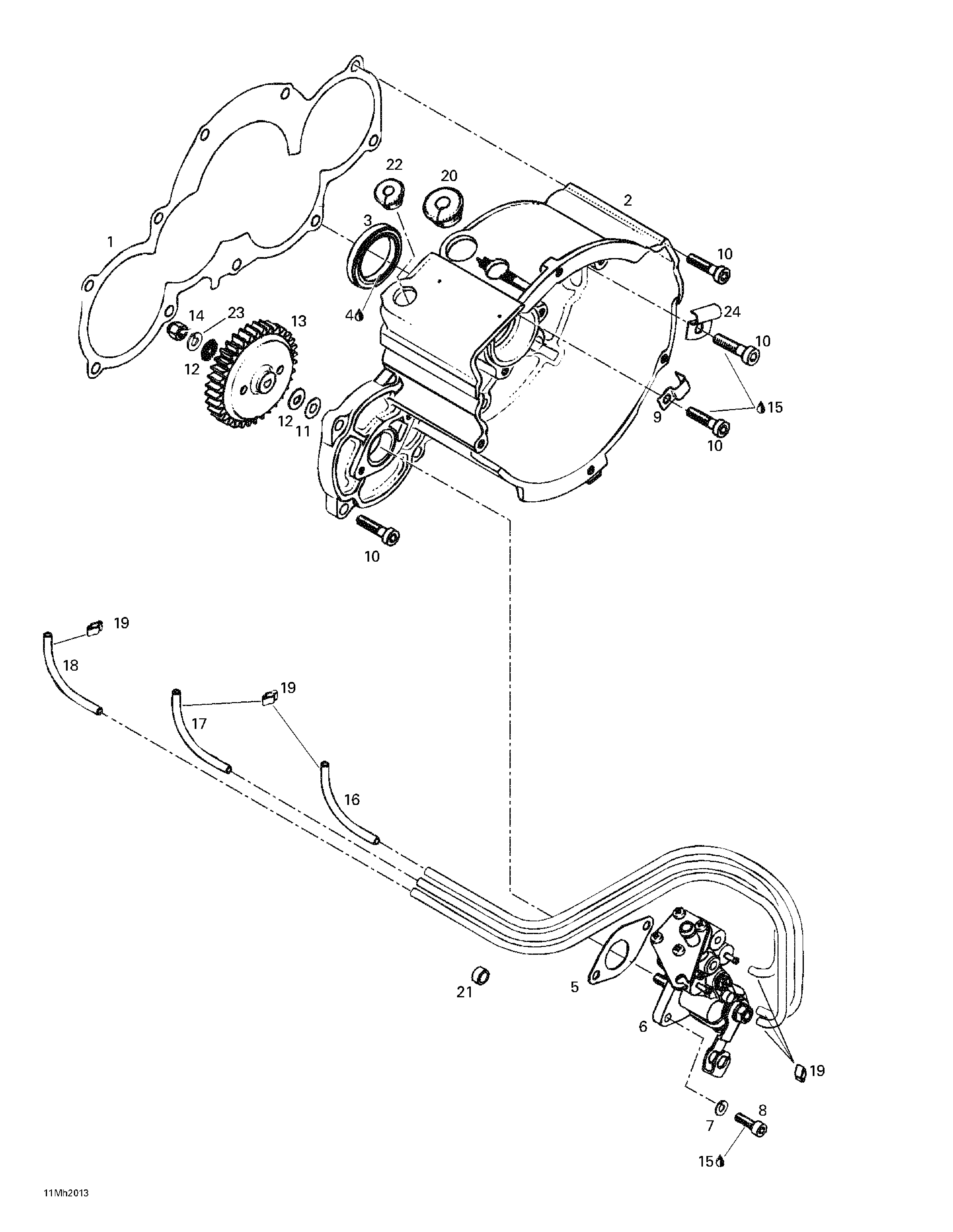

03- Ignition Housing Oil Pump для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1420950282 GasketGasket
-
2420811312 Ignition HousingIgnition Housing
-
3420931290 Oil-SealOil-Seal
-
4413707000 Molykote 111Molykote 111
-
5420950460 GasketGasket
-
6420887932 Oil pump Ass'y. Formula III 700 R.Oil pump Ass'y. Formula III 700 R.
-
420887935 Oil pump Ass'y. Formula III 800.Oil pump Ass'y. Formula III 800.
-
7420945750 Lock WasherLock Washer
-
8420640071 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
9420953387 ClampClamp
-
10420941691 Cylindrical Screw M6 x 25Cylindrical Screw M6 x 25
-
11420244215 WasherWasher
-
12420227150 WasherWasher
-
13420834270 Oil pump Gear (36 Teeth)Oil pump Gear (36 Teeth)
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16414413800 Oil LineOil Line
-
17414413800 Oil LineOil Line
-
18414413800 Oil LineOil Line
-
19420256408 ClampClamp
-
20420860965 Cable GrommetCable Grommet
-
21420960700 Rubber RingRubber Ring
-
22420860968 Cable GrommetCable Grommet
-
420860967 Cable GrommetCable Grommet
-
23420945751 Lock Washer 6 mmLock Washer 6 mm
-
24420953382 ClampClamp
