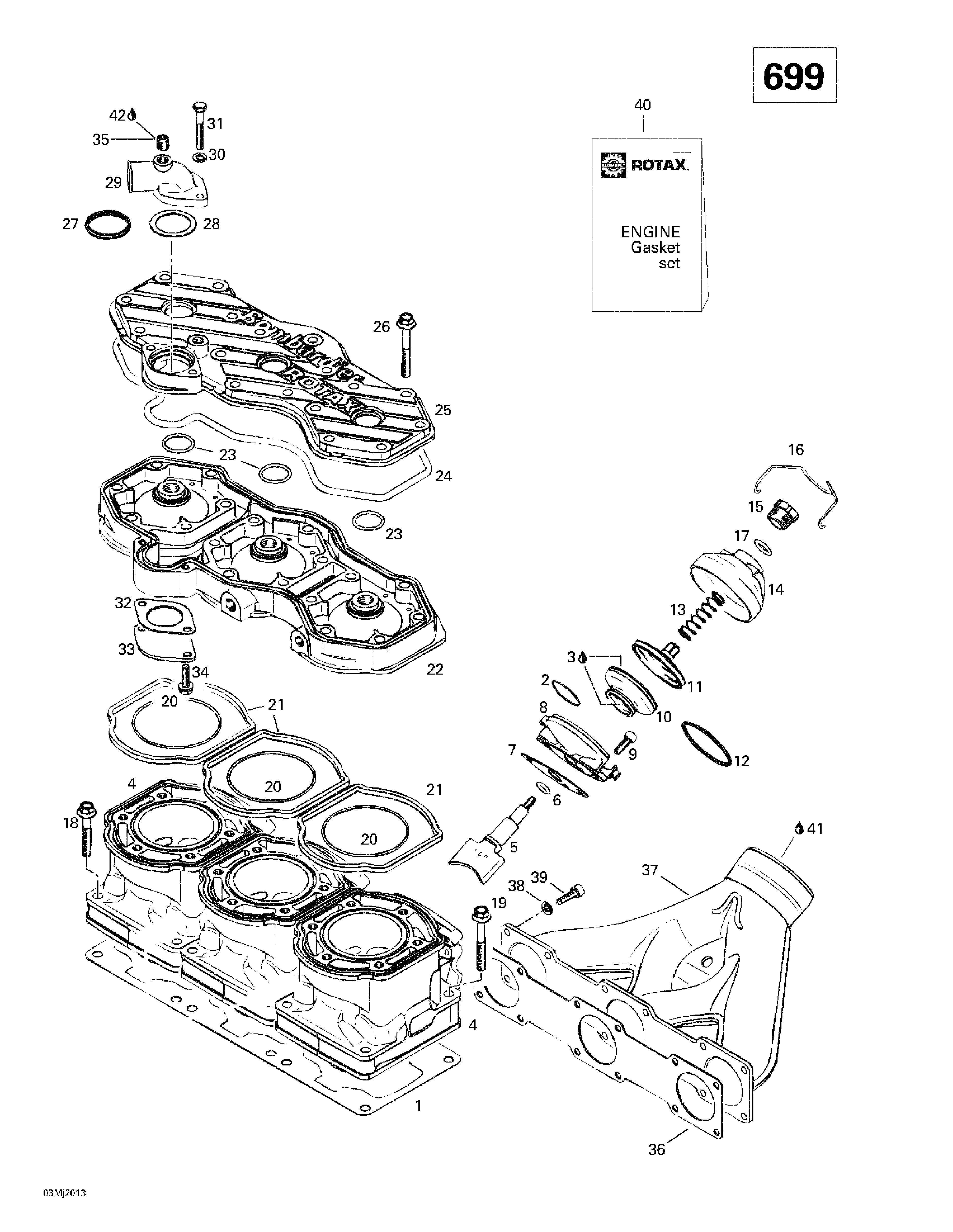

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1420931572 Gasket 0.6 mm. Formula III 700 R.Gasket 0.6 mm. Formula III 700 R.
-
420931571 Gasket 0.4 mm. Formula III 700 R.Gasket 0.4 mm. Formula III 700 R.
-
420931570 Gasket 0.3 mm. Formula III 700 R.Gasket 0.3 mm. Formula III 700 R.
-
2420838253 Spring Clamp. Formula III 700 R.Spring Clamp. Formula III 700 R.
-
3413707000 Molykote 111. Formula III 700 R.Molykote 111. Formula III 700 R.
-
4420923420 Cylinder (Nicasil Coated). Formula III 700 R.Cylinder (Nicasil Coated). Formula III 700 R.
-
5420854307 Exhaust Valve. Formula III 700 R.Exhaust Valve. Formula III 700 R.
-
6420430110 O-Ring. Formula III 700 R.O-Ring. Formula III 700 R.
-
7420250239 Gasket. Formula III 700 R.Gasket. Formula III 700 R.
-
8420854265 Valve Housing. Formula III 700 R.Valve Housing. Formula III 700 R.
-
9420241236 Socket Head Screw M6 x 16. Formula III 700 R.Socket Head Screw M6 x 16. Formula III 700 R.
-
10290260723 Bellows. Formula III 700 R.Bellows. Formula III 700 R.
-
11420854448 Exhaust Valve. Formula III 700 R.Exhaust Valve. Formula III 700 R.
-
12290239048 Hose Spring. Formula III 700 R.Hose Spring. Formula III 700 R.
-
13420239945 Spring. Formula III 700 R.Spring. Formula III 700 R.
-
14420911551 Valve Cover. Formula III 700 R.Valve Cover. Formula III 700 R.
-
15420241221 Adjuster Screw. Formula III 700 R.Adjuster Screw. Formula III 700 R.
-
16420838082 Spring Clip. Formula III 700 R.Spring Clip. Formula III 700 R.
-
17420430220 O-Ring. Formula III 700 R.O-Ring. Formula III 700 R.
-
18420640431 Collar-Hex. Screw M8 x 45. Formula III 700 R.Collar-Hex. Screw M8 x 45. Formula III 700 R.
-
19420640441 Collar-Hex. Screw M8 x 53.5. Formula III 700 R.Collar-Hex. Screw M8 x 53.5. Formula III 700 R.
-
20420831792 O-Ring. Formula III 700 R.O-Ring. Formula III 700 R.
-
21420931320 Seal Ring. Formula III 700 R.Seal Ring. Formula III 700 R.
-
22420923128 Cylinder Head (Silver). Formula III 700 R.Cylinder Head (Silver). Formula III 700 R.
-
23420430782 O-Ring. Formula III 700 R.O-Ring. Formula III 700 R.
-
24420931330 O-Ring. Formula III 700 R.O-Ring. Formula III 700 R.
-
25420923134 Cylinder Head Cover (Silver). Formula III 700 R.Cylinder Head Cover (Silver). Formula III 700 R.
-
26420941621 Collar Hex. Screw M8 x 56.5. Formula III 700 R.Collar Hex. Screw M8 x 56.5. Formula III 700 R.
-
27420931270 Sealing Ring. Formula III 700 R.Sealing Ring. Formula III 700 R.
-
28420927745 Retaining Disk. Formula III 700 R.Retaining Disk. Formula III 700 R.
-
29420922485 Exhaust Socket. Formula III 700 R.Exhaust Socket. Formula III 700 R.
-
30420945751 Lock Washer 6 mm. Formula III 700 R.Lock Washer 6 mm. Formula III 700 R.
-
31207064044 Hex. Screw M6 x 40. Formula III 700 R.Hex. Screw M6 x 40. Formula III 700 R.
-
32420850336 Gasket 1.0 mm. Formula III 700 R.Gasket 1.0 mm. Formula III 700 R.
-
33420926260 Cover. Formula III 700 R.Cover. Formula III 700 R.
-
34420240580 Taptite-Screw M6 x 16. Formula III 700 R.Taptite-Screw M6 x 16. Formula III 700 R.
-
35420240480 Plug Screw. Formula III 700 R.Plug Screw. Formula III 700 R.
-
36420931740 Gasket. Formula III 700 R.Gasket. Formula III 700 R.
-
37420979610 Exhaust Socket. Formula III 700 R.Exhaust Socket. Formula III 700 R.
-
38234161471 Lock Washer 6 mm. Formula III 700 R.Lock Washer 6 mm. Formula III 700 R.
-
39205062544 Socket Head Screw M6 x 25. Formula III 700 R.Socket Head Screw M6 x 25. Formula III 700 R.
-
40420886313 Gasket Set. Formula III 700 R.Gasket Set. Formula III 700 R.
-
41293800023 Loctite Antiseize 76764, 454 gr. Formula III 700 R.Loctite Antiseize 76764, 454 gr. Formula III 700 R.
-
42293800060 Loctite 243, 10 ml. Formula III 700 R.Loctite 243, 10 ml. Formula III 700 R.
