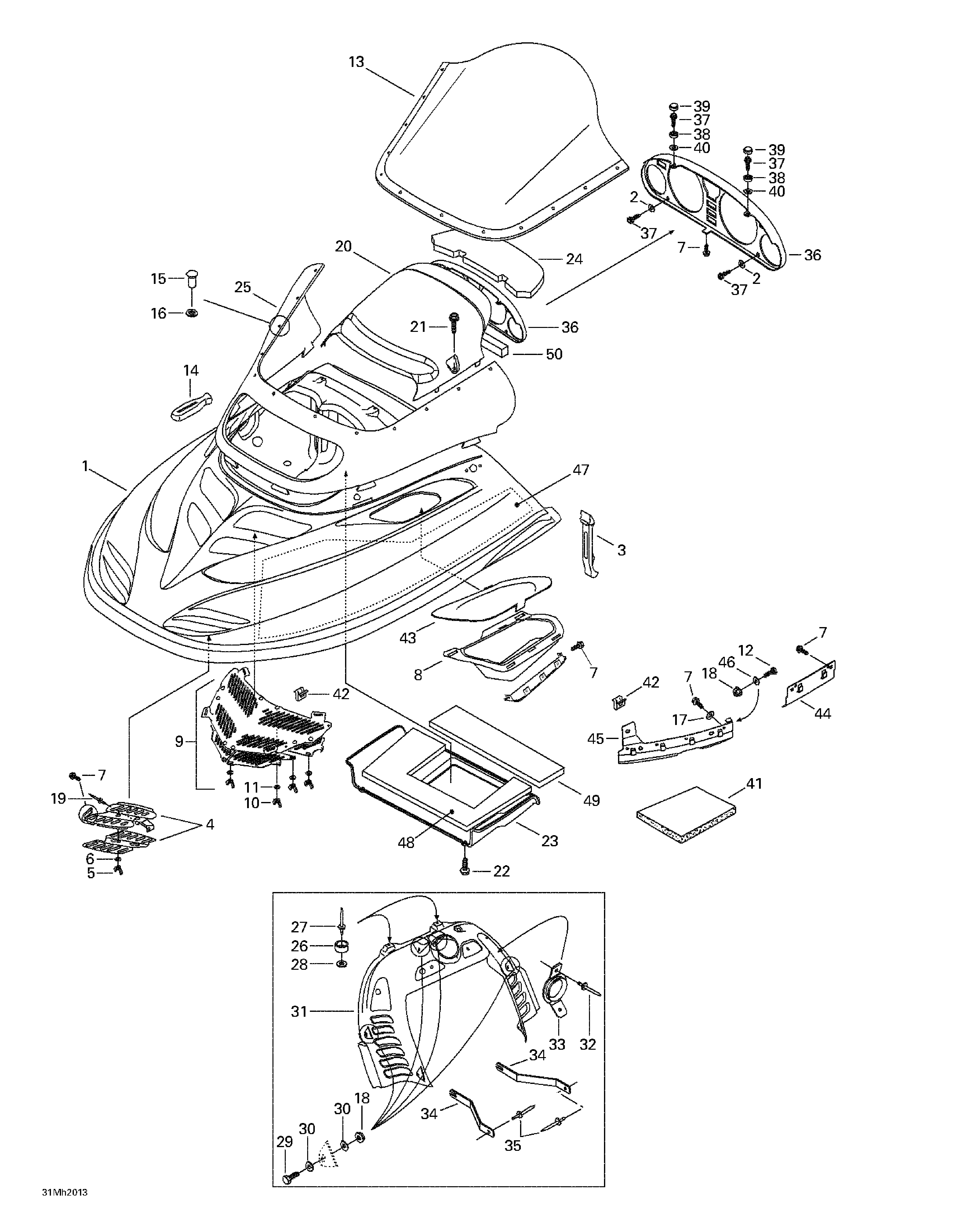

09- Cab, Console для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1517302172 Hood (Pearl Purple)Hood (Pearl Purple)
-
2517124300 WasherWasher
-
3517302152 Hood LatchHood Latch
-
4517302205 R.H. Front Grill Ass'y. Includes 4 - 6.R.H. Front Grill Ass'y. Includes 4 - 6.
-
517302208 L.H. Front Grill Ass'yL.H. Front Grill Ass'y
-
5414070300 Wing Nut M5Wing Nut M5
-
6224151101 Lock Washer 5 mmLock Washer 5 mm
-
7732601210 Hex. Tapping ScrewHex. Tapping Screw
-
8517302155 Inlet DuctInlet Duct
-
9517302073 Center Grill Ass'y. Includes 9 - 11.Center Grill Ass'y. Includes 9 - 11.
-
10414070300 Wing Nut M5Wing Nut M5
-
11391301700 Lock Washer 5 mmLock Washer 5 mm
-
12207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
13415045800 Low WindshieldLow Windshield
-
14570023800 Windshield LatchWindshield Latch
-
15572103500 StudStud
-
16732610072 Push NutPush Nut
-
17391301700 Flat WasherFlat Washer
-
18232251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19390402400 Pop RivetPop Rivet
-
20572107300 Air Intake DeflectorAir Intake Deflector
-
21414745900 ScrewScrew
-
22243141640 Hex. Plastic Screw M4.8 x 16Hex. Plastic Screw M4.8 x 16
-
23572087800 Air Intake Deflector PlateAir Intake Deflector Plate
-
24415123100 Filter FoamFilter Foam
-
25517302076 Windshield SupportWindshield Support
-
26415018100 Rubber StopperRubber Stopper
-
27390401600 Pop RivetPop Rivet
-
28293150007 WasherWasher
-
29207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
30391301600 Flat WasherFlat Washer
-
31517302138 Console. Formula III 800.Console. Formula III 800.
-
517302315 Console. Formula III 700 R.Console. Formula III 700 R.
-
32390409400 Pop RivetPop Rivet
-
33517296800 Rope GuideRope Guide
-
34517296900 BracketBracket
-
36572098600 Indicator SupportIndicator Support
-
37241140060 Screw K40 x 10Screw K40 x 10
-
38414436800 Retainer CapRetainer Cap
-
39414436900 Snap CapSnap Cap
-
40217042600 Flat Washer 4 mmFlat Washer 4 mm
-
41414632400 Foam-Acoustic (74 x 34 x 1/2 Thk)Foam-Acoustic (74 x 34 x 1/2 Thk)
-
414631900 Foam-Acoustic (74 x 34 x 1 Thk)Foam-Acoustic (74 x 34 x 1 Thk)
-
42517302183 ClipClip
-
43517302156 R.H. GrillR.H. Grill
-
517302167 L.H. GrillL.H. Grill
-
44517302108 GuideGuide
-
45517301200 R.H. Hood GuideR.H. Hood Guide
-
517301300 L.H. Hood GuideL.H. Hood Guide
-
46420845270 WasherWasher
-
47517302184 L.H. Side FoamL.H. Side Foam
-
415045100 R.H. Side FoamR.H. Side Foam
-
48415045300 Center FoamCenter Foam
-
49415045400 Rear FoamRear Foam
-
50415045500 Deflector FoamDeflector Foam
-
51517302414 PlatePlate
