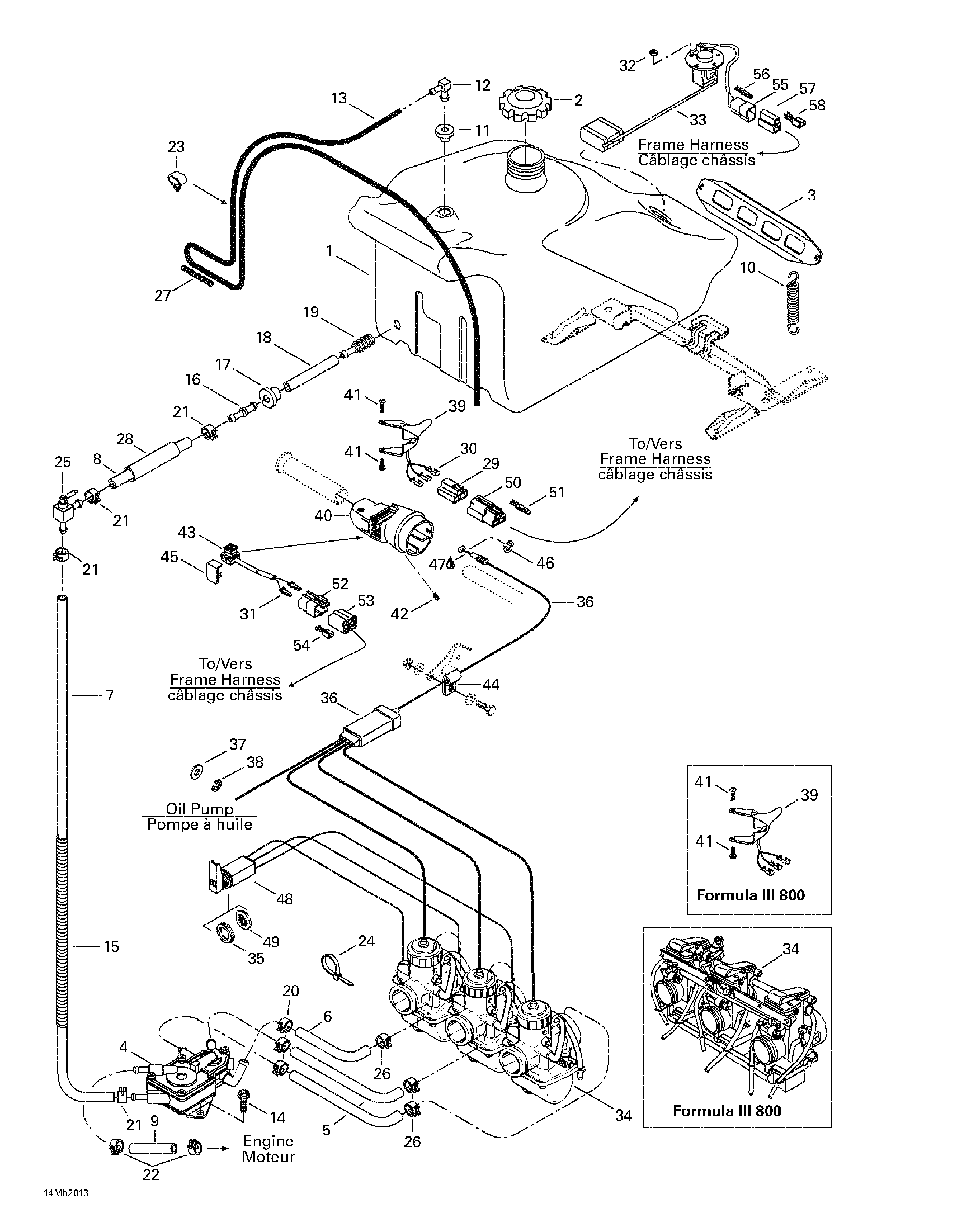

02- Fuel Tank для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1513032925 Fuel TankFuel Tank
-
2572073900 Fuel CapFuel Cap
-
3517249200 Fuel Tank BracketFuel Tank Bracket
-
4513032929 Fuel PumpFuel Pump
-
5415117800 Formed Tube. Formula III 700 R.Formed Tube. Formula III 700 R.
-
415080200 Line. Formula III 800.Line. Formula III 800.
-
6415117900 Formed Tube. Formula III 700 R.Formed Tube. Formula III 700 R.
-
415120800 Formed Hose. Formula III 800.Formed Hose. Formula III 800.
-
7513032949 Formed HoseFormed Hose
-
8513032965 HoseHose
-
9415079800 Rubber HoseRubber Hose
-
10414893700 SpringSpring
-
11513032908 GrommetGrommet
-
12414814100 Male ConnectorMale Connector
-
13415080100 Primer LinePrimer Line
-
14210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
15415080000 TubingTubing
-
16414872700 Male ConnectorMale Connector
-
17570273900 GrommetGrommet
-
18415097800 HoseHose
-
19414872100 Fuel FilterFuel Filter
-
20414420700 Spring ClampSpring Clamp
-
21414655700 Spring ClampSpring Clamp
-
22414415200 Spring ClampSpring Clamp
-
23513032923 Tie-RapTie-Rap
-
24414115200 Tie-Rap. Formula III 800Tie-Rap. Formula III 800
-
25415112200 Shut-off ValveShut-off Valve
-
26414554800 Spring ClampSpring Clamp
-
27513032961 SpringSpring
-
28513032941 Hose (Rubber)Hose (Rubber)
-
29409008500 Female Connector HousingFemale Connector Housing
-
30515175253 Female TerminalFemale Terminal
-
31409210000 Male TerminalMale Terminal
-
32232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
33415080800 Fuel Sensor Ass'yFuel Sensor Ass'y
-
34403138634 VM-38 Carburetor. Formula III 700 R.VM-38 Carburetor. Formula III 700 R.
-
403138611 VM-38-435 Carburetor. Formula III 700 R.VM-38-435 Carburetor. Formula III 700 R.
-
403138632 TM-38-C297 Carburetor Kit. Formula III 800.TM-38-C297 Carburetor Kit. Formula III 800.
-
35414977200 Plastic NutPlastic Nut
-
36512059020 Throttle Cable. Formula III 700 R.Throttle Cable. Formula III 700 R.
-
512059059 Throttle Cable. Formula III 800.Throttle Cable. Formula III 800.
-
37414753300 WasherWasher
-
38414753500 CirclipCirclip
-
39512059162 Heat Throttle Handle ass'y (38 mm). Formula III 700 R.Heat Throttle Handle ass'y (38 mm). Formula III 700 R.
-
572053500 Heat Throttle Handle (38 mm). Formula III 700 R.Heat Throttle Handle (38 mm). Formula III 700 R.
-
572073100 Heat Throttle Handle (26 mm). Formula III 800.Heat Throttle Handle (26 mm). Formula III 800.
-
40512059243 Throttle Handle Housing. Formula III 700 R.Throttle Handle Housing. Formula III 700 R.
-
572098800 Throttle Handle Housing. Formula III 800.Throttle Handle Housing. Formula III 800.
-
41732601143 Shoulder ScrewShoulder Screw
-
42414440800 Set Screw M8 x 10Set Screw M8 x 10
-
43512059146 Kill SwitchKill Switch
-
44414176000 ClipClip
-
45572100901 Switch CoverSwitch Cover
-
46414274500 CirclipCirclip
-
47293550004 Grease Dielectric, 150 grGrease Dielectric, 150 gr
-
48415077700 Choke Cable. Formula III 700 R.Choke Cable. Formula III 700 R.
-
561723000 Choke Cable. Formula III 800.Choke Cable. Formula III 800.
-
49394103300 Internal Tooth Lock WasherInternal Tooth Lock Washer
-
50409008600 Male Housing 3 cMale Housing 3 c
-
51409206100 Male TerminalMale Terminal
-
52409209300 Male Housing 4 cMale Housing 4 c
-
53409204900 Female Housing 4 cFemale Housing 4 c
-
54409205000 Female TerminalFemale Terminal
-
55409204500 Male Housing 2 cMale Housing 2 c
-
56561503400 Male TerminalMale Terminal
-
57409204600 Female Housing 2 cFemale Housing 2 c
-
58561503100 Female TerminalFemale Terminal
