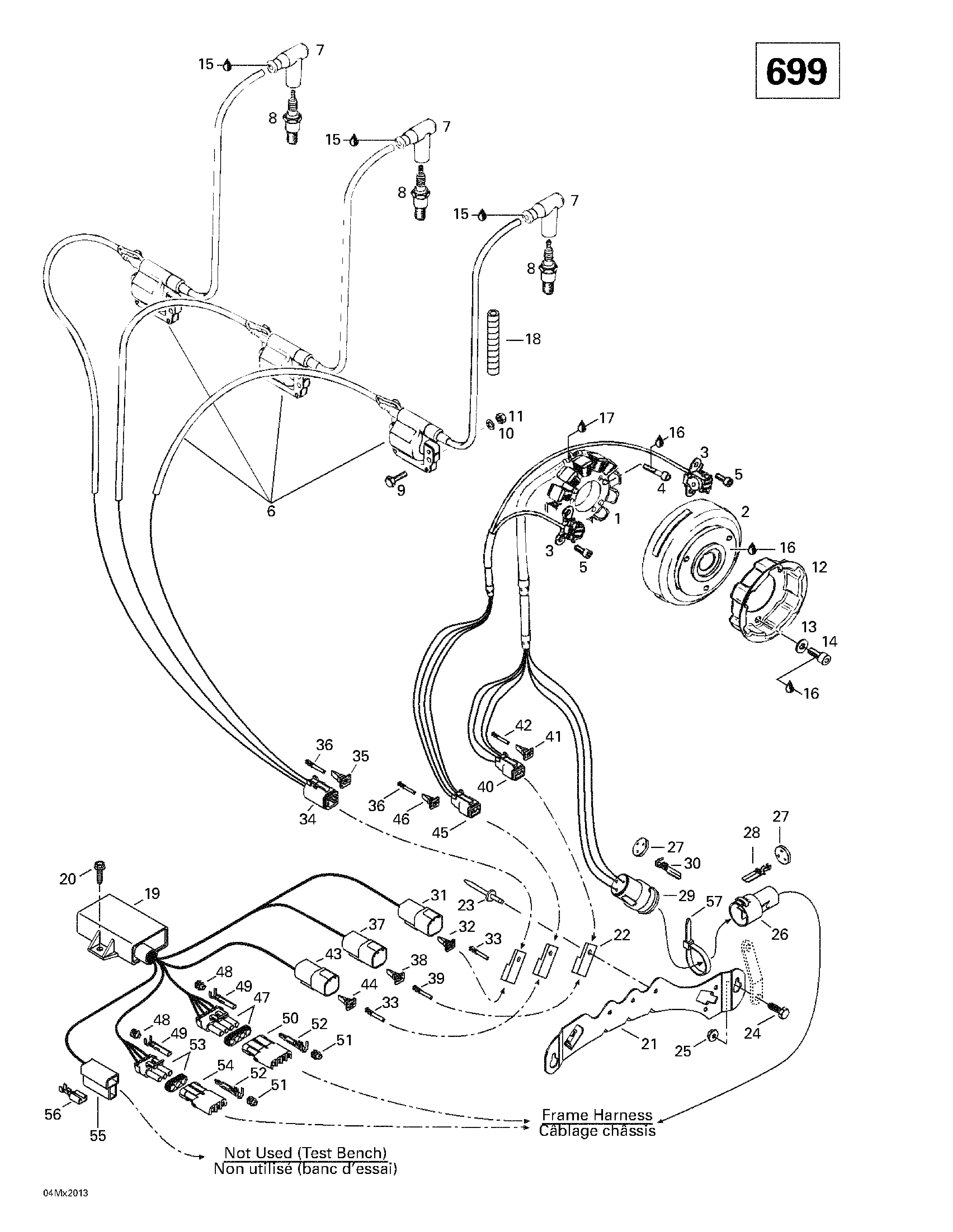

03- Magneto (12V, 290W) для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1410922927 Stator Ass'y. Formula III 700 R.Stator Ass'y. Formula III 700 R.
-
2410922930 Magneto Flywheel. Formula III 700 R.Magneto Flywheel. Formula III 700 R.
-
3410922909 Pick Up Ass'y. Formula III 700 R.Pick Up Ass'y. Formula III 700 R.
-
4420840886 Cylinder Screw M6 x 30. Formula III 700 R.Cylinder Screw M6 x 30. Formula III 700 R.
-
5420840391 Tapping Screw M6 x 14. Formula III 700 R.Tapping Screw M6 x 14. Formula III 700 R.
-
6420966705 Ignition Coil. Includes 6 - 7. Formula III 700 R.Ignition Coil. Includes 6 - 7. Formula III 700 R.
-
7278000237 Spark Plug Cap. Formula III 700 R.Spark Plug Cap. Formula III 700 R.
-
8414961100 Spark Plug (NGK BR9-ES). Formula III 700 R.Spark Plug (NGK BR9-ES). Formula III 700 R.
-
9207162044 Hex. Screw M6 x 20. Formula III 700 R.Hex. Screw M6 x 20. Formula III 700 R.
-
10420945751 Lock Washer 6 mm. Formula III 700 R.Lock Washer 6 mm. Formula III 700 R.
-
11232061414 Hex. Nut M6. Formula III 700 R.Hex. Nut M6. Formula III 700 R.
-
12420852418 Starting Pulley. Formula III 700 R.Starting Pulley. Formula III 700 R.
-
13420827405 Flat Washer. Formula III 700 R.Flat Washer. Formula III 700 R.
-
14420841520 Allen Screw M8 x 12. Formula III 700 R.Allen Screw M8 x 12. Formula III 700 R.
-
15293550004 Dielectric Grease, 150 g. Formula III 700 R.Dielectric Grease, 150 g. Formula III 700 R.
-
16293800060 Loctite 243, 10 ml. Formula III 700 R.Loctite 243, 10 ml. Formula III 700 R.
-
17296000309 Sealant Silicone, Clear. Formula III 700 R.Sealant Silicone, Clear. Formula III 700 R.
-
18415079900 Tubing. Formula III 700 R.Tubing. Formula III 700 R.
-
19515175433 Calibration Module. Formula III 700 R.Calibration Module. Formula III 700 R.
-
20243141640 Hex. Screw M4.8. Formula III 700 R.Hex. Screw M4.8. Formula III 700 R.
-
21515175148 Housing Support. Formula III 700 R.Housing Support. Formula III 700 R.
-
22270000141 Clip. Formula III 700 R.Clip. Formula III 700 R.
-
24207151444 Hex. Screw M5 x 14. Formula III 700 R.Hex. Screw M5 x 14. Formula III 700 R.
-
25233251414 Elastic Flanged Nut M5. Formula III 700 R.Elastic Flanged Nut M5. Formula III 700 R.
-
26409207900 Male Terminal Housing (3 circuits). Formula III 700 R.Male Terminal Housing (3 circuits). Formula III 700 R.
-
27409208500 Seal. Formula III 700 R.Seal. Formula III 700 R.
-
28409011100 Male Terminal. Formula III 700 R.Male Terminal. Formula III 700 R.
-
29409208200 Female Terminal Housing (3 circuits). Formula III 700 R.Female Terminal Housing (3 circuits). Formula III 700 R.
-
30409011900 Female Terminal. Formula III 700 R.Female Terminal. Formula III 700 R.
-
31270000137 Male Terminal Housing (6 circuits). Formula III 700 R.Male Terminal Housing (6 circuits). Formula III 700 R.
-
32278000735 (Female) Secondary Lock (6 Circuits) (Deutsch). Formula III 700 R.(Female) Secondary Lock (6 Circuits) (Deutsch). Formula III 700 R.
-
33278000631 Male Terminal. Formula III 700 R.Male Terminal. Formula III 700 R.
-
34278000736 Female Terminal Housing (6 circuits). Formula III 700 R.Female Terminal Housing (6 circuits). Formula III 700 R.
-
35278000737 (Female) Secondary Lock (6 Circuits) (Deutsch). Formula III 700 R.(Female) Secondary Lock (6 Circuits) (Deutsch). Formula III 700 R.
-
36278000632 Female Terminal. Formula III 700 R.Female Terminal. Formula III 700 R.
-
37710000045 Male Terminal Housing (4 circuits). Formula III 700 R.Male Terminal Housing (4 circuits). Formula III 700 R.
-
38710000046 Male Lock (4 circuits). Formula III 700 R.Male Lock (4 circuits). Formula III 700 R.
-
39409014800 Male Terminal. Formula III 700 R.Male Terminal. Formula III 700 R.
-
40515175245 Female Terminal Housing (4 circuits). Formula III 700 R.Female Terminal Housing (4 circuits). Formula III 700 R.
-
41515175246 Female Lock (4 circuits). Formula III 700 R.Female Lock (4 circuits). Formula III 700 R.
-
42409015100 Female Terminal. Formula III 700 R.Female Terminal. Formula III 700 R.
-
43278000635 Male Terminal Housing (4 circuits). Formula III 700 R.Male Terminal Housing (4 circuits). Formula III 700 R.
-
44278000636 (Female) Secondary Lock (4 Circuits) (Deutsch). Formula III 700 R.(Female) Secondary Lock (4 Circuits) (Deutsch). Formula III 700 R.
-
45278000739 Female Terminal Housing (4 circuits). Formula III 700 R.Female Terminal Housing (4 circuits). Formula III 700 R.
-
46278000738 Female Lock (4 circuits). Formula III 700 R.Female Lock (4 circuits). Formula III 700 R.
-
47278000395 Female Terminal Housing (4 circuits). Formula III 700 R.Female Terminal Housing (4 circuits). Formula III 700 R.
-
48278000218 Seal. Formula III 700 R.Seal. Formula III 700 R.
-
49278000223 Female Terminal. Formula III 700 R.Female Terminal. Formula III 700 R.
-
50278000394 Male Terminal Housing (4 circuits). Formula III 700 R.Male Terminal Housing (4 circuits). Formula III 700 R.
-
51409208300 Seal. Formula III 700 R.Seal. Formula III 700 R.
-
52278000222 Male Terminal. Formula III 700 R.Male Terminal. Formula III 700 R.
-
53278000273 Female Terminal Housing (3 circuits). Formula III 700 R.Female Terminal Housing (3 circuits). Formula III 700 R.
-
54278000281 Male Terminal Housing (3 circuits). Formula III 700 R.Male Terminal Housing (3 circuits). Formula III 700 R.
-
55409204600 Female Terminal Housing (2 circuits). Formula III 700 R.Female Terminal Housing (2 circuits). Formula III 700 R.
-
56515175252 Female Terminal. Formula III 700 R.Female Terminal. Formula III 700 R.
-
57414115200 Tie Rap 180 mm. Formula III 700 R.Tie Rap 180 mm. Formula III 700 R.
