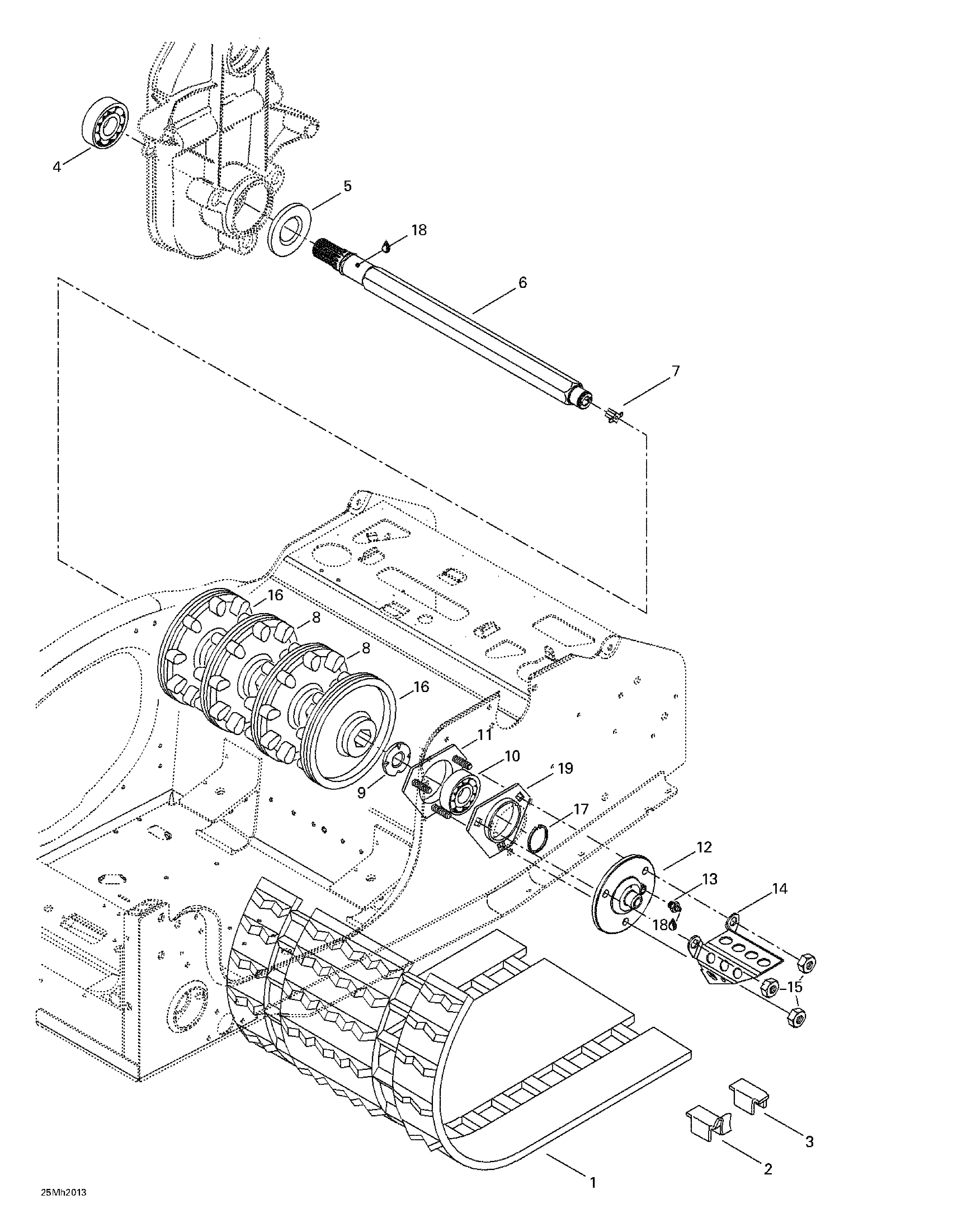

05- Drive Axle And Track для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1504151802 Track Ass'y. Includes 1 - 3.Track Ass'y. Includes 1 - 3.
-
2500003400 Guide CleatGuide Cleat
-
3504151828 CleatCleat
-
4405403900 Ball Bearing, 6206Ball Bearing, 6206
-
5504151925 Oil Seal Ass'yOil Seal Ass'y
-
6501026500 Drive AxleDrive Axle
-
7572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
8414663900 9-Tooth Sprocket9-Tooth Sprocket
-
9501017400 Ball Bearing ProtectorBall Bearing Protector
-
10405408600 Ball BearingBall Bearing
-
11504151860 Bearing HousingBearing Housing
-
12504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
13408200700 Grease FittingGrease Fitting
-
14517290100 Cable ProtectorCable Protector
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16414990800 9-Tooth Half Sprocket9-Tooth Half Sprocket
-
17371910200 CirclipCirclip
-
18219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
19501025000 FlangeFlange
