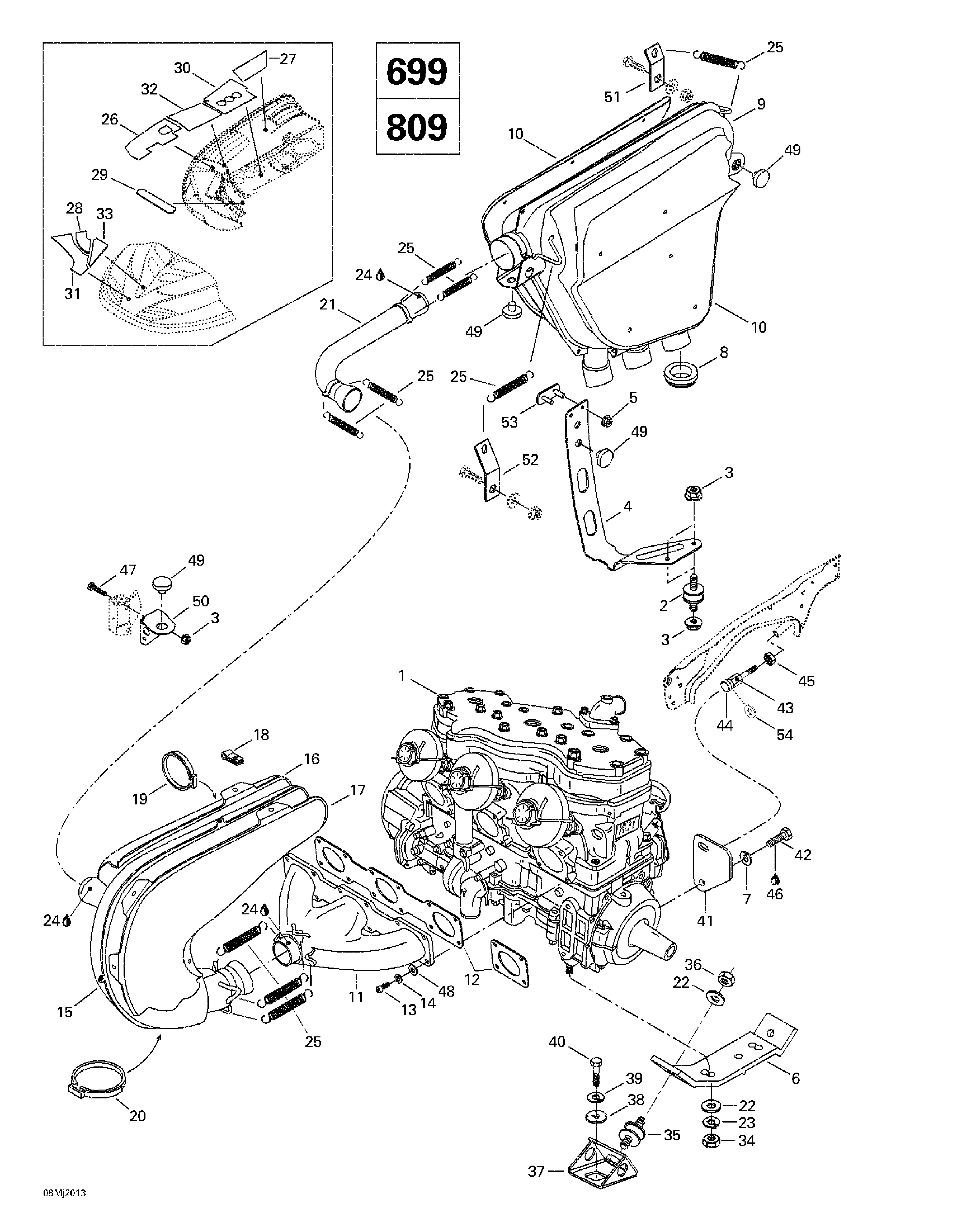

01- Engine Support And Muffler для BRP Ski-Doo Formula III 800 - 2000
-
№АртикулНазвание
-
1400604014 Engine >. Formula III 700 R.Engine >. Formula III 700 R.
-
400800308 Engine >. Formula III 800.Engine >. Formula III 800.
-
2514052838 Rubber MountRubber Mount
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4514052887 SupportSupport
-
5233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
6512059088 Engine Support. Formula III 700 R.Engine Support. Formula III 700 R.
-
512059089 Engine Support (MAG). Formula III 800.Engine Support (MAG). Formula III 800.
-
512059090 Engine Support (PTO). Formula III 800.Engine Support (PTO). Formula III 800.
-
7234181401 Lock Washer 8 mmLock Washer 8 mm
-
8570066200 Exhaust GrommetExhaust Grommet
-
9514053052 Muffler. Includes 9 - 10.Muffler. Includes 9 - 10.
-
10514052900 R.H. Heat ShieldR.H. Heat Shield
-
514047200 L.H. Heat ShieldL.H. Heat Shield
-
11420979610 Exhaust Socket. Formula III 700 R.Exhaust Socket. Formula III 700 R.
-
420979970 Exhaust Socket. Formula III 800.Exhaust Socket. Formula III 800.
-
12420931740 Gasket. Formula III 700 R.Gasket. Formula III 700 R.
-
420850552 Gasket. Formula III 800.Gasket. Formula III 800.
-
13205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
14234161471 Lock Washer 6 mmLock Washer 6 mm
-
15514053070 Tuned Pipe. Includes 15 - 20.Tuned Pipe. Includes 15 - 20.
-
16514097806 Lower ShellLower Shell
-
17514097807 Upper ShellUpper Shell
-
18514046503 CleatCleat
-
19514052962 Gear ClampGear Clamp
-
20514052902 Gear ClampGear Clamp
-
21514052801 Tail PipeTail Pipe
-
22234001410 Washer 10 mmWasher 10 mm
-
23234100602 Lock Washer 10 mmLock Washer 10 mm
-
24293800023 Antiseize Loctite 767, 454grAntiseize Loctite 767, 454gr
-
25415107100 SpringSpring
-
26514098000 Reflective SheetReflective Sheet
-
27415083800 Reflective SheetReflective Sheet
-
28415114800 R.H. Reflective SheetR.H. Reflective Sheet
-
415114900 L.H. Reflective SheetL.H. Reflective Sheet
-
29415111900 Reflective SheetReflective Sheet
-
30415115000 Reflective SheetReflective Sheet
-
31415112300 R.H. Reflective SheetR.H. Reflective Sheet
-
415112400 L.H. Reflective SheetL.H. Reflective Sheet
-
32415084000 Reflective SheetReflective Sheet
-
33415112500 R.H. Reflective SheetR.H. Reflective Sheet
-
415112600 L.H. Reflective SheetL.H. Reflective Sheet
-
34232006414 Nut M10Nut M10
-
35570127700 Rubber MountRubber Mount
-
36233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
37512050900 Engine SupportEngine Support
-
38512056700 Lock WasherLock Washer
-
39234100602 Lock Washer 10 mmLock Washer 10 mm
-
40207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
41512056000 Stopper PlateStopper Plate
-
42207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
43512056900 Stopper ScrewStopper Screw
-
44512059055 StopperStopper
-
45232120414 Jam Nut M12Jam Nut M12
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
48234061410 Flat Washer 6 mm. Formula III 800.Flat Washer 6 mm. Formula III 800.
-
49570048700 Rubber BumperRubber Bumper
-
50514049900 Pipe SupportPipe Support
-
51514051000 Spring BracketSpring Bracket
-
52514052968 Spring BracketSpring Bracket
-
53517294300 BracketBracket
-
54512059058 WasherWasher
