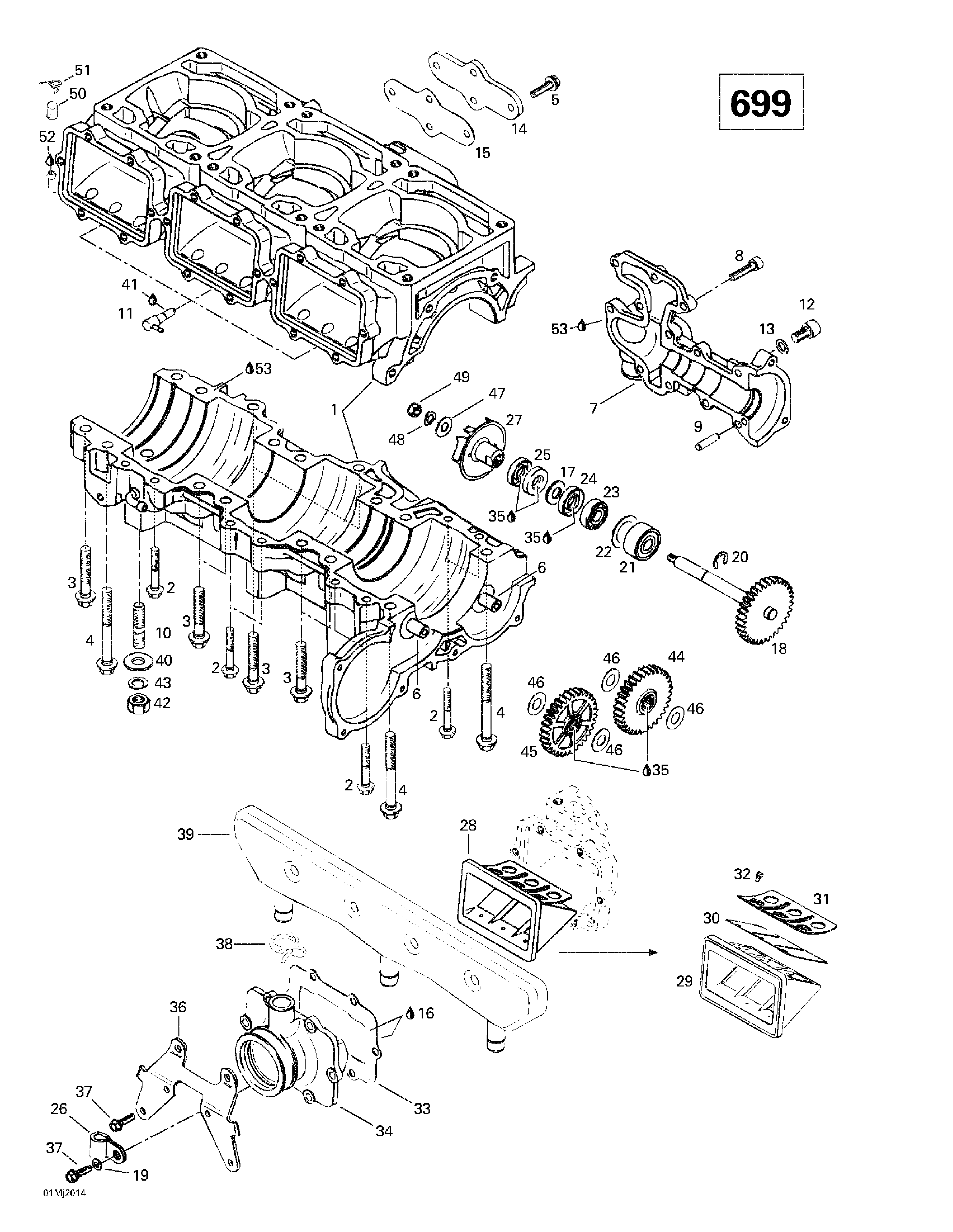

01- Crankcase, Reed Valve, Water Pump (699) для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1420888515 Crankcase Water Pump Cover Ass'y. Includes 1 - 15. GT 700.Crankcase Water Pump Cover Ass'y. Includes 1 - 15. GT 700.
-
2420941451 Collar Hex. Screw M6 x 40. GT 700.Collar Hex. Screw M6 x 40. GT 700.
-
3420940636 Collar Hex. Screw M8 x 45. GT 700.Collar Hex. Screw M8 x 45. GT 700.
-
4420841306 Collar Hex. Screw M8 x 65. GT 700.Collar Hex. Screw M8 x 65. GT 700.
-
5420941250 Tapping Screw M6 x 20. GT 700.Tapping Screw M6 x 20. GT 700.
-
6420929935 Intermediate Gear Shaft. GT 700.Intermediate Gear Shaft. GT 700.
-
8205062544 Socket Head Screw M6 x 25. GT 700.Socket Head Screw M6 x 25. GT 700.
-
9420429230 Dowel Pin. GT 700.Dowel Pin. GT 700.
-
10420940400 Stud M10 x 25. GT 700.Stud M10 x 25. GT 700.
-
11420956510 Check Valve. GT 700.Check Valve. GT 700.
-
12205081644 Socket Head Screw M8 x 16. GT 700.Socket Head Screw M8 x 16. GT 700.
-
13420950141 Sealing Ring. GT 700.Sealing Ring. GT 700.
-
14420810470 Water Duct Cover. GT 700.Water Duct Cover. GT 700.
-
15420931300 Water Duct Gasket. GT 700.Water Duct Gasket. GT 700.
-
16413702700 Loctite 515, 50 ml. GT 700.Loctite 515, 50 ml. GT 700.
-
17420927410 Washer 10.3. GT 700.Washer 10.3. GT 700.
-
18420837437 Waterpump - Shaft/Gear Ass'y. GT 700.Waterpump - Shaft/Gear Ass'y. GT 700.
-
19420827800 Washer 5.5. GT 700.Washer 5.5. GT 700.
-
20420845390 Retaining Ring. GT 700.Retaining Ring. GT 700.
-
21420832490 Ball Bearing. GT 700.Ball Bearing. GT 700.
-
22420944466 Shim 1 mm. GT 700.Shim 1 mm. GT 700.
-
23420232100 Ball Bearing. GT 700.Ball Bearing. GT 700.
-
24420230195 Oil Seal. GT 700.Oil Seal. GT 700.
-
25420950400 Oil Seal. GT 700.Oil Seal. GT 700.
-
26414176000 Cable Clip. GT 700.Cable Clip. GT 700.
-
27420922445 Water Impeller. GT 700.Water Impeller. GT 700.
-
28420924519 Reed Valve Ass'y. Includes 28 - 32. GT 700.Reed Valve Ass'y. Includes 28 - 32. GT 700.
-
30420924532 Pedal Reed. GT 700.Pedal Reed. GT 700.
-
31420924539 Pedal Reed Stop. GT 700.Pedal Reed Stop. GT 700.
-
32420941215 Oval-Head Screw M3 x 5. GT 700.Oval-Head Screw M3 x 5. GT 700.
-
33420950292 Gasket 1mm. GT 700.Gasket 1mm. GT 700.
-
34420867841 Intake Socket. GT 700.Intake Socket. GT 700.
-
35413707000 Molykote 111. GT 700.Molykote 111. GT 700.
-
36420851351 Carrier. GT 700.Carrier. GT 700.
-
37420841555 Taptite Screw M5 x 20. GT 700.Taptite Screw M5 x 20. GT 700.
-
38420851360 Clamp. GT 700.Clamp. GT 700.
-
39420867792 Intake Resonator. GT 700.Intake Resonator. GT 700.
-
40234001410 Washer 10 mm. GT 700.Washer 10 mm. GT 700.
-
41413711400 Loctite 648, 10 ml. GT 700.Loctite 648, 10 ml. GT 700.
-
42232006414 Nut M10. GT 700.Nut M10. GT 700.
-
43234100602 Lock Washer 10 mm. GT 700.Lock Washer 10 mm. GT 700.
-
44420834266 Sprocket 32 T. GT 700.Sprocket 32 T. GT 700.
-
45420834267 Sprocket 32 T. GT 700.Sprocket 32 T. GT 700.
-
46420927952 Thrust Washer. GT 700.Thrust Washer. GT 700.
-
47420227155 Washer. GT 700.Washer. GT 700.
-
48420845020 Spring Washer. GT 700.Spring Washer. GT 700.
-
49420842042 Locking Nut M6. GT 700.Locking Nut M6. GT 700.
-
50420960770 Cap. GT 700.Cap. GT 700.
-
51420938190 Clamp. GT 700.Clamp. GT 700.
-
52293550021 Grease Isoflex, 45 g. GT 700.Grease Isoflex, 45 g. GT 700.
-
53420297906 Sealing Compound, 30 ml. GT 700.Sealing Compound, 30 ml. GT 700.
