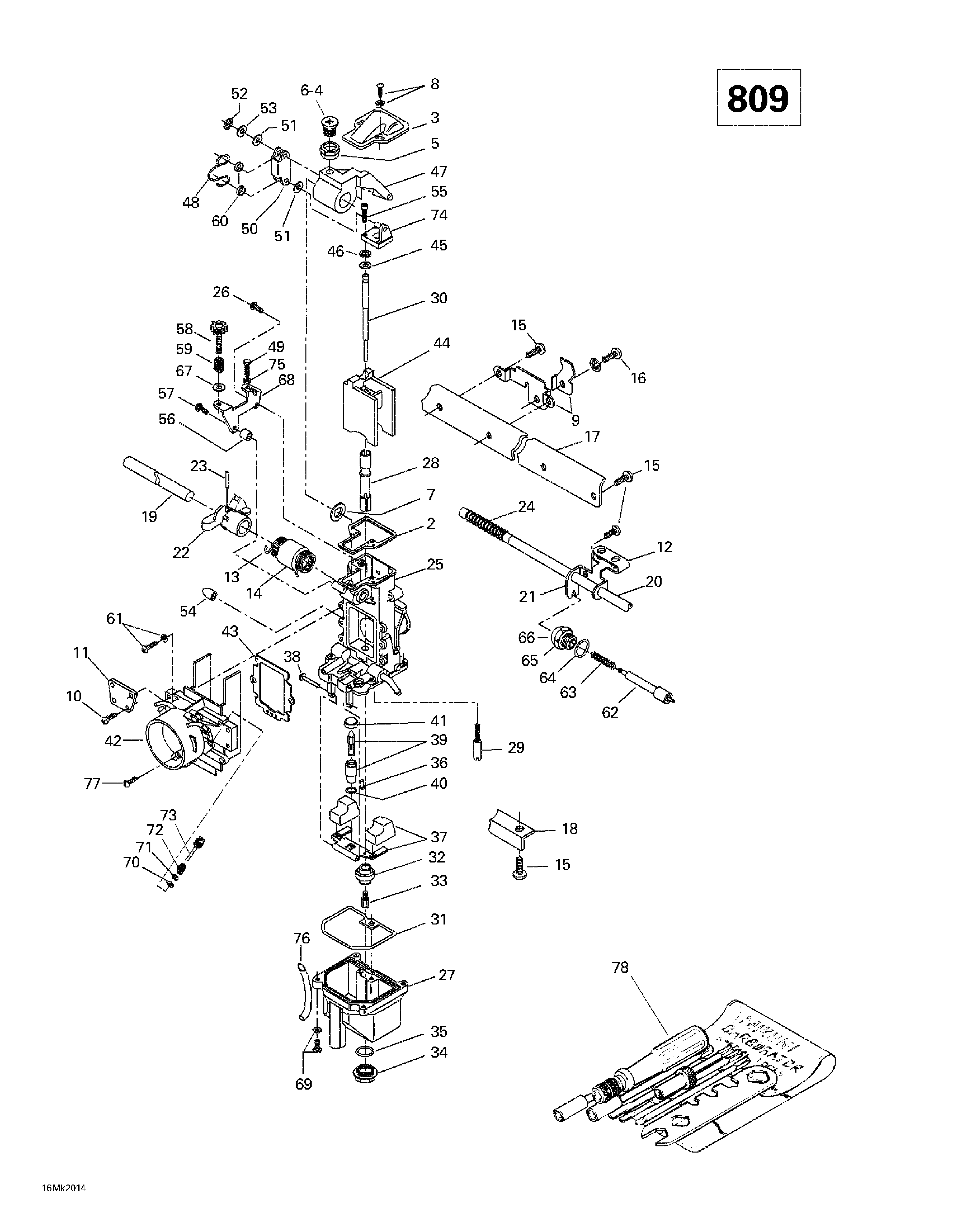

02- Carburetors (809) для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1403138633 Carburetor Kit TM38-C301. Includes 1 - 76. GT SE. GT SE Millennium Edition.Carburetor Kit TM38-C301. Includes 1 - 76. GT SE. GT SE Millennium Edition.
-
2404143600 Gasket. GT SE. GT SE Millennium Edition.Gasket. GT SE. GT SE Millennium Edition.
-
3404142700 Cover. GT SE. GT SE Millennium Edition.Cover. GT SE. GT SE Millennium Edition.
-
4404139000 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
5404143500 Ring. GT SE. GT SE Millennium Edition.Ring. GT SE. GT SE Millennium Edition.
-
6404138900 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
7404144400 Packing. GT SE. GT SE Millennium Edition.Packing. GT SE. GT SE Millennium Edition.
-
8404139100 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
9404155100 Bracket Ass'y. GT SE. GT SE Millennium Edition.Bracket Ass'y. GT SE. GT SE Millennium Edition.
-
10404136100 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
11404142400 Plate. GT SE. GT SE Millennium Edition.Plate. GT SE. GT SE Millennium Edition.
-
12404143900 Lever. GT SE. GT SE Millennium Edition.Lever. GT SE. GT SE Millennium Edition.
-
13404143200 Spring. GT SE. GT SE Millennium Edition.Spring. GT SE. GT SE Millennium Edition.
-
14404141700 Ring. GT SE. GT SE Millennium Edition.Ring. GT SE. GT SE Millennium Edition.
-
15404138800 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
16404140500 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
17404142300 Plate. GT SE. GT SE Millennium Edition.Plate. GT SE. GT SE Millennium Edition.
-
18404142500 Plate. GT SE. GT SE Millennium Edition.Plate. GT SE. GT SE Millennium Edition.
-
19404137100 Throttle Shaft. GT SE. GT SE Millennium Edition.Throttle Shaft. GT SE. GT SE Millennium Edition.
-
20404137200 Choke Shaft. GT SE. GT SE Millennium Edition.Choke Shaft. GT SE. GT SE Millennium Edition.
-
21404140600 Starter Lever. GT SE. GT SE Millennium Edition.Starter Lever. GT SE. GT SE Millennium Edition.
-
22404142100 Lever Ass'y. GT SE. GT SE Millennium Edition.Lever Ass'y. GT SE. GT SE Millennium Edition.
-
23404140100 Pin. GT SE. GT SE Millennium Edition.Pin. GT SE. GT SE Millennium Edition.
-
24404158000 Spring. GT SE. GT SE Millennium Edition.Spring. GT SE. GT SE Millennium Edition.
-
26404135900 Screw (MAG). GT SE. GT SE Millennium Edition.Screw (MAG). GT SE. GT SE Millennium Edition.
-
28404161882 Needle Jet. GT SE. GT SE Millennium Edition.Needle Jet. GT SE. GT SE Millennium Edition.
-
29404161887 Pilot Jet 15. GT SE. GT SE Millennium Edition.Pilot Jet 15. GT SE. GT SE Millennium Edition.
-
30404161881 Needle J8-8BCY01-42. GT SE. GT SE Millennium Edition.Needle J8-8BCY01-42. GT SE. GT SE Millennium Edition.
-
31404137000 O-Ring. GT SE. GT SE Millennium Edition.O-Ring. GT SE. GT SE Millennium Edition.
-
32404142900 Ring. GT SE. GT SE Millennium Edition.Ring. GT SE. GT SE Millennium Edition.
-
33404104900 Main Jet 340 (PTO / MAG). GT SE. GT SE Millennium Edition.Main Jet 340 (PTO / MAG). GT SE. GT SE Millennium Edition.
-
404106100 Main Jet 360 (CTR). GT 700. GT SE Millennium Edition. .Main Jet 360 (CTR). GT 700. GT SE Millennium Edition. .
-
34404107400 Drain Screw Plug. GT SE. GT SE Millennium Edition.Drain Screw Plug. GT SE. GT SE Millennium Edition.
-
35404107300 O-Ring. GT SE. GT SE Millennium Edition.O-Ring. GT SE. GT SE Millennium Edition.
-
36404141000 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
37404149800 Float. GT SE. GT SE Millennium Edition.Float. GT SE. GT SE Millennium Edition.
-
38404103300 Lever Pin. GT SE. GT SE Millennium Edition.Lever Pin. GT SE. GT SE Millennium Edition.
-
39404149500 Needle Seat 1.5. GT SE. GT SE Millennium Edition.Needle Seat 1.5. GT SE. GT SE Millennium Edition.
-
40270500127 O-Ring. GT SE. GT SE Millennium Edition.O-Ring. GT SE. GT SE Millennium Edition.
-
41404141200 Filter. GT SE. GT SE Millennium Edition.Filter. GT SE. GT SE Millennium Edition.
-
42404161889 Funnel (MAG). GT SE. GT SE Millennium Edition.Funnel (MAG). GT SE. GT SE Millennium Edition.
-
404161890 Funnel (Center). GT SE. GT SE Millennium Edition.Funnel (Center). GT SE. GT SE Millennium Edition.
-
404161891 Funnel (PTO). GT SE. GT SE Millennium Edition.Funnel (PTO). GT SE. GT SE Millennium Edition.
-
43404143700 Gasket. GT SE. GT SE Millennium Edition.Gasket. GT SE. GT SE Millennium Edition.
-
44404152900 Piston Valve 2.0. GT SE. GT SE Millennium Edition.Piston Valve 2.0. GT SE. GT SE Millennium Edition.
-
45404137600 Packing. GT SE. GT SE Millennium Edition.Packing. GT SE. GT SE Millennium Edition.
-
46404113300 Circlip. GT SE. GT SE Millennium Edition.Circlip. GT SE. GT SE Millennium Edition.
-
47404143000 Throttle Lever (PTO/Center). GT SE. GT SE Millennium Edition.Throttle Lever (PTO/Center). GT SE. GT SE Millennium Edition.
-
404143100 Throttle Lever (MAG). GT SE. GT SE Millennium Edition.Throttle Lever (MAG). GT SE. GT SE Millennium Edition.
-
48404144100 Clip. GT SE. GT SE Millennium Edition.Clip. GT SE. GT SE Millennium Edition.
-
49404138000 Bolt (MAG). GT SE. GT SE Millennium Edition.Bolt (MAG). GT SE. GT SE Millennium Edition.
-
50404144000 Plate. GT SE. GT SE Millennium Edition.Plate. GT SE. GT SE Millennium Edition.
-
51404138100 Packing. GT SE. GT SE Millennium Edition.Packing. GT SE. GT SE Millennium Edition.
-
52404138300 > Ring. GT SE. GT SE Millennium Edition.> Ring. GT SE. GT SE Millennium Edition.
-
53404139500 Washer. GT SE. GT SE Millennium Edition.Washer. GT SE. GT SE Millennium Edition.
-
54404154900 Cap. GT SE. GT SE Millennium Edition.Cap. GT SE. GT SE Millennium Edition.
-
55404137400 Bolt. GT SE. GT SE Millennium Edition.Bolt. GT SE. GT SE Millennium Edition.
-
56404141800 Ring (MAG). GT SE. GT SE Millennium Edition.Ring (MAG). GT SE. GT SE Millennium Edition.
-
57404138800 Screw (MAG). GT SE. GT SE Millennium Edition.Screw (MAG). GT SE. GT SE Millennium Edition.
-
58404137500 Adjustment Screw (MAG). GT SE. GT SE Millennium Edition.Adjustment Screw (MAG). GT SE. GT SE Millennium Edition.
-
59404138200 Spring (MAG). GT SE. GT SE Millennium Edition.Spring (MAG). GT SE. GT SE Millennium Edition.
-
60404144200 Ring. GT SE. GT SE Millennium Edition.Ring. GT SE. GT SE Millennium Edition.
-
61404145100 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
62404140400 Plunger Ass'y. GT SE. GT SE Millennium Edition.Plunger Ass'y. GT SE. GT SE Millennium Edition.
-
63404141100 Spring. GT SE. GT SE Millennium Edition.Spring. GT SE. GT SE Millennium Edition.
-
64404140200 O-Ring. GT SE. GT SE Millennium Edition.O-Ring. GT SE. GT SE Millennium Edition.
-
65404136900 Holder Guide. GT SE. GT SE Millennium Edition.Holder Guide. GT SE. GT SE Millennium Edition.
-
66404140000 Cap. GT SE. GT SE Millennium Edition.Cap. GT SE. GT SE Millennium Edition.
-
67404161885 Washer (MAG). GT SE. GT SE Millennium Edition.Washer (MAG). GT SE. GT SE Millennium Edition.
-
68404142600 Bracket (MAG). GT SE. GT SE Millennium Edition.Bracket (MAG). GT SE. GT SE Millennium Edition.
-
69404138700 Screw. GT SE. GT SE Millennium Edition.Screw. GT SE. GT SE Millennium Edition.
-
70404139900 O-Ring. GT SE. GT SE Millennium Edition.O-Ring. GT SE. GT SE Millennium Edition.
-
71404140900 Washer. GT SE. GT SE Millennium Edition.Washer. GT SE. GT SE Millennium Edition.
-
72404139800 Spring. GT SE. GT SE Millennium Edition.Spring. GT SE. GT SE Millennium Edition.
-
73404154200 Adjuster Screw. GT SE. GT SE Millennium Edition.Adjuster Screw. GT SE. GT SE Millennium Edition.
-
74404142000 Plate Ass'y. GT SE. GT SE Millennium Edition.Plate Ass'y. GT SE. GT SE Millennium Edition.
-
75404139600 Nut (MAG). GT SE. GT SE Millennium Edition.Nut (MAG). GT SE. GT SE Millennium Edition.
-
76404161888 Hose. GT SE. GT SE Millennium Edition.Hose. GT SE. GT SE Millennium Edition.
-
77404131700 Screw-Plug. GT SE. GT SE Millennium Edition.Screw-Plug. GT SE. GT SE Millennium Edition.
-
78404112000 Tool Kit. GT SE. GT SE Millennium Edition.Tool Kit. GT SE. GT SE Millennium Edition.
