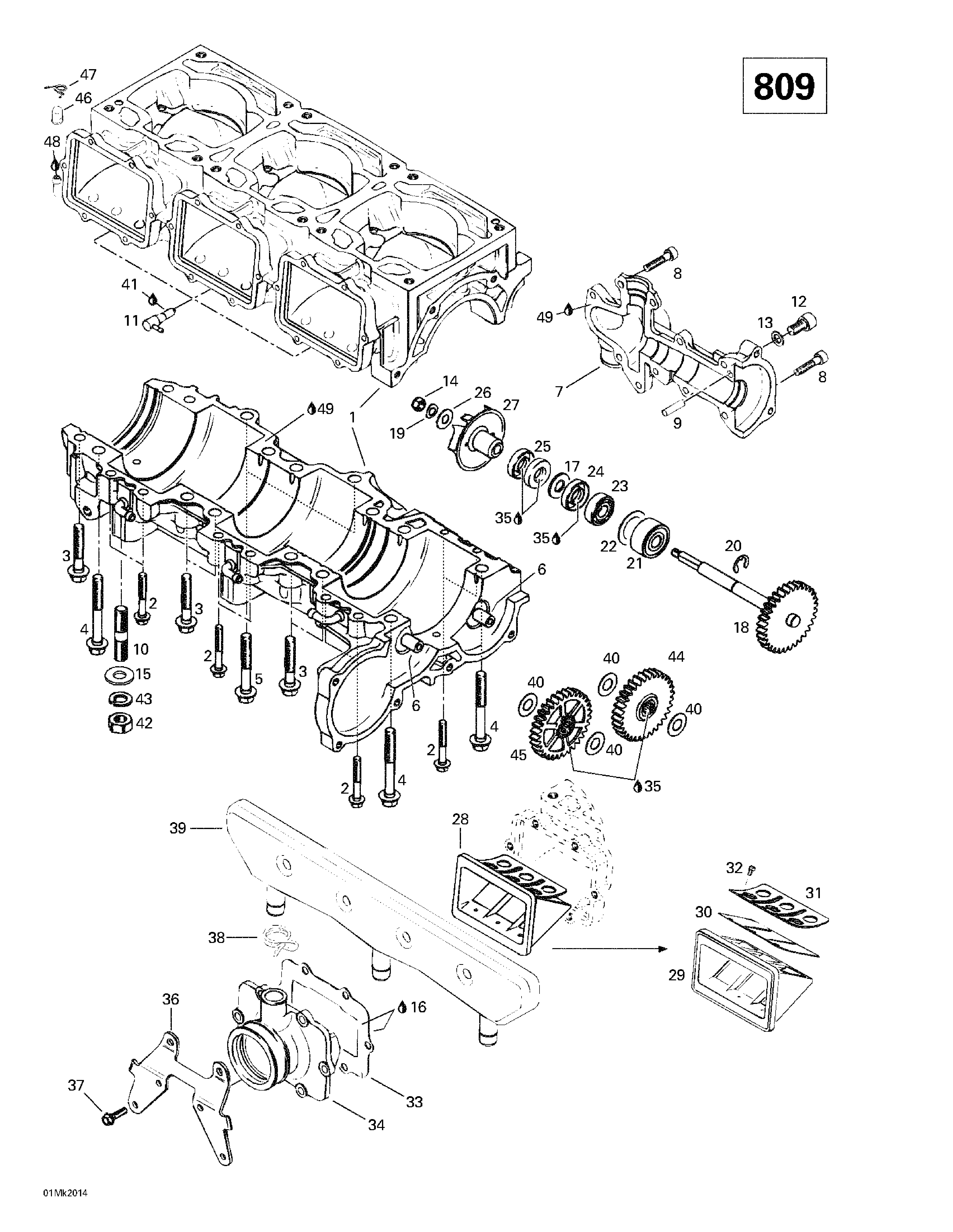

01- Crankcase, Reed Valve, Water Pump (809) для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1420888523 Crankcase Water Pump Cover Ass'y. Includes 1 - 13. GT SE. GT SE Millennium Edition.Crankcase Water Pump Cover Ass'y. Includes 1 - 13. GT SE. GT SE Millennium Edition.
-
2420941451 Collar Hex. Screw M6 x 40. GT SE. GT SE Millennium Edition.Collar Hex. Screw M6 x 40. GT SE. GT SE Millennium Edition.
-
3420940636 Collar Hex. Screw M8 x 45. GT SE. GT SE Millennium Edition.Collar Hex. Screw M8 x 45. GT SE. GT SE Millennium Edition.
-
4420841996 Collar Hex. Screw M8 x 68.5. GT SE. GT SE Millennium Edition.Collar Hex. Screw M8 x 68.5. GT SE. GT SE Millennium Edition.
-
5420240326 Collar Hex. Screw M8 x 53.5. GT SE. GT SE Millennium Edition.Collar Hex. Screw M8 x 53.5. GT SE. GT SE Millennium Edition.
-
6420929935 Intermediate Gear Shaft. GT SE. GT SE Millennium Edition.Intermediate Gear Shaft. GT SE. GT SE Millennium Edition.
-
8205062544 Socket Head Screw M6 x 25. GT SE. GT SE Millennium Edition.Socket Head Screw M6 x 25. GT SE. GT SE Millennium Edition.
-
9420429230 Dowel Pin. GT SE. GT SE Millennium Edition.Dowel Pin. GT SE. GT SE Millennium Edition.
-
10420940400 Stud M10 x 25. GT SE. GT SE Millennium Edition.Stud M10 x 25. GT SE. GT SE Millennium Edition.
-
11420956510 Check Valve. GT SE. GT SE Millennium Edition.Check Valve. GT SE. GT SE Millennium Edition.
-
12205081644 Socket Head Screw M8 x 16. GT SE. GT SE Millennium Edition.Socket Head Screw M8 x 16. GT SE. GT SE Millennium Edition.
-
13420950141 Sealing Ring. GT SE. GT SE Millennium Edition.Sealing Ring. GT SE. GT SE Millennium Edition.
-
14420842042 Locking Nut M6. GT SE. GT SE Millennium Edition.Locking Nut M6. GT SE. GT SE Millennium Edition.
-
15234001410 Flat Washer 10 mm. GT SE. GT SE Millennium Edition.Flat Washer 10 mm. GT SE. GT SE Millennium Edition.
-
16413702700 Loctite 515, 50 ml. GT SE. GT SE Millennium Edition.Loctite 515, 50 ml. GT SE. GT SE Millennium Edition.
-
17420927410 Washer 10.3. GT SE. GT SE Millennium Edition.Washer 10.3. GT SE. GT SE Millennium Edition.
-
18420837435 Waterpump - Shaft/Gear Ass'y. GT SE. GT SE Millennium Edition.Waterpump - Shaft/Gear Ass'y. GT SE. GT SE Millennium Edition.
-
19420845020 Spring Washer. GT SE. GT SE Millennium Edition.Spring Washer. GT SE. GT SE Millennium Edition.
-
20420845390 Retaining Ring. GT SE. GT SE Millennium Edition.Retaining Ring. GT SE. GT SE Millennium Edition.
-
21420832490 Ball Bearing. GT SE. GT SE Millennium Edition.Ball Bearing. GT SE. GT SE Millennium Edition.
-
22420944466 Shim 1 mm. GT SE. GT SE Millennium Edition.Shim 1 mm. GT SE. GT SE Millennium Edition.
-
23420232100 Ball Bearing. GT SE. GT SE Millennium Edition.Ball Bearing. GT SE. GT SE Millennium Edition.
-
24420230195 Oil Seal. GT SE. GT SE Millennium Edition.Oil Seal. GT SE. GT SE Millennium Edition.
-
25420950400 Oil Seal. GT SE. GT SE Millennium Edition.Oil Seal. GT SE. GT SE Millennium Edition.
-
26420227155 Washer. GT SE. GT SE Millennium Edition.Washer. GT SE. GT SE Millennium Edition.
-
27420922445 Impeller Water. GT SE. GT SE Millennium Edition.Impeller Water. GT SE. GT SE Millennium Edition.
-
28420924519 Reed Valve Ass'y. Includes 28 - 32. GT SE. GT SE Millennium Edition.Reed Valve Ass'y. Includes 28 - 32. GT SE. GT SE Millennium Edition.
-
30420924532 Reed Pedal. GT SE. GT SE Millennium Edition.Reed Pedal. GT SE. GT SE Millennium Edition.
-
31420924539 Reed Pedal Stop. GT SE. GT SE Millennium Edition.Reed Pedal Stop. GT SE. GT SE Millennium Edition.
-
32420941215 Oval-Head Screw M3 x 5. GT SE. GT SE Millennium Edition.Oval-Head Screw M3 x 5. GT SE. GT SE Millennium Edition.
-
33420950292 Gasket 1mm. GT SE. GT SE Millennium Edition.Gasket 1mm. GT SE. GT SE Millennium Edition.
-
34420867849 Intake Socket. GT SE. GT SE Millennium Edition.Intake Socket. GT SE. GT SE Millennium Edition.
-
35413707000 Molykote 111. GT SE. GT SE Millennium Edition.Molykote 111. GT SE. GT SE Millennium Edition.
-
36420851351 Carrier. GT SE. GT SE Millennium Edition.Carrier. GT SE. GT SE Millennium Edition.
-
37420841555 Taptite Screw M5 x 20. GT SE. GT SE Millennium Edition.Taptite Screw M5 x 20. GT SE. GT SE Millennium Edition.
-
38420851360 Clamp. GT SE. GT SE Millennium Edition.Clamp. GT SE. GT SE Millennium Edition.
-
39420867797 Intake Resonator. GT SE. GT SE Millennium Edition.Intake Resonator. GT SE. GT SE Millennium Edition.
-
40420927952 Thrust Washer. GT SE. GT SE Millennium Edition.Thrust Washer. GT SE. GT SE Millennium Edition.
-
41413711400 Loctite 648, 10 ml. GT SE. GT SE Millennium Edition.Loctite 648, 10 ml. GT SE. GT SE Millennium Edition.
-
42232006414 Nut M10. GT SE. GT SE Millennium Edition.Nut M10. GT SE. GT SE Millennium Edition.
-
43234100602 Lock Washer 10 mm. GT SE. GT SE Millennium Edition.Lock Washer 10 mm. GT SE. GT SE Millennium Edition.
-
44420834266 Sprocket 32 T. GT SE. GT SE Millennium Edition.Sprocket 32 T. GT SE. GT SE Millennium Edition.
-
45420834267 Sprocket 32 T. GT SE. GT SE Millennium Edition.Sprocket 32 T. GT SE. GT SE Millennium Edition.
-
46420960770 Cap. GT SE. GT SE Millennium Edition.Cap. GT SE. GT SE Millennium Edition.
-
47420938190 Clamp. GT SE. GT SE Millennium Edition.Clamp. GT SE. GT SE Millennium Edition.
-
48293550021 Isoflex Grease, 45g. GT SE. GT SE Millennium Edition.Isoflex Grease, 45g. GT SE. GT SE Millennium Edition.
-
49420297906 Sealing Compound, 30 ml. GT SE. GT SE Millennium Edition.Sealing Compound, 30 ml. GT SE. GT SE Millennium Edition.
