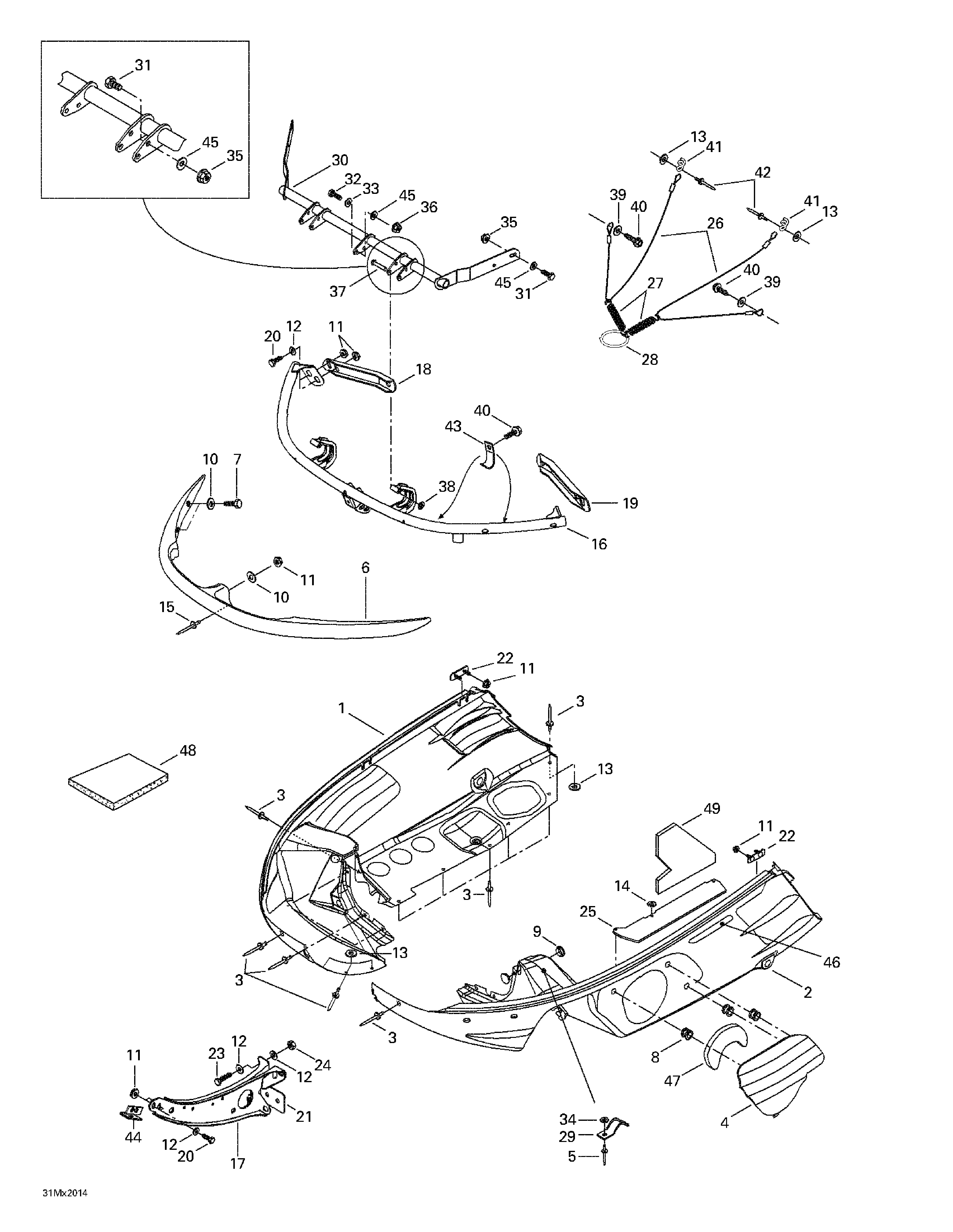

09- Bottom Pan для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1572087000 R.H. Bottom Pan (Black). GT 700. GT SE Millennium Edition.R.H. Bottom Pan (Black). GT 700. GT SE Millennium Edition.
-
502006525 R.H. Bottom Pan (Red). GT SE.R.H. Bottom Pan (Red). GT SE.
-
2572087100 L.H. Bottom Pan (Black). GT 700. GT SE Millennium Edition.L.H. Bottom Pan (Black). GT 700. GT SE Millennium Edition.
-
502006526 L.H. Bottom Pan (Red). GT SE.L.H. Bottom Pan (Red). GT SE.
-
3390409600 Rivet (Black). GT 700. GT SE Millennium Edition.Rivet (Black). GT 700. GT SE Millennium Edition.
-
293150066 Rivet (Red). GT SE.Rivet (Red). GT SE.
-
4572098500 Bottom Pan Door (Black). GT 700. GT SE Millennium Edition.Bottom Pan Door (Black). GT 700. GT SE Millennium Edition.
-
502006527 Bottom Pan Door (Red). GT SE.Bottom Pan Door (Red). GT SE.
-
5390409600 Pop RivetPop Rivet
-
6572087200 Front BumperFront Bumper
-
7207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
8414036300 GrommetGrommet
-
9414916600 PlugPlug
-
10224061201 Flat WasherFlat Washer
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12224061121 Flat washerFlat washer
-
13517124300 WasherWasher
-
14517225900 Flat WasherFlat Washer
-
15390906800 Pop RivetPop Rivet
-
16502006523 Hinge BracketHinge Bracket
-
17502006549 Center SupportCenter Support
-
18517288400 R.H. SupportR.H. Support
-
19517288500 L.H. SupportL.H. Support
-
20207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
21517288600 PlatePlate
-
22517294300 BracketBracket
-
23207066044 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25517299500 ProtectorProtector
-
26415093900 Retainer CableRetainer Cable
-
27414185600 SpringSpring
-
28415058300 RingRing
-
29517274400 BracketBracket
-
30517302187 HingeHinge
-
31207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
32207141644 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
33391301000 Flat WasherFlat Washer
-
34517124300 WasherWasher
-
35233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
36233241414 Elastic Flanged Stop Nut M4Elastic Flanged Stop Nut M4
-
37390004800 RivetRivet
-
38389804300 Push NutPush Nut
-
39391301600 Flat WasherFlat Washer
-
40365901100 Hex. Tapping ScrewHex. Tapping Screw
-
41517262800 BracketBracket
-
42390406500 Pop RivetPop Rivet
-
43515175160 Cable BracketCable Bracket
-
44517302009 Front SupportFront Support
-
45420845270 WasherWasher
-
46415064400 R.H. ReflectorR.H. Reflector
-
415064401 L.H. ReflectorL.H. Reflector
-
47415112800 Door FoamDoor Foam
-
48414632400 Foam-Acoustic (74 x 34 x 1/2 Thk)Foam-Acoustic (74 x 34 x 1/2 Thk)
-
414631900 Foam-Acoustic (74 x 34 x 1 Thk)Foam-Acoustic (74 x 34 x 1 Thk)
-
49415111300 Bottom Pan FoamBottom Pan Foam
