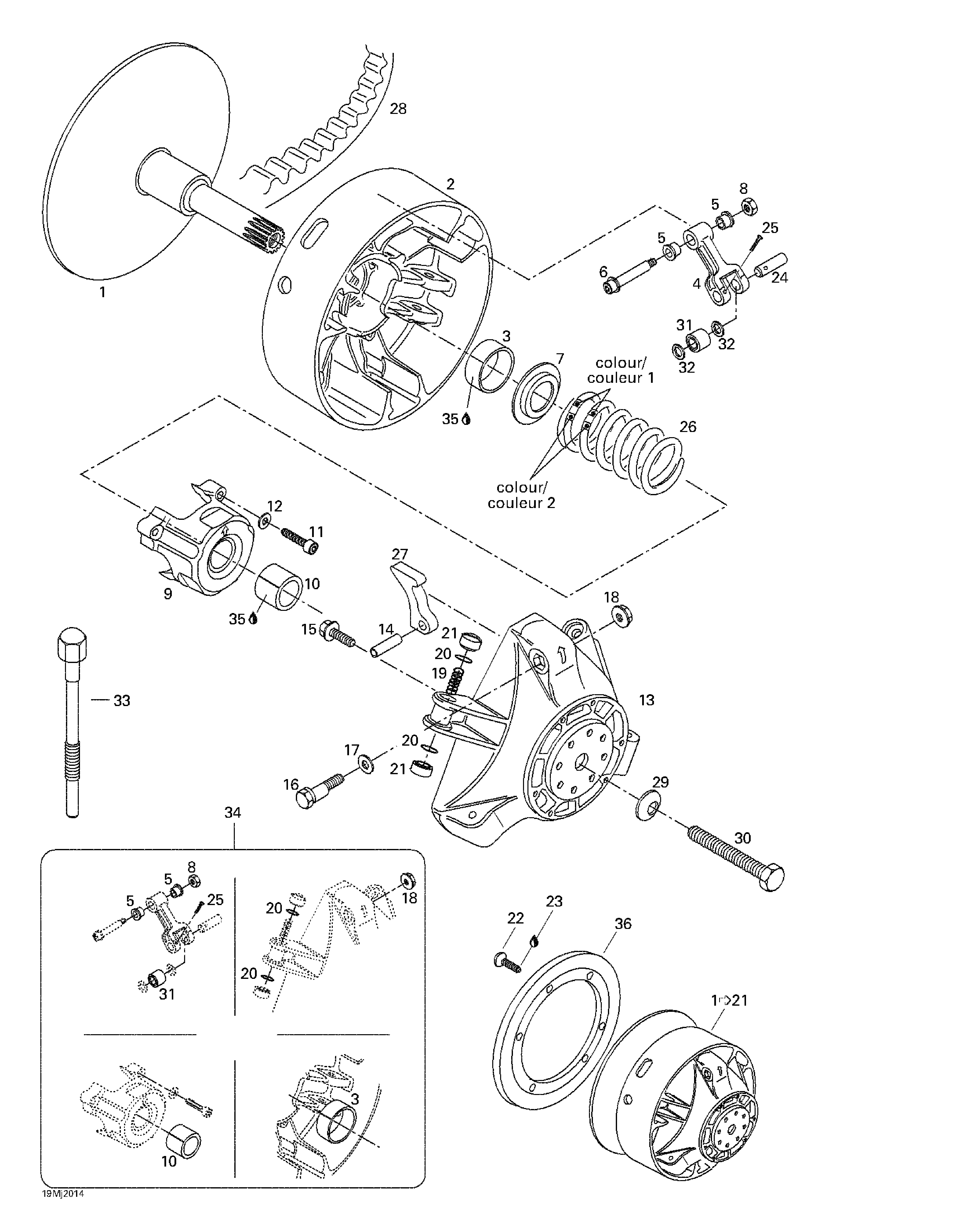

05- Drive Pulley для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1417222155 Drive Pulley Ass'y. Includes 1 - 21.Drive Pulley Ass'y. Includes 1 - 21.
-
1417222160 Fixed FlangeFixed Flange
-
2417222049 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 Bushing Outer HalfBushing Outer Half
-
4417003801 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 BushingBushing
-
6417004800 Screw Ass'yScrew Ass'y
-
7417222044 Spring SeatSpring Seat
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9417222157 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 BushingBushing
-
11205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 WasherWasher
-
13417222059 Governor CupGovernor Cup
-
14732804009 Roll Pin M8 x 24Roll Pin M8 x 24
-
15210361890 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417222107 Slider ShoeSlider Shoe
-
22236281684 Taptite Screw M8 x 16Taptite Screw M8 x 16
-
23293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
24417004308 PinPin
-
25732958001 Cotter PinCotter Pin
-
26414817800 Spring (Blue/Violet). GT 700.Spring (Blue/Violet). GT 700.
-
415015300 Spring (Violet/Yellow). GT SE. GT SE Millennium Edition.Spring (Violet/Yellow). GT SE. GT SE Millennium Edition.
-
27417005293X Ramp 293XRamp 293X
-
28417300066 Drive BeltDrive Belt
-
29234271414 Conical Spring WasherConical Spring Washer
-
30417120000 Drive Pulley BoltDrive Pulley Bolt
-
31417003900 Roller Ass'yRoller Ass'y
-
32417004302 Stopper WasherStopper Washer
-
33529022400 Puller Inner HalfPuller Inner Half
-
34417006100 Clutch Repair KitClutch Repair Kit
-
35413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
36417009400 Ring Gear (86 Tooth)Ring Gear (86 Tooth)
