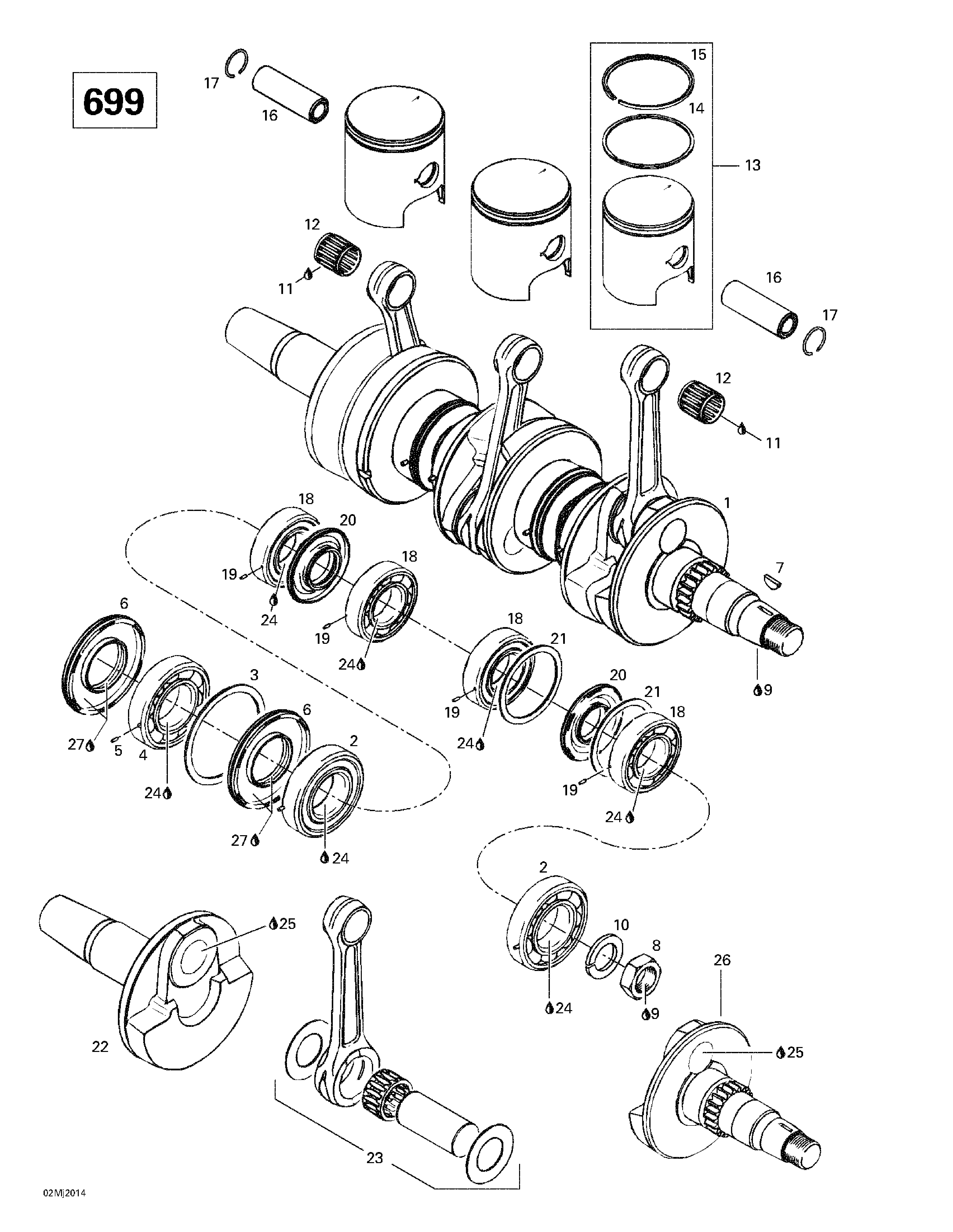

01- Crankshaft And Pistons (699) для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1420888034 Crankshaft Ass'y. Includes 1 - 7. GT 700.Crankshaft Ass'y. Includes 1 - 7. GT 700.
-
2420432271 Ball Bearing. GT 700.Ball Bearing. GT 700.
-
3420926190 Washer. GT 700.Washer. GT 700.
-
4420832580 Ball Bearing. Includes 4 - 5. GT 700.Ball Bearing. Includes 4 - 5. GT 700.
-
6420931280 Oil-Seal. GT 700.Oil-Seal. GT 700.
-
7420246015 Woodruff Key. GT 700.Woodruff Key. GT 700.
-
8420842230 Nut M22 x 1.5. GT 700.Nut M22 x 1.5. GT 700.
-
9293800060 Loctite 243, 10 ml. GT 700.Loctite 243, 10 ml. GT 700.
-
10420945759 Lock Washer. GT 700.Lock Washer. GT 700.
-
11413802900 Injection Oil (12 x 1 Liter). GT 700.Injection Oil (12 x 1 Liter). GT 700.
-
12420832439 Needle Bearing. GT 700.Needle Bearing. GT 700.
-
13420887521 Piston Ass'y. Includes 13 - 15. GT 700.Piston Ass'y. Includes 13 - 15. GT 700.
-
14420915986 Rectangular Ring 69.75 mm. GT 700.Rectangular Ring 69.75 mm. GT 700.
-
15420815046 Semi-Tapez Ring 69.75 mm. GT 700.Semi-Tapez Ring 69.75 mm. GT 700.
-
16420916186 Gudgeon Pin. GT 700.Gudgeon Pin. GT 700.
-
17420945735 Piston Circlip. GT 700.Piston Circlip. GT 700.
-
18420832538 Ball Bearing Ass'y. Includes 18 - 19. GT 700.Ball Bearing Ass'y. Includes 18 - 19. GT 700.
-
19420929972 Dowel Pin. GT 700.Dowel Pin. GT 700.
-
20420831990 Oil Seal. GT 700.Oil Seal. GT 700.
-
21420827050 Retaining Disk. GT 700.Retaining Disk. GT 700.
-
22420818617 Crankshaft P.T.O.-Side. GT 700.Crankshaft P.T.O.-Side. GT 700.
-
23420887603 Rod Repair Kit P.T.O.-Side. GT 700.Rod Repair Kit P.T.O.-Side. GT 700.
-
420887604 Rod Repair Kit Mag, Side/Center. GT 700.Rod Repair Kit Mag, Side/Center. GT 700.
-
24293800023 Loctite 767, Antiseize Lubricant, 454 g. GT 700.Loctite 767, Antiseize Lubricant, 454 g. GT 700.
-
25413711400 Loctite 648, 10 ml. GT 700.Loctite 648, 10 ml. GT 700.
-
26420818626 Crankshaft MAG.-Side. GT 700.Crankshaft MAG.-Side. GT 700.
-
27413707000 Molykote 111. GT 700.Molykote 111. GT 700.
