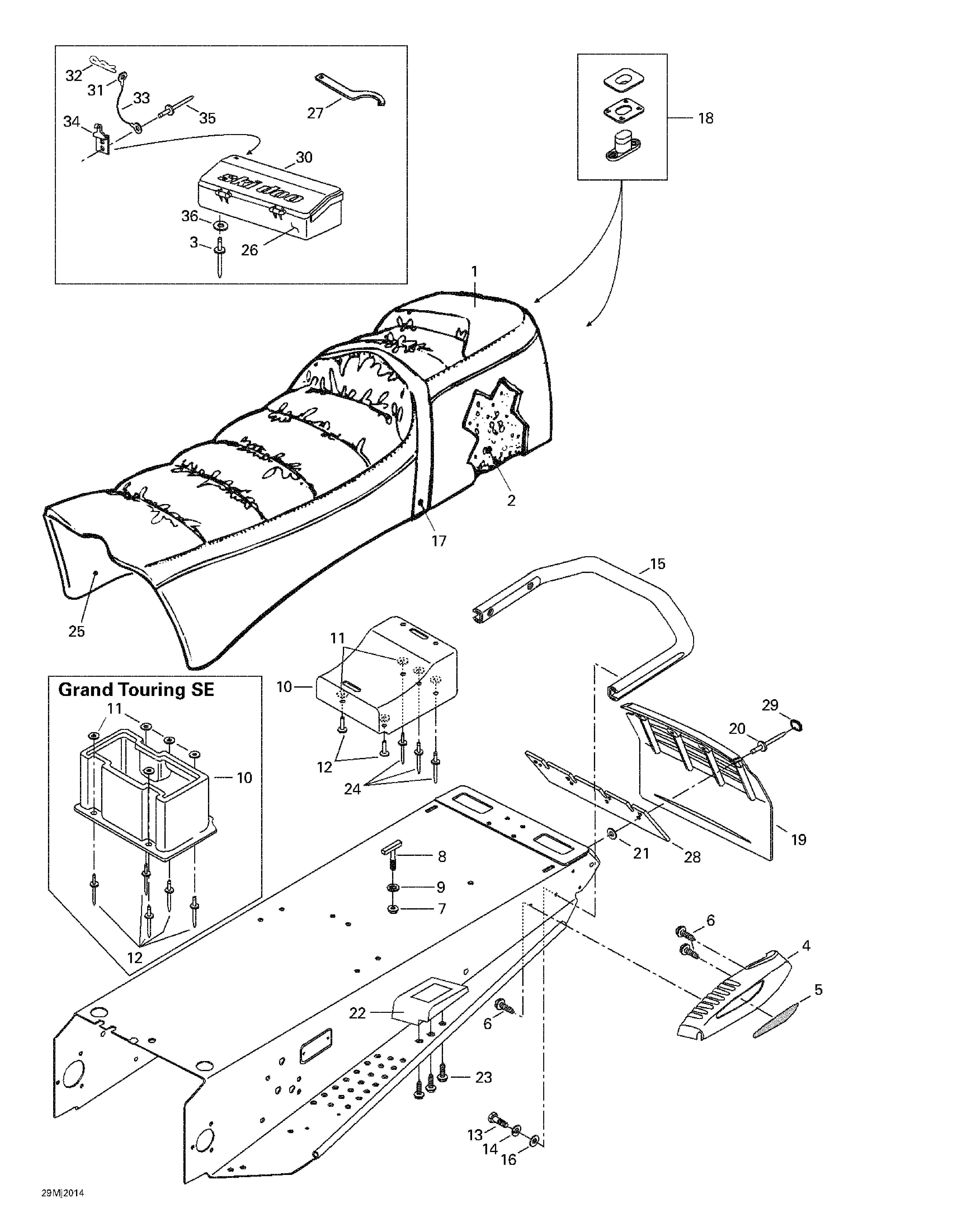

09- Seat And Accessories для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1510003777 Seat Cover. GT 700.Seat Cover. GT 700.
-
510003714 Seat Cover. GT SE.Seat Cover. GT SE.
-
510003794 Seat Cover. GT SE Millennium Edition.Seat Cover. GT SE Millennium Edition.
-
2510003588 Seat Foam. GT 700.Seat Foam. GT 700.
-
510003591 Seat Foam. GT SE. GT SE Millennium Edition.Seat Foam. GT SE. GT SE Millennium Edition.
-
3390409600 RivetRivet
-
4572103900 R.H. MouldingR.H. Moulding
-
572104000 L.H. MouldingL.H. Moulding
-
5516000237 R.H. ReflectorR.H. Reflector
-
516000238 LH ReflectorLH Reflector
-
6365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
7233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
8732601221 > Bolt> Bolt
-
9732610072 Push NutPush Nut
-
10572051200 Rear Trunk. GT 700.Rear Trunk. GT 700.
-
572106300 Rear Trunk. GT SE. GT SE Millennium Edition.Rear Trunk. GT SE. GT SE Millennium Edition.
-
11234051410 Flat Washer 5 mm. GT 700.Flat Washer 5 mm. GT 700.
-
517297900 Flat Washer. GT SE. GT SE Millennium Edition.Flat Washer. GT SE. GT SE Millennium Edition.
-
390409600 Pop Rivet. GT SE. GT SE Millennium Edition.Pop Rivet. GT SE. GT SE Millennium Edition.
-
13207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
14234181401 Lock Washer 8 mmLock Washer 8 mm
-
15517272510 Rear Bumper. GT 700. GT SE.Rear Bumper. GT 700. GT SE.
-
518321982 Rear Bumper. GT SE Millennium Edition.Rear Bumper. GT SE Millennium Edition.
-
16234081410 Washer 8 mmWasher 8 mm
-
17415095600 Seat BeltSeat Belt
-
18414728000 Buckle-SeatBuckle-Seat
-
19520000182 Snow Guard. GT 700.Snow Guard. GT 700.
-
520000183 Snow Guard. GT SE.Snow Guard. GT SE.
-
520000228 Snow Guard. GT SE Millennium Edition.Snow Guard. GT SE Millennium Edition.
-
20390908000 Pop Rivet (Black)Pop Rivet (Black)
-
21517225900 WasherWasher
-
22572088700 R.H. FootrestR.H. Footrest
-
572088800 L.H. FootrestL.H. Footrest
-
23243141640 Hex. Tapping Screw M4.8 x 16Hex. Tapping Screw M4.8 x 16
-
24390906800 Pop Rivet. GT 700.Pop Rivet. GT 700.
-
25510003587 Sub-Seat. GT 700.Sub-Seat. GT 700.
-
510003589 Sub-Seat. GT SE. GT SE Millennium Edition.Sub-Seat. GT SE. GT SE Millennium Edition.
-
26529035592 Tool KitTool Kit
-
27529032900 Wrench-AdjusterWrench-Adjuster
-
28572108200 ReinforcementReinforcement
-
29415073300 CapCap
-
30520000107 Tool Box Ass'y. Includes 30 - 35.Tool Box Ass'y. Includes 30 - 35.
-
31561502800 Ring TerminalRing Terminal
-
32414112400 Hair PinHair Pin
-
34517168500 LatchLatch
-
36517124300 WasherWasher
