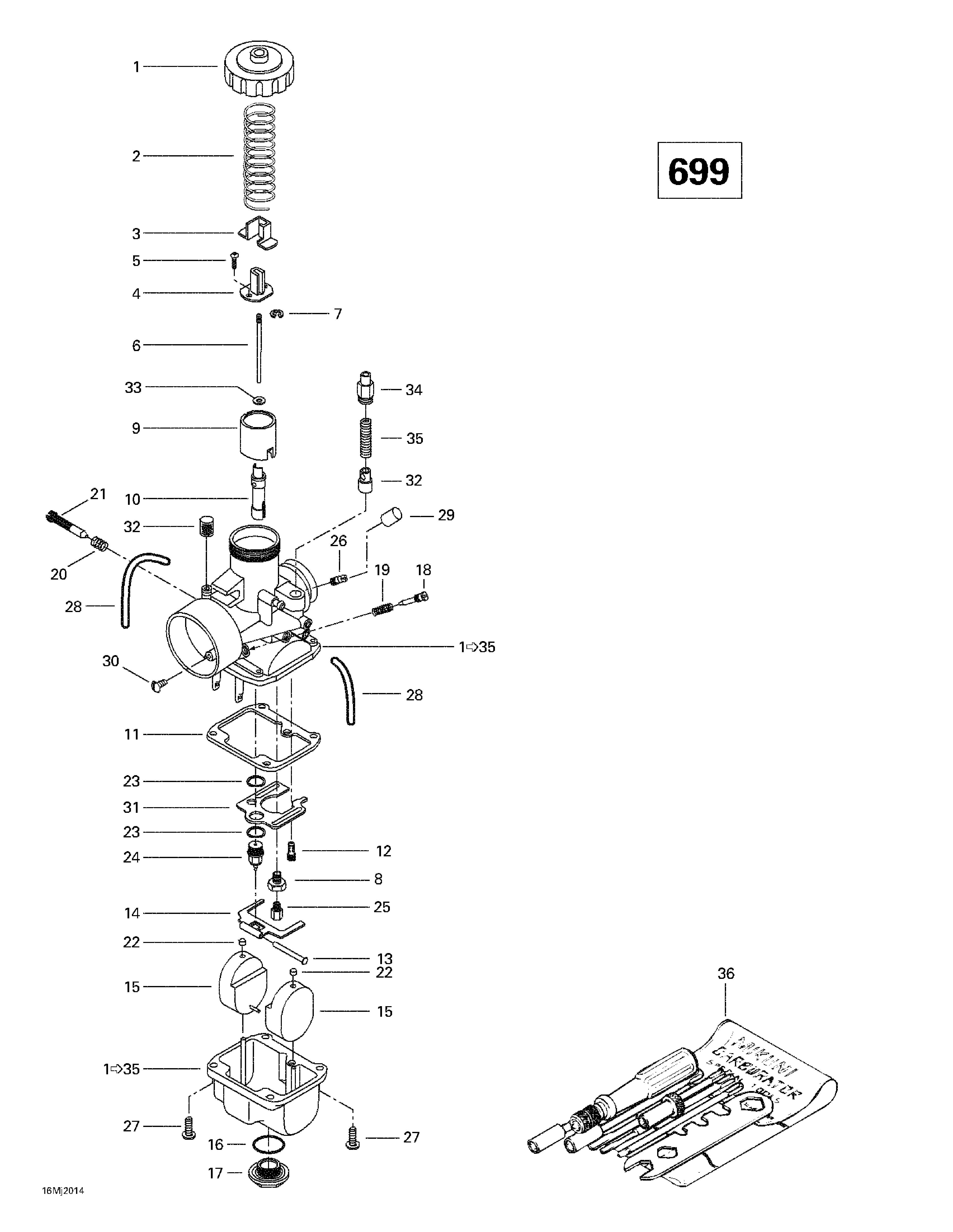

02- Carburetors (699) для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000
-
№АртикулНазвание
-
1403138612 VM 38-436 Carburetor (PTO / MAG). Includes 1 - 35. GT 700.VM 38-436 Carburetor (PTO / MAG). Includes 1 - 35. GT 700.
-
403138635 VM 38-436 Carburetor (CTR). GT 700.VM 38-436 Carburetor (CTR). GT 700.
-
1404105100 Cover. GT 700.Cover. GT 700.
-
2404154800 Spring. GT 700.Spring. GT 700.
-
3404122100 Cover. GT 700.Cover. GT 700.
-
4404160800 Connector. GT 700.Connector. GT 700.
-
5404121300 Screw with Washer. GT 700.Screw with Washer. GT 700.
-
6404157900 Jet Needle J8-6DEY2. GT 700.Jet Needle J8-6DEY2. GT 700.
-
7404152400 E-Ring. GT 700.E-Ring. GT 700.
-
8404105500 Guide Screw. GT 700.Guide Screw. GT 700.
-
9404131300 Piston Valve 2.5. GT 700.Piston Valve 2.5. GT 700.
-
10404131500 Needle Jet. GT 700.Needle Jet. GT 700.
-
11404104700 Gasket. GT 700.Gasket. GT 700.
-
12404109500 Pilot Jet PJ 50. GT 700.Pilot Jet PJ 50. GT 700.
-
13404103300 Lever Pin. GT 700.Lever Pin. GT 700.
-
14404105000 Float Lever. GT 700.Float Lever. GT 700.
-
15404105400 Float. GT 700.Float. GT 700.
-
16404101500 Washer. GT 700.Washer. GT 700.
-
17404105600 Drain Plug Screw. GT 700.Drain Plug Screw. GT 700.
-
18404149000 Air Screw. GT 700.Air Screw. GT 700.
-
19404139800 Spring (Air Screw). GT 700.Spring (Air Screw). GT 700.
-
20404101700 Spring (Idle Speed Screw). GT 700.Spring (Idle Speed Screw). GT 700.
-
21404102800 Idle Speed Screw. GT 700.Idle Speed Screw. GT 700.
-
22404105800 Cap. GT 700.Cap. GT 700.
-
23404101600 Seat Washer. GT 700.Seat Washer. GT 700.
-
24404147400 Needle Valve 1.5. GT 700.Needle Valve 1.5. GT 700.
-
25404100400 Main Jet MJ 270 (PTO / MAG). GT 700.Main Jet MJ 270 (PTO / MAG). GT 700.
-
404100500 Main Jet MJ 280 (CTR). GT 700.Main Jet MJ 280 (CTR). GT 700.
-
26404153400 Nipple. GT 700.Nipple. GT 700.
-
27404102000 Screw with Lock Washer. GT 700.Screw with Lock Washer. GT 700.
-
28404137800 Hose. GT 700.Hose. GT 700.
-
29404154900 Cap. GT 700.Cap. GT 700.
-
30404131700 Plug Screw. GT 700.Plug Screw. GT 700.
-
32404161000 Plunger Ass'y. GT 700.Plunger Ass'y. GT 700.
-
33404117000 Packing. GT 700.Packing. GT 700.
-
34404161100 Guide Holder. GT 700.Guide Holder. GT 700.
-
35404127400 Spring. GT 700.Spring. GT 700.
-
36404112000 Tool Kit. GT 700.Tool Kit. GT 700.
