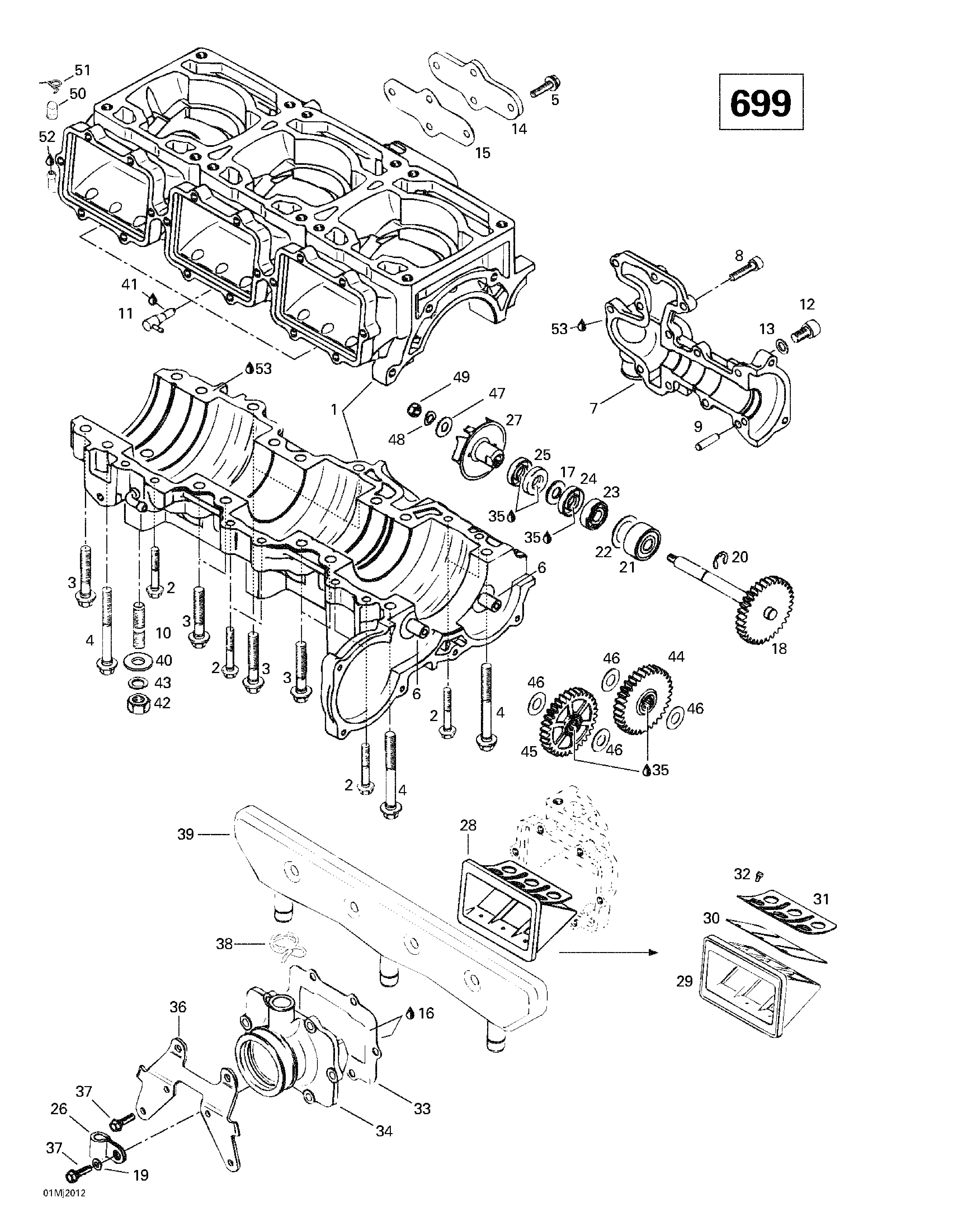

01- Crankcase, Reed Valve, Water Pump (699) для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1420888515 Crankcase Water Pump Cover Ass'y. Includes 1 - 15.Crankcase Water Pump Cover Ass'y. Includes 1 - 15.
-
2420941451 Collar Hex. Screw M6 x 40Collar Hex. Screw M6 x 40
-
3420940636 Collar Hex. Screw M8 x 45Collar Hex. Screw M8 x 45
-
4420841306 Collar Hex. Screw M8 x 65Collar Hex. Screw M8 x 65
-
5420941250 Tapping Screw M6 x 20Tapping Screw M6 x 20
-
6420929935 Intermediate Gear ShaftIntermediate Gear Shaft
-
8205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
9420429230 Dowel PinDowel Pin
-
10420940400 Stud M10 x 25Stud M10 x 25
-
11420956510 Check ValveCheck Valve
-
12205081644 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
13420950141 Sealing RingSealing Ring
-
14420810470 Water Duct CoverWater Duct Cover
-
15420931300 Water Duct GasketWater Duct Gasket
-
16413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
17420927410 Washer 10.3Washer 10.3
-
18420837437 Waterpump - Shaft/Gear Ass'yWaterpump - Shaft/Gear Ass'y
-
19420827800 Washer 5.5Washer 5.5
-
20420845390 Retaining RingRetaining Ring
-
21420832490 Ball BearingBall Bearing
-
22420944466 Shim 1 mmShim 1 mm
-
23420232100 Ball BearingBall Bearing
-
24420230195 Oil SealOil Seal
-
25420950400 Oil SealOil Seal
-
26414176000 Cable ClipCable Clip
-
27420922445 Water ImpellerWater Impeller
-
28420924519 Reed Valve Ass'y. Includes 28 - 32.Reed Valve Ass'y. Includes 28 - 32.
-
30420924532 Pedal ReedPedal Reed
-
31420924539 Pedal Reed StopPedal Reed Stop
-
32420941215 Oval-Head Screw M3 x 5Oval-Head Screw M3 x 5
-
33420950292 Gasket 1mmGasket 1mm
-
34420867841 Intake SocketIntake Socket
-
35413707000 Molykote 111Molykote 111
-
36420851351 CarrierCarrier
-
37420841555 Taptite Screw M5 x 20Taptite Screw M5 x 20
-
38420851360 ClampClamp
-
39420867792 Intake ResonatorIntake Resonator
-
40234001410 Washer 10 mmWasher 10 mm
-
41413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
42232006414 Nut M10Nut M10
-
43234100602 Lock Washer 10 mmLock Washer 10 mm
-
44420834266 Sprocket 32 TSprocket 32 T
-
45420834267 Sprocket 32 TSprocket 32 T
-
46420927952 Thrust WasherThrust Washer
-
47420227155 WasherWasher
-
48420845020 Spring WasherSpring Washer
-
49420842042 Locking Nut M6Locking Nut M6
-
50420960770 CapCap
-
51420938190 ClampClamp
-
52293550021 Grease Isoflex, 45 gGrease Isoflex, 45 g
-
53420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
