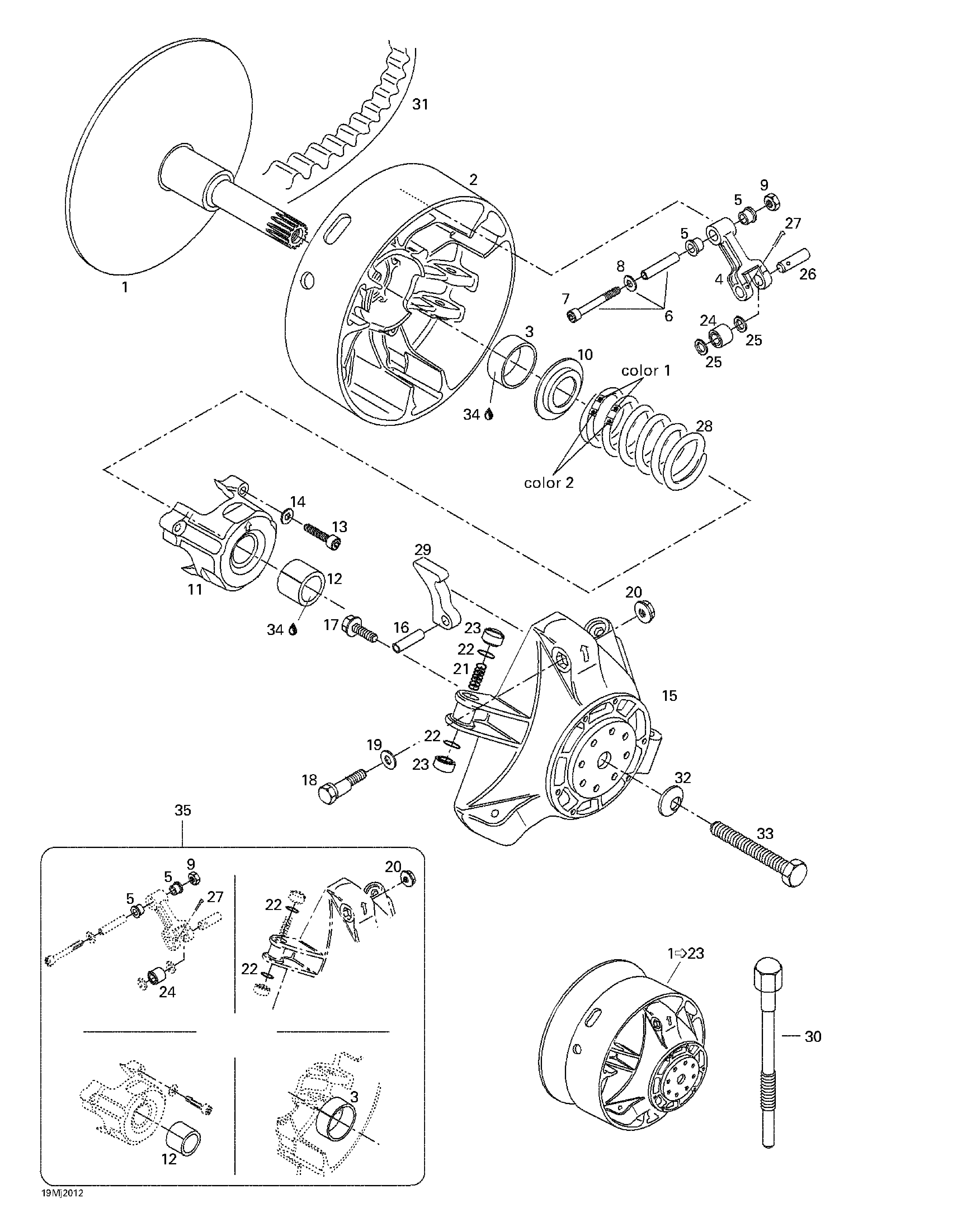

05- Drive Pulley для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1417222325 Drive Pulley Ass'y. Includes 1 - 23.Drive Pulley Ass'y. Includes 1 - 23.
-
1417222160 Fixed FlangeFixed Flange
-
2417222049 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 BushingBushing
-
4417003801 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 Flange BushingFlange Bushing
-
6417004800 Fitting Screw. Includes 6 - 8.Fitting Screw. Includes 6 - 8.
-
9228561045 Lock Nut M6Lock Nut M6
-
10417222044 Spring SeatSpring Seat
-
11417222157 Spring Cover Ass'y. Includes 11 - 12.Spring Cover Ass'y. Includes 11 - 12.
-
12417004501 Bushing Spring CoverBushing Spring Cover
-
13222964066 Allen Screw M6 x 40Allen Screw M6 x 40
-
14420245370 Friction-Washer 6 mmFriction-Washer 6 mm
-
15417222059 Governor CupGovernor Cup
-
16732804009 Roll Pin M8 x 24Roll Pin M8 x 24
-
17210361890 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
18417005500 Calibration ScrewCalibration Screw
-
19417005600 WasherWasher
-
20233061414 Flanged Nut M6Flanged Nut M6
-
21417005700 SpringSpring
-
22732401030 O-RingO-Ring
-
23417222107 Slider ShoeSlider Shoe
-
24417003900 RollerRoller
-
25417004302 Thrust WasherThrust Washer
-
26417004308 PinPin
-
27732958001 Cotter PinCotter Pin
-
28414762800 Spring (Green/Violet)Spring (Green/Violet)
-
29417005297 Ramp 297Ramp 297
-
30529022400 Puller Inner HalfPuller Inner Half
-
31417300066 Drive BeltDrive Belt
-
32234271414 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
33417120000 ScrewScrew
-
34413703100 Loctite 609, 10ccLoctite 609, 10cc
-
35417006100 Clutch Repair KitClutch Repair Kit
