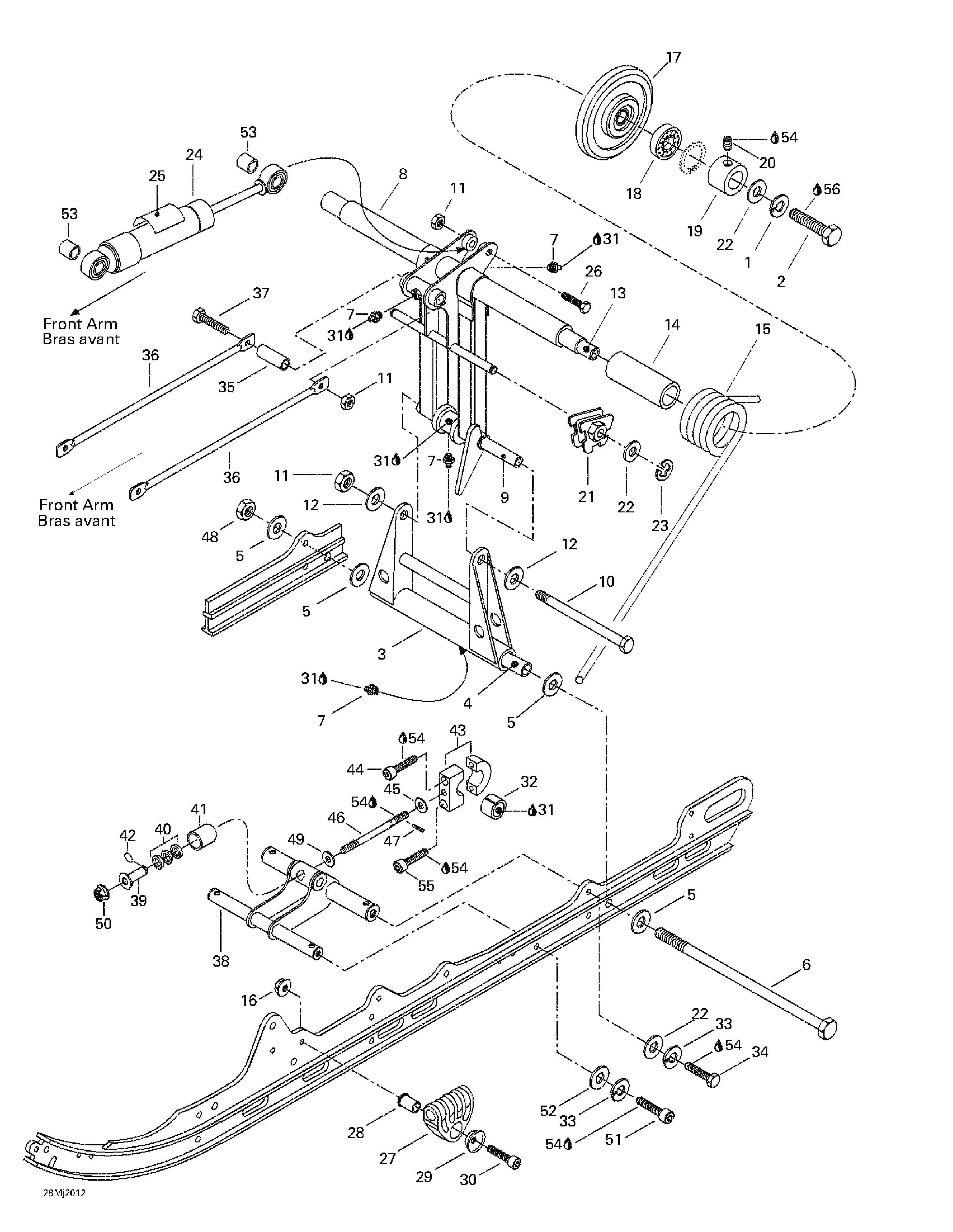

08- Rear Arm, Rear Suspension для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
3503169200 Pivot Welded ArmPivot Welded Arm
-
4503154703 Lower Axle PivotLower Axle Pivot
-
5224081201 WasherWasher
-
6732601198 Bolt M8Bolt M8
-
7408200700 Grease Fitting M6Grease Fitting M6
-
8503186100 Welded Rear ArmWelded Rear Arm
-
9503144300 Upper AxleUpper Axle
-
10732601197 Bolt M8Bolt M8
-
11232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
12234081410 WasherWasher
-
13503168700 Transversal Rear AxleTransversal Rear Axle
-
14572080700 BushingBushing
-
15503188100 R.H. SpringR.H. Spring
-
503188200 L.H. SpringL.H. Spring
-
16233281414 Flanged Elastic Stop Nut M8Flanged Elastic Stop Nut M8
-
17572091400 Idler Wheel. Includes 17 - 18.Idler Wheel. Includes 17 - 18.
-
18405404500 Ball Bearing 6205Ball Bearing 6205
-
19503168800 Retaining RingRetaining Ring
-
20206260844 Socket Set Screw M6Socket Set Screw M6
-
21572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
22234001410 Washer 10 mmWasher 10 mm
-
23371907100 CirclipCirclip
-
24503188912 Rear ShockRear Shock
-
25516000182 Shock Decal (HPG)Shock Decal (HPG)
-
26207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
27503188933 Spring SupportSpring Support
-
28503188934 Spring Axle GuideSpring Axle Guide
-
29503188929 Retainer CushionRetainer Cushion
-
30205084544 Socket Screw M8 x 45Socket Screw M8 x 45
-
31219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
32415027800 CushionCushion
-
33234100602 Lock Washer 10 mmLock Washer 10 mm
-
34207103044 Hex. Screw M10 x 30Hex. Screw M10 x 30
-
35503158600 Tie Rod ShaftTie Rod Shaft
-
36503187100 Tie RodTie Rod
-
37207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
38503188969 Bracket WeldBracket Weld
-
39503172900 Bushing WeldBushing Weld
-
40570049600 Rubber StopperRubber Stopper
-
41503103600 CupCup
-
42371910700 CirclipCirclip
-
43503189044 Pivot Block Ass'y. Includes 43 - 47.Pivot Block Ass'y. Includes 43 - 47.
-
44205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
47732804011 Roll PinRoll Pin
-
48233281414 Nut Flanged Elastic M8Nut Flanged Elastic M8
-
49503183400 WasherWasher
-
50233201414 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
51205003544 Socket Head Screw M10 x 35Socket Head Screw M10 x 35
-
52503176700 Hard Washer 10 mmHard Washer 10 mm
-
53414936000 CushionCushion
-
54413707400 Loctite 271, 10 c.cLoctite 271, 10 c.c
-
55205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
56293800060 Loctite 243, 10 mlLoctite 243, 10 ml
