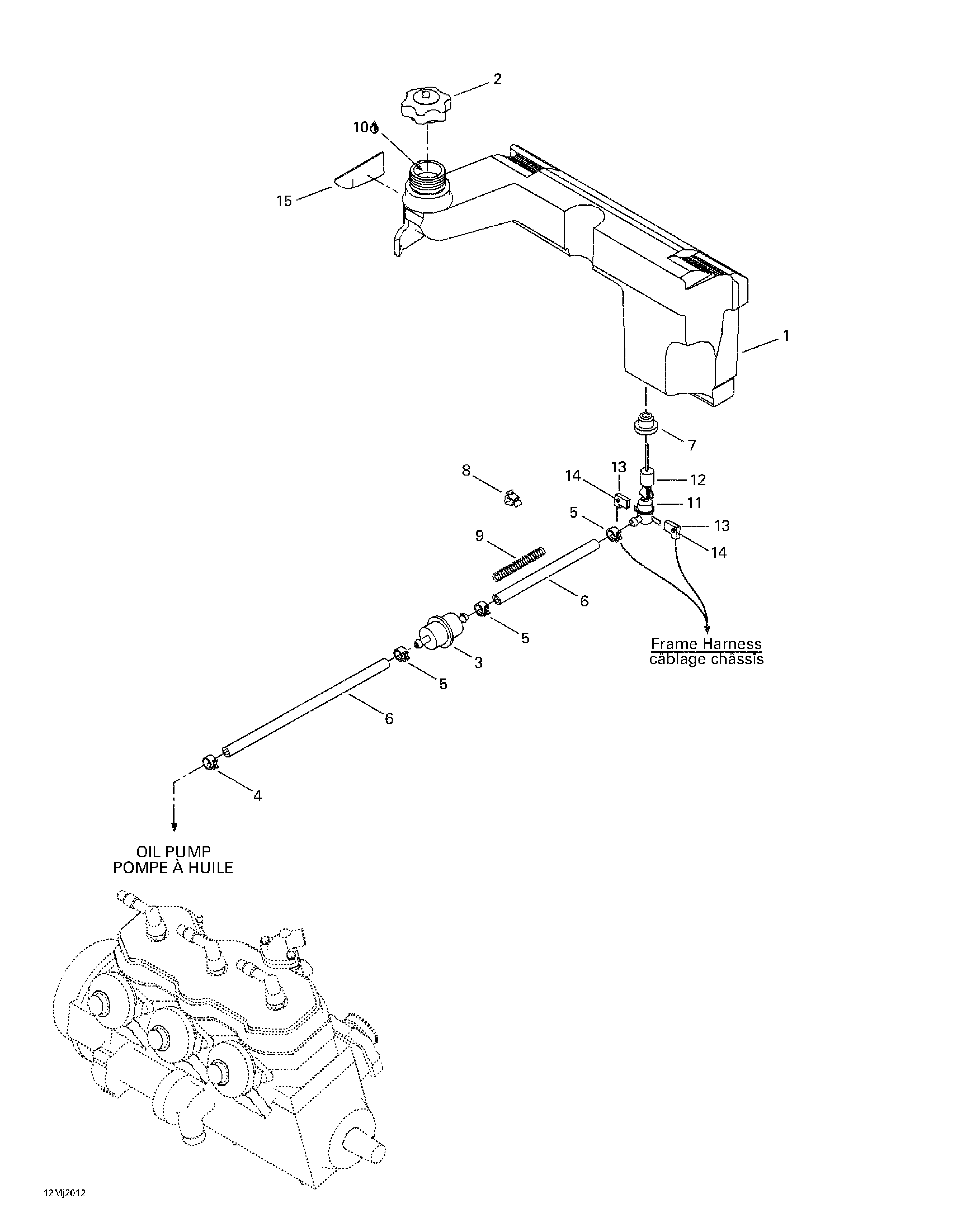

02- Oil Tank для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1572088500 Injection Oil TankInjection Oil Tank
-
2572071000 Oil Tank CapOil Tank Cap
-
3414536500 FilterFilter
-
4414420700 Spring ClipSpring Clip
-
5414415200 Spring ClipSpring Clip
-
6415080700 Oil LineOil Line
-
7570023000 GrommetGrommet
-
8414227300 ClipClip
-
9519000001 SpringSpring
-
10413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
11414681800 Oil Lever SensorOil Lever Sensor
-
12414681900 FloatFloat
-
13409204800 Female Terminal Housing (1 circuit)Female Terminal Housing (1 circuit)
-
14409205300 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
15514052953 Reflective SheetReflective Sheet
