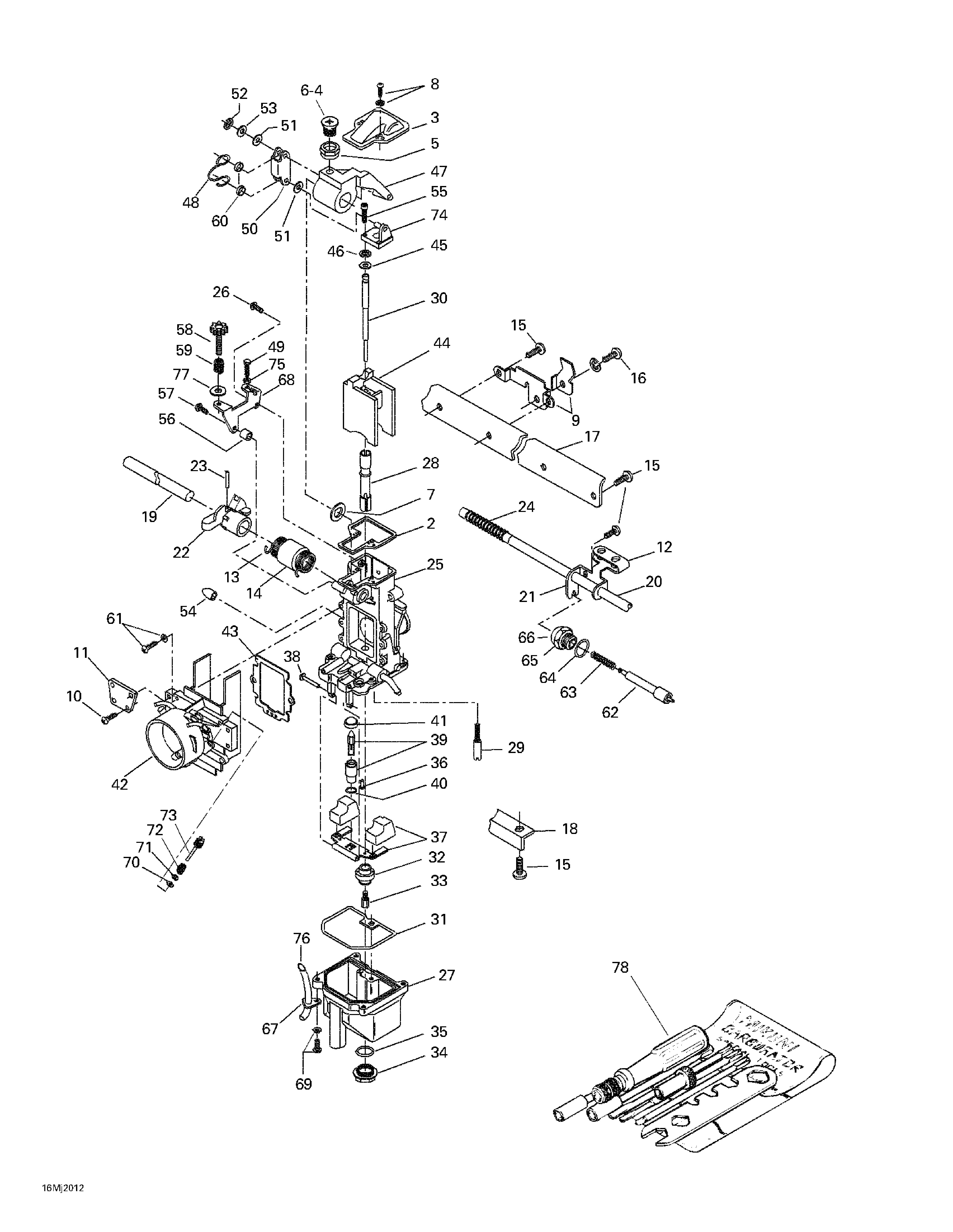

02- Carburetors для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1403138631 Carburetor Kit TM38-C293. Includes 1 - 76.Carburetor Kit TM38-C293. Includes 1 - 76.
-
2404143600 GasketGasket
-
3404142700 CoverCover
-
4404139000 ScrewScrew
-
5404143500 RingRing
-
6404138900 ScrewScrew
-
7404144400 PackingPacking
-
8404139100 ScrewScrew
-
9404155100 Bracket Ass'yBracket Ass'y
-
10404136100 ScrewScrew
-
11404161838 PlatePlate
-
12404143900 LeverLever
-
13404143200 SpringSpring
-
14404141700 RingRing
-
15404138800 ScrewScrew
-
16404140500 ScrewScrew
-
17404161836 PlatePlate
-
18404161837 PlatePlate
-
19404161834 Throttle ShaftThrottle Shaft
-
20404161835 Choke ShaftChoke Shaft
-
21404140600 Starter LeverStarter Lever
-
22404142100 Lever Ass'yLever Ass'y
-
23404140100 PinPin
-
24404158000 SpringSpring
-
26404135900 Screw (MAG)Screw (MAG)
-
27404161841 Float Body Ass'yFloat Body Ass'y
-
28404161839 Needle JetNeedle Jet
-
29404144800 Pilot Jet 50Pilot Jet 50
-
30404154000 Needle J8-8AGY01- 41Needle J8-8AGY01- 41
-
31404137000 O-RingO-Ring
-
32404142900 RingRing
-
33404101100 Main Jet 290Main Jet 290
-
34404107400 Drain Screw PlugDrain Screw Plug
-
35404107300 O-RingO-Ring
-
36404141000 ScrewScrew
-
37404149800 FloatFloat
-
38404103300 Lever PinLever Pin
-
39404149500 Needle Seat 1.5Needle Seat 1.5
-
40270500127 O-RingO-Ring
-
41404141200 FilterFilter
-
42404161831 Funnel (MAG)Funnel (MAG)
-
404161832 Funnel (CTR)Funnel (CTR)
-
404161833 Funnel (PTO)Funnel (PTO)
-
43404143700 GasketGasket
-
44404152900 Piston Valve 2.0Piston Valve 2.0
-
45404137600 PackingPacking
-
46404113300 CirclipCirclip
-
47404143000 Throttle Lever (PTO/CTR)Throttle Lever (PTO/CTR)
-
404143100 Throttle Lever (MAG)Throttle Lever (MAG)
-
48404144100 ClipClip
-
49404138000 Bolt (MAG)Bolt (MAG)
-
50404144000 PlatePlate
-
51404138100 PackingPacking
-
52404138300 > Ring> Ring
-
53404139500 WasherWasher
-
54404154900 CapCap
-
55404137400 BoltBolt
-
56404141800 Ring (MAG)Ring (MAG)
-
57404138800 Screw (MAG)Screw (MAG)
-
58404137500 Adjustment Screw (MAG)Adjustment Screw (MAG)
-
59404138200 Spring (MAG)Spring (MAG)
-
60404144200 RingRing
-
61404145100 ScrewScrew
-
62404161842 Plunger Ass'yPlunger Ass'y
-
63404141100 SpringSpring
-
64404140200 O-RingO-Ring
-
65404136900 Holder GuideHolder Guide
-
66404140000 CapCap
-
67404144900 PlatePlate
-
68404142600 Bracket (MAG)Bracket (MAG)
-
69404138700 ScrewScrew
-
70404139900 O-RingO-Ring
-
71404140900 WasherWasher
-
72404139800 SpringSpring
-
73404154200 Adjuster ScrewAdjuster Screw
-
74404142000 Plate Ass'yPlate Ass'y
-
75404139600 Nut (MAG)Nut (MAG)
-
76404161802 Air Vent TubeAir Vent Tube
-
77404161885 Washer (MAG)Washer (MAG)
-
78404112000 Tool KitTool Kit
