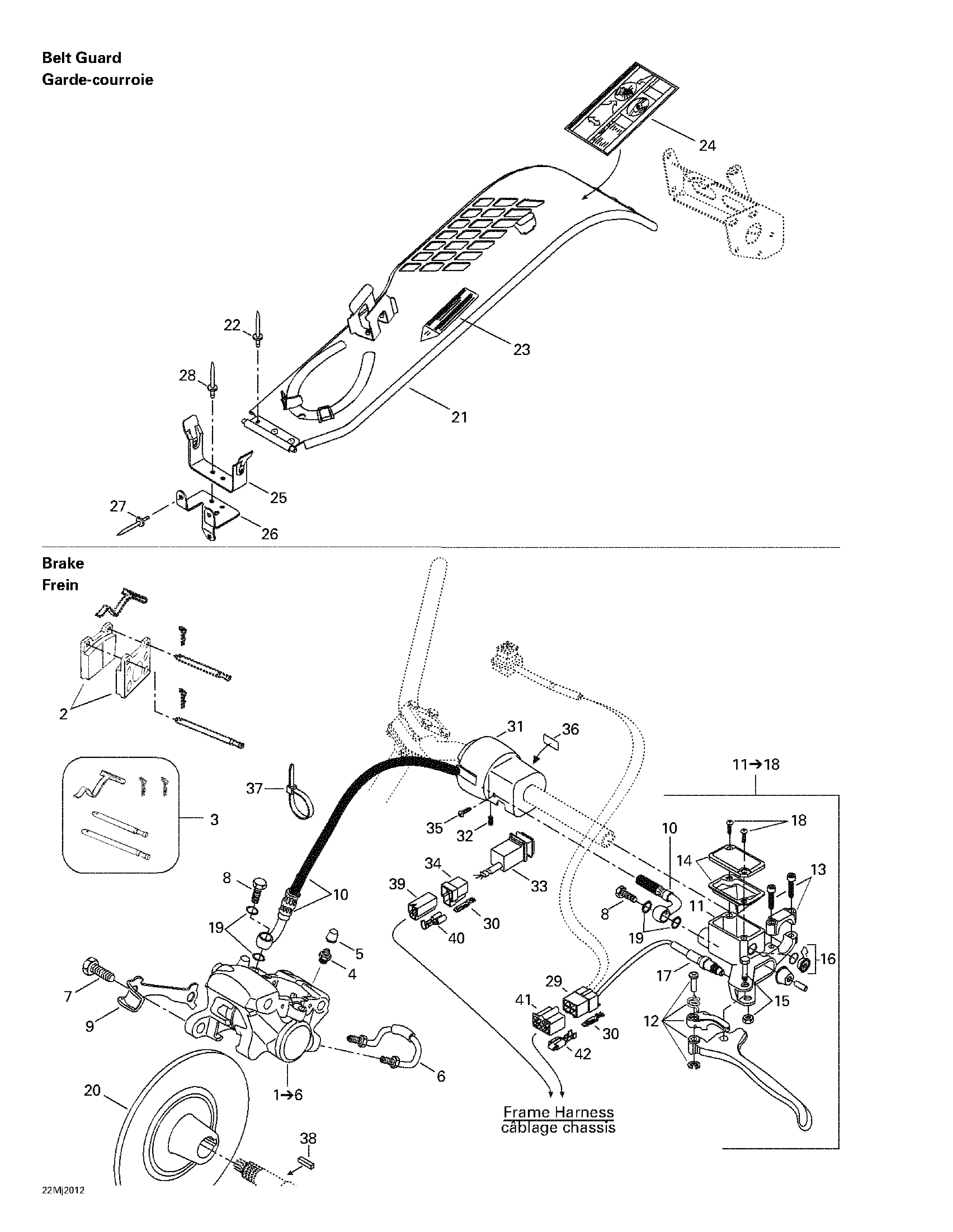

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1414920000 Caliper. Includes 1 - 6.Caliper. Includes 1 - 6.
-
2414990000 Brake Lining KitBrake Lining Kit
-
3414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Screw-BleederScrew-Bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
7207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
8414920500 Banjo BoltBanjo Bolt
-
9507031900 Locking TabLocking Tab
-
10507032220 HoseHose
-
11507032277 Master Cylinder. Includes 11 - 18.Master Cylinder. Includes 11 - 18.
-
12415075300 Lever Ass'yLever Ass'y
-
13415029800 Clamp Ass'yClamp Ass'y
-
14415029900 CoverCover
-
15415030000 Pin Ass'yPin Ass'y
-
16414990600 WindowWindow
-
17507032284 Microswitch Ass'yMicroswitch Ass'y
-
18216141260 Screw M4 x 12Screw M4 x 12
-
19414920600 WasherWasher
-
20507031300 Brake DiskBrake Disk
-
21417300050 Belt Guard Ass'y. Includes 21 - 23.Belt Guard Ass'y. Includes 21 - 23.
-
22390402200 Pop Rivet 3/16Pop Rivet 3/16
-
23516000132 Warning LabelWarning Label
-
24418001707 Decal (Suspension Adjustment)Decal (Suspension Adjustment)
-
25518202100 Pulley Guard BracketPulley Guard Bracket
-
26518317000 Pulley Guard SupportPulley Guard Support
-
27390409600 Pop Rivet 3/16Pop Rivet 3/16
-
28390402200 Pop Rivet 3/16Pop Rivet 3/16
-
29409209300 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
30409210000 Male TerminalMale Terminal
-
31515175307 Brake HousingBrake Housing
-
32414440800 Set ScrewSet Screw
-
33515175423 SwitchSwitch
-
34409204200 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
35250000022 Phillips ScrewPhillips Screw
-
36415025500 Switch DecalSwitch Decal
-
37414115200 Tie Rap 180 mmTie Rap 180 mm
-
38507021300 KeyKey
-
39409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
40561503100 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
41409204900 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
42561503200 Female Terminal (18-20 Gauge)Female Terminal (18-20 Gauge)
