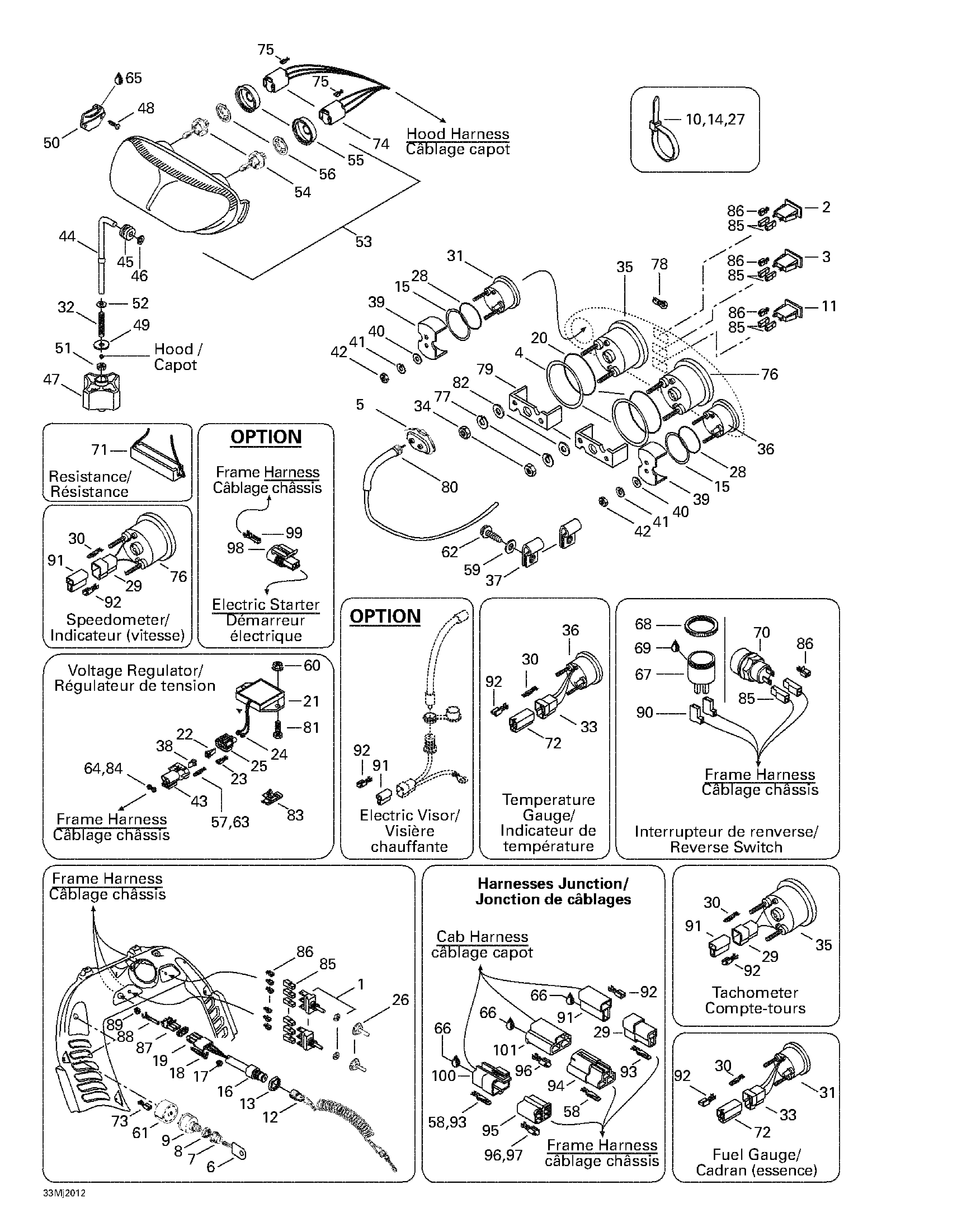

10- Electrical System для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1410107300 Switch (Heating Grip)Switch (Heating Grip)
-
2410109500 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
3410109600 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
4517258500 WasherWasher
-
5515175400 Drive AngleDrive Angle
-
6414991700 Blank Key (Pkg. 5)Blank Key (Pkg. 5)
-
7570013700 Switch BootSwitch Boot
-
8410112100 Face NutFace Nut
-
9410111300 Ignition SwitchIgnition Switch
-
10293750002 Tie Rap 130 mmTie Rap 130 mm
-
11515175137 Pilot Lamp (Reverse / DESS)Pilot Lamp (Reverse / DESS)
-
12515166900 DESS Cap Ass'yDESS Cap Ass'y
-
13278000508 Safety Switch NutSafety Switch Nut
-
14293750008 Tie Rap 350 mmTie Rap 350 mm
-
15517258600 WasherWasher
-
16515166800 Terminal Ass'y. Includes 16 - 19.Terminal Ass'y. Includes 16 - 19.
-
17278000218 Wire SealWire Seal
-
18278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
19278000281 Male Terminal Housing (3 Circuits))Male Terminal Housing (3 Circuits))
-
20414807100 O-RingO-Ring
-
21515175491 Voltage Regulator. Includes 21 - 25.Voltage Regulator. Includes 21 - 25.
-
22409013400 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
23278000994 Female TerminalFemale Terminal
-
24278000996 Wire Seal (Orange)Wire Seal (Orange)
-
25409208000 Female Terminal Housing (4 Circuits))Female Terminal Housing (4 Circuits))
-
26515175281 Switch CoverSwitch Cover
-
27414115200 Tie Rap 180 mmTie Rap 180 mm
-
28414807200 PackingPacking
-
29409204500 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
30409210000 Male Terminal (14-18 Gauge)Male Terminal (14-18 Gauge)
-
31515175343 Fuel GaugeFuel Gauge
-
32415100600 SpringSpring
-
33409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
34414806900 NutNut
-
35515175340 TachometerTachometer
-
36515175342 Temperature GaugeTemperature Gauge
-
37414176000 Cable ClipCable Clip
-
38409013100 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
39415099800 Case HolderCase Holder
-
40391301700 WasherWasher
-
41414833700 Lock WasherLock Washer
-
42414833600 NutNut
-
43409207700 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
44517295800 Adjuster RodAdjuster Rod
-
45415100800 GrommetGrommet
-
46732610072 Push NutPush Nut
-
47572100800 HandleHandle
-
48732601315 Headlamp ScrewHeadlamp Screw
-
49224060251 Flat WasherFlat Washer
-
50517289300 Headlamp Support R.HHeadlamp Support R.H
-
517289400 Headlamp Support L.HHeadlamp Support L.H
-
51232561414 Hex. Elastic Nut M6Hex. Elastic Nut M6
-
52234061410 Flat WasherFlat Washer
-
53515175158 Halogen Headlamp. Includes 53 - 56.Halogen Headlamp. Includes 53 - 56.
-
54410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
55410607100 Protector CapProtector Cap
-
56410608300 Bulb HolderBulb Holder
-
58409206100 Male Terminal (18-20 Gauge)Male Terminal (18-20 Gauge)
-
59391301600 Flat WasherFlat Washer
-
60233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
61572150700 Ignition Switch Block (9 Circuits)Ignition Switch Block (9 Circuits)
-
62365901100 Hex. Tapping ScrewHex. Tapping Screw
-
63409010900 Male Terminal (12-14 Gauge)Male Terminal (12-14 Gauge)
-
64409208300 Wire Seal (12-14 Gauge) (Black)Wire Seal (12-14 Gauge) (Black)
-
65413707500 Grease Tube LMZ, 400 grGrease Tube LMZ, 400 gr
-
66293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
67415060900 AC AlarmAC Alarm
-
68414805101 Plastic NutPlastic Nut
-
69296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
70415101200 Reverse KnobReverse Knob
-
71515175241 Resistance 50 OhmsResistance 50 Ohms
-
72409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
73561503100 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
74409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
75409011400 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
76515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
77414806700 Lock WasherLock Washer
-
78410504200 Instrumentation BulbInstrumentation Bulb
-
79414806500 Case HolderCase Holder
-
80515175218 Speedometer CableSpeedometer Cable
-
81207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
82414806800 WasherWasher
-
83515175283 Housing SupportHousing Support
-
84278000996 Wire Seal (Orange)Wire Seal (Orange)
-
85409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
86409010100 Female Terminal (18-20 Gauge)Female Terminal (18-20 Gauge)
-
87278000273 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
88278000223 Female Terminal (18-20 Gauge)Female Terminal (18-20 Gauge)
-
89409208300 Wire SealWire Seal
-
90409010300 Female Terminal 90 DegFemale Terminal 90 Deg
-
91409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
92561503100 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
93561503400 Male Terminal (16-20 Gauge)Male Terminal (16-20 Gauge)
-
94409008600 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
95409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
96561503200 Female Terminal (18-20 Gauge)Female Terminal (18-20 Gauge)
-
97515175313 Female Terminal (14-16 Gauge)Female Terminal (14-16 Gauge)
-
98278001113 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
99278001114 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
100409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
101409008500 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
