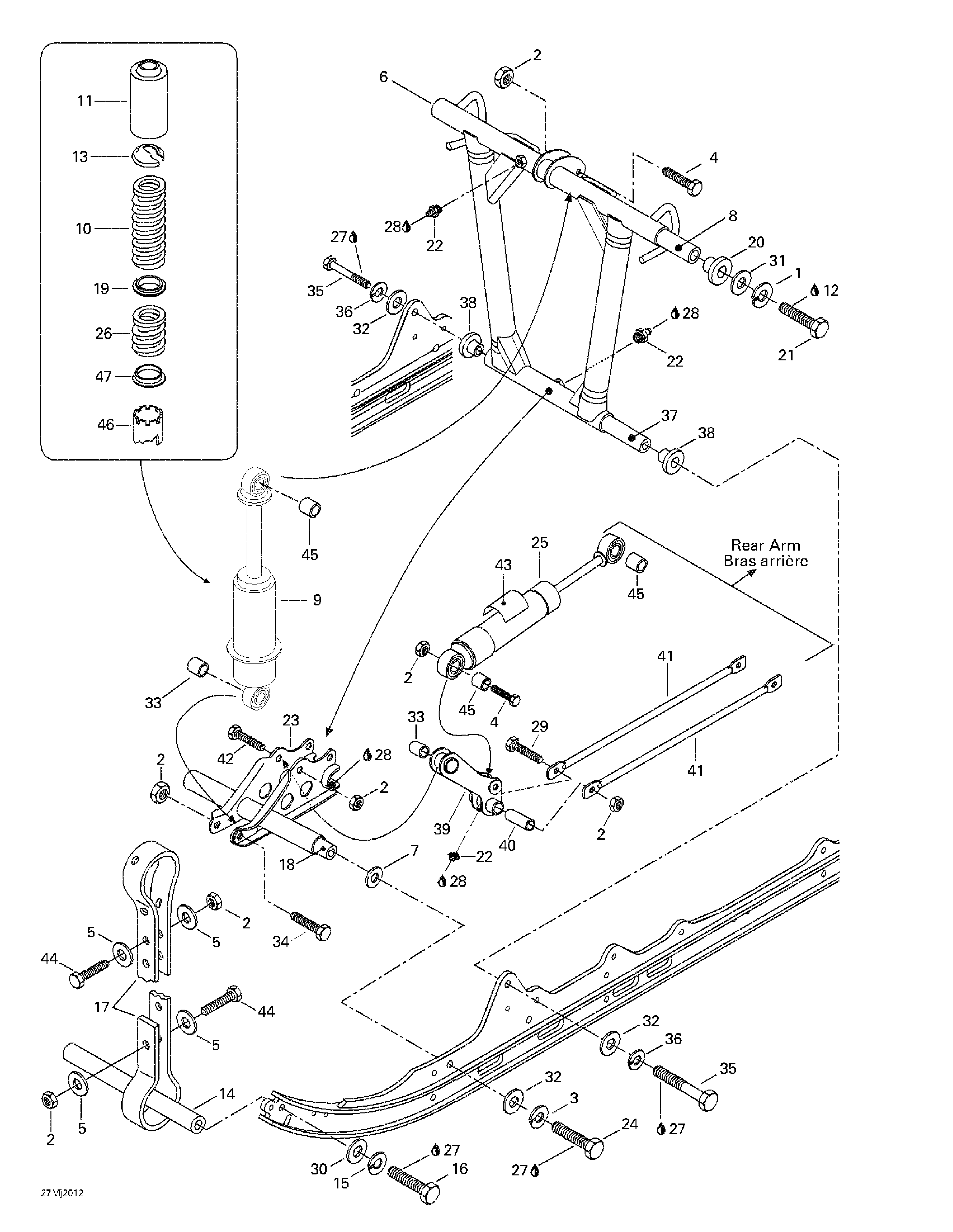

08- Front Arm, Rear Suspension для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
3234120602 Lock Washer 12 mmLock Washer 12 mm
-
4207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
5517078700 WasherWasher
-
6503171100 Welded Front ArmWelded Front Arm
-
7503175400 Hard WasherHard Washer
-
8503188938 ShaftShaft
-
9503188913 ShockShock
-
10415090600 Shock SpringShock Spring
-
11503188930 ProtectorProtector
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13503140600 Spring StopperSpring Stopper
-
14503151600 AxleAxle
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
17503189362 Stopper StrapStopper Strap
-
18503174900 Lower Axle (Shock Support)Lower Axle (Shock Support)
-
19503182200 Spring SpacerSpring Spacer
-
20503189324 CushionCushion
-
21207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
22408200700 Grease Fitting M6Grease Fitting M6
-
23503188976 Welded Shock SupportWelded Shock Support
-
24207124044 Hex. Screw M12 x 40Hex. Screw M12 x 40
-
25503188912 Rear ShockRear Shock
-
26415090500 SpringSpring
-
27413707400 Loctite 271, 10 ccLoctite 271, 10 cc
-
28219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
29207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
30234081410 Flat Washer 8 mmFlat Washer 8 mm
-
31234001410 Flat Washer 10 mmFlat Washer 10 mm
-
32234021410 Flat Washer 12 mmFlat Washer 12 mm
-
33414917900 CushionCushion
-
34207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
35207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
36234120602 Lock Washer 12 mmLock Washer 12 mm
-
37503189313 ShaftShaft
-
38503189323 CushionCushion
-
39503158500 LeverLever
-
40503158600 Tie Rod ShaftTie Rod Shaft
-
41503187100 Tie RodTie Rod
-
42207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
43516000182 Shock Decal (HPG)Shock Decal (HPG)
-
44207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
45414936000 CushionCushion
-
46414762600 Adjuster RingAdjuster Ring
-
47517184300 Spring GuideSpring Guide
