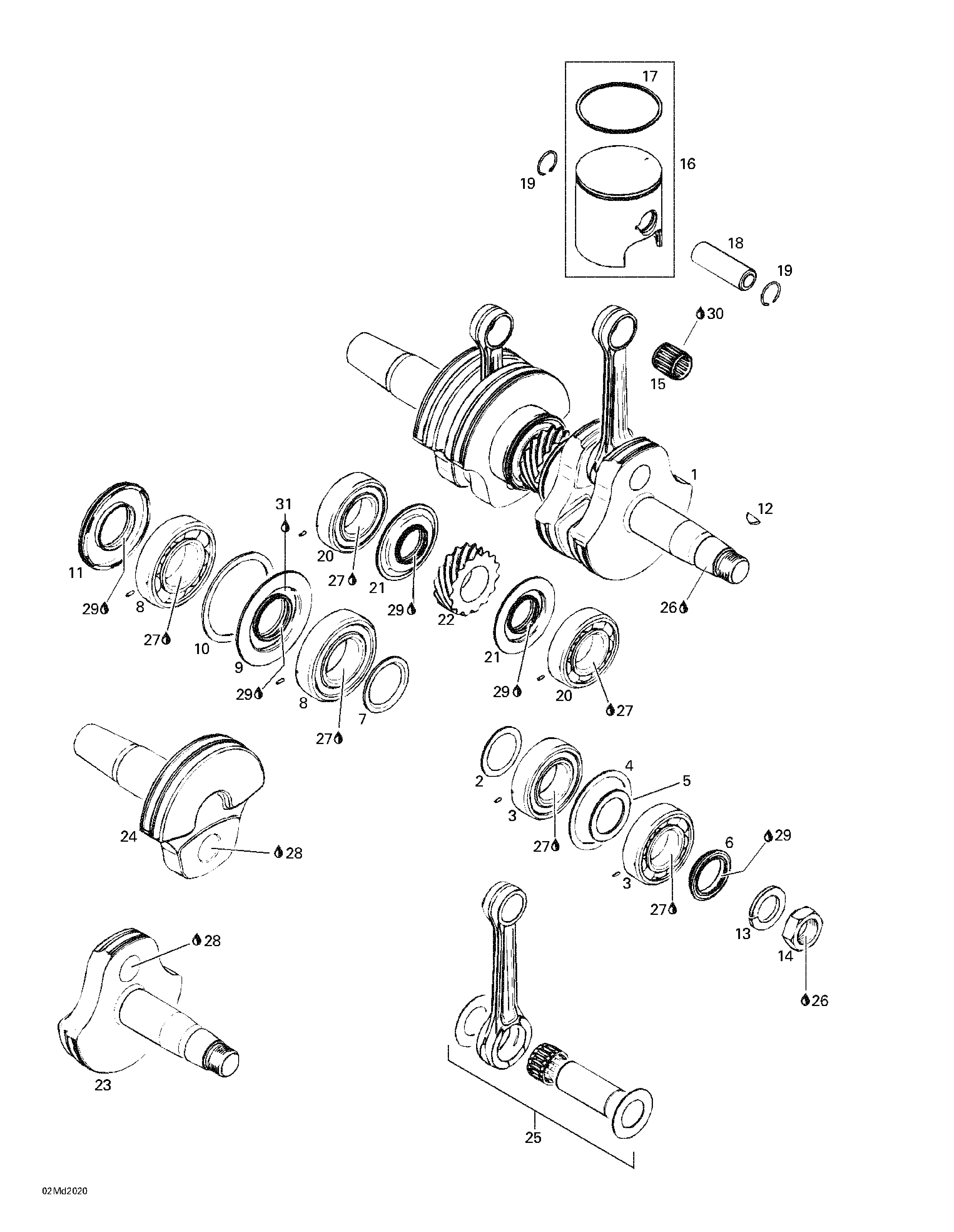

01- Crankshaft And Pistons для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1420888257 Crankshaft Ass'y. Includes 1 - 12.Crankshaft Ass'y. Includes 1 - 12.
-
2420827445 Distance RingDistance Ring
-
3420832590 Ball Bearing 6206Ball Bearing 6206
-
4420827050 Retaining DiskRetaining Disk
-
5420427684 Adjusting WasherAdjusting Washer
-
6420931790 Oil SealOil Seal
-
7420827760 Distance RingDistance Ring
-
8420832575 Ball Bearing 6207Ball Bearing 6207
-
9420931455 Oil SealOil Seal
-
10420927710 Retaining DiskRetaining Disk
-
11290831952 Oil SealOil Seal
-
12420246015 Woodruff KeyWoodruff Key
-
13420945759 Lock Washer 22 mmLock Washer 22 mm
-
14420842230 Nut M22Nut M22
-
15420832439 Needle BearingNeedle Bearing
-
16420888331 Piston Ass'y (1 Ring 64,88 mm). Includes 16 - 17.Piston Ass'y (1 Ring 64,88 mm). Includes 16 - 17.
-
17420815145 Semi-Trapez Ring 65,00 mmSemi-Trapez Ring 65,00 mm
-
18420916136 Gudgeon PinGudgeon Pin
-
19420945735 Piston CirclipPiston Circlip
-
20420832590 Ball Bearing 6206Ball Bearing 6206
-
21420931940 Oil SealOil Seal
-
22420834350 Central Gear 15 TeethCentral Gear 15 Teeth
-
23420818664 Crankshaft (PTO Side)Crankshaft (PTO Side)
-
24420818694 Crankshaft (MAG Side)Crankshaft (MAG Side)
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
28413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
29420899271 Grease Petamo GHY 133N, 400 gGrease Petamo GHY 133N, 400 g
-
30413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
31293550021 Isoflex Grease, 45 gIsoflex Grease, 45 g
