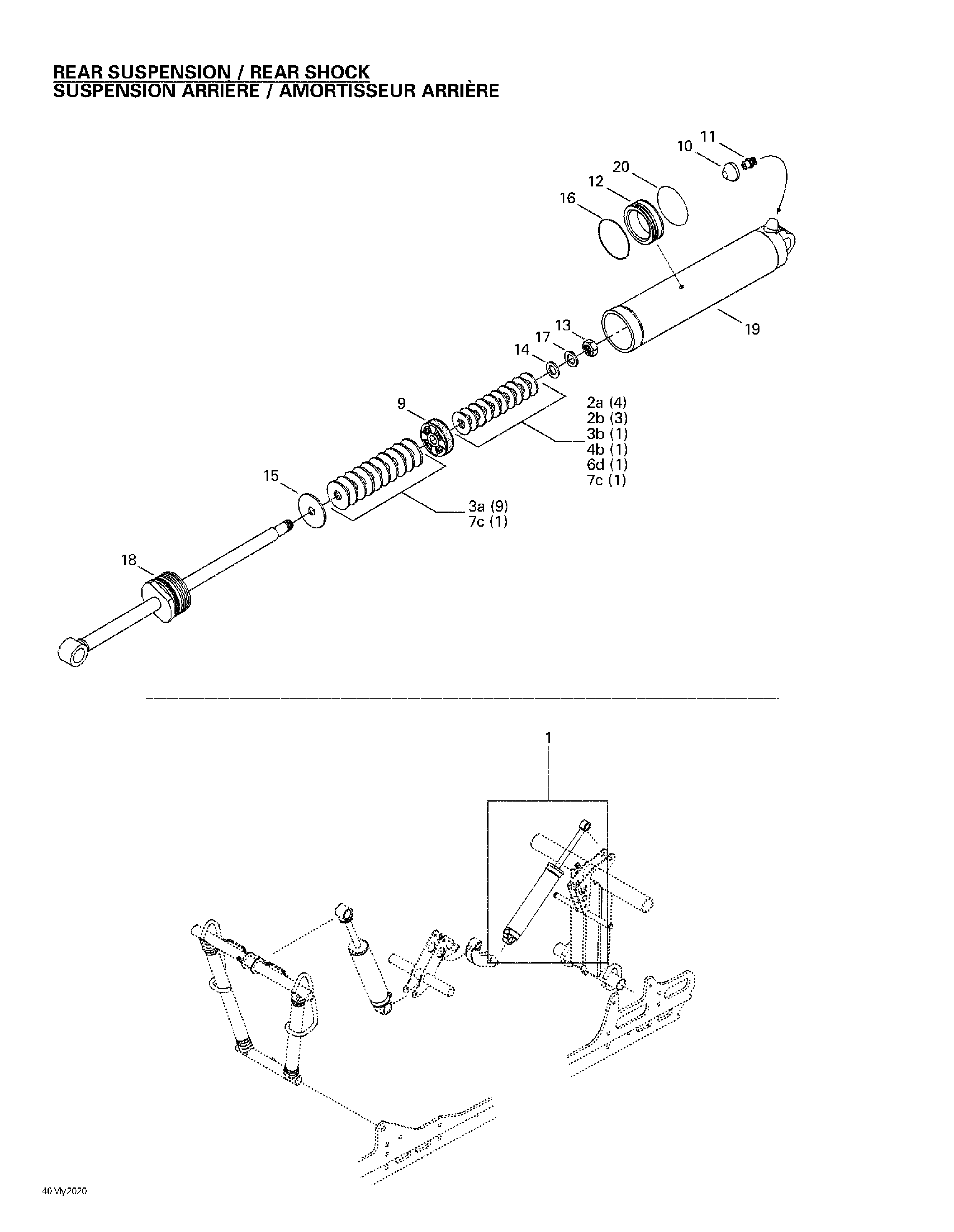

08- Rear Take Apart Shocks 2 для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1503189280 Take Apart Shock. . (Rear Suspension - Rear Shock)Take Apart Shock. . (Rear Suspension - Rear Shock)
-
2a503189041 Leaf Valve O40 x 0.254. .Leaf Valve O40 x 0.254. .
-
2b503189040 Leaf Valve O40 x 0.203. .Leaf Valve O40 x 0.203. .
-
2c503189039 Leaf Valve O40 x 0.114. .Leaf Valve O40 x 0.114. .
-
3a503189038 Leaf Valve O36 x 0.254. .Leaf Valve O36 x 0.254. .
-
3b503189037 Leaf Valve O36 x 0.203. .Leaf Valve O36 x 0.203. .
-
3c503189036 Leaf Valve O36 x 0.152. .Leaf Valve O36 x 0.152. .
-
4a503189035 Leaf Valve O30 x 0.305. .Leaf Valve O30 x 0.305. .
-
4b503189034 Leaf Valve O30 x 0.254. .Leaf Valve O30 x 0.254. .
-
4c503189033 Leaf Valve O30 x 0.203. .Leaf Valve O30 x 0.203. .
-
4d503189032 Leaf Valve O30 x 0.152. .Leaf Valve O30 x 0.152. .
-
4e503189031 Leaf Valve O30 x 0.114. .Leaf Valve O30 x 0.114. .
-
5a503189030 Leaf Valve O28 x 0.305. .Leaf Valve O28 x 0.305. .
-
5b503189029 Leaf Valve O28 x 0.254. .Leaf Valve O28 x 0.254. .
-
5c503189028 Leaf Valve O28 x 0.203. .Leaf Valve O28 x 0.203. .
-
5d503189027 Leaf Valve O28 x 0.152. .Leaf Valve O28 x 0.152. .
-
5e503189026 Leaf Valve O28 x 0.114. .Leaf Valve O28 x 0.114. .
-
6a503189025 Leaf Valve O26 x 0.305. .Leaf Valve O26 x 0.305. .
-
6b503189024 Leaf Valve O26 x 0.254. .Leaf Valve O26 x 0.254. .
-
6c503189023 Leaf Valve O26 x 0.203. .Leaf Valve O26 x 0.203. .
-
6D503189022 Leaf Valve O26 x 0.152. .Leaf Valve O26 x 0.152. .
-
6e503189021 Leaf Valve O26 x 0.114. .Leaf Valve O26 x 0.114. .
-
7A503189020 Leaf Valve O24 x 0.305. .Leaf Valve O24 x 0.305. .
-
7b503189019 Leaf Valve O24 x 0.254. .Leaf Valve O24 x 0.254. .
-
7c503189018 Leaf Valve O24 x 0.203. .Leaf Valve O24 x 0.203. .
-
7D503189017 Leaf Valve O24 x 0.152. .Leaf Valve O24 x 0.152. .
-
7E503189016 Leaf Valve O24 x 0.114. .Leaf Valve O24 x 0.114. .
-
8a503189015 Leaf Valve O22 x 0.305. .Leaf Valve O22 x 0.305. .
-
8b503189014 Leaf Valve O22 x 0.254. .Leaf Valve O22 x 0.254. .
-
8c503189013 Leaf Valve O22 x 0.203. .Leaf Valve O22 x 0.203. .
-
8d503189012 Leaf Valve O22 x 0.152. .Leaf Valve O22 x 0.152. .
-
8e503189011 Leaf Valve O22 x 0.114. .Leaf Valve O22 x 0.114. .
-
9503189004 Piston (O0.0). .Piston (O0.0). .
-
503189003 Piston (O1.2). .Piston (O1.2). .
-
503189002 Piston (O1.7). .Piston (O1.7). .
-
10503189307 Valve Cap. .Valve Cap. .
-
11414888314 Air Valve Cap and Ring. .Air Valve Cap and Ring. .
-
12503189008 Free Piston. .Free Piston. .
-
16503189007 O-Ring. .O-Ring. .
-
20503189006 Piston Ring. .Piston Ring. .
